High Density Interconnect (HDI) technology has revolutionized PCB (Printed Circuit Board) design, enabling compact, high-performance electronics. From smartphones and tablets to automotive radar and aerospace systems, HDI PCBs make it possible to fit more functionality into smaller footprints without compromising speed or reliability. Central to this technology are microvias, blind vias, and buried vias, which increase interconnect density and optimize signal performance.
1. Microvias: Enabling Miniaturization

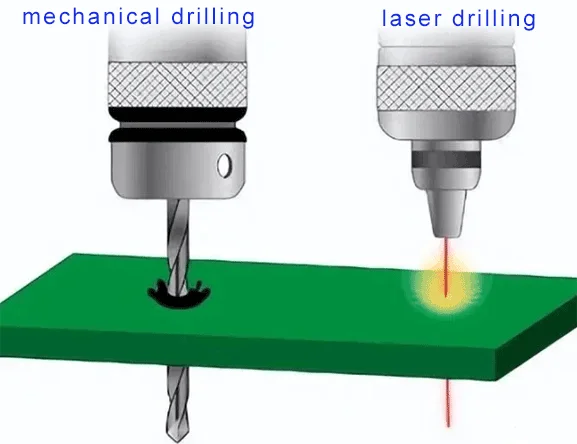

Microvias are laser-drilled holes, typically ≤150 μm in diameter, that connect layers in high-density designs. They are often used in via-in-pad structures, saving space and allowing direct connections under fine-pitch components like BGAs.
Challenges: Maintaining plating reliability in small diameters, preventing cracks under thermal cycling.
Solutions: Laser drilling precision, copper filling processes, and stacked microvia reinforcement.
2. Blind Vias: Optimizing Surface Utilization
Blind vias connect outer layers to one or more inner layers without traversing the entire PCB. This creates extra routing space on outer layers, essential for HDI layouts.
Challenges: Accurate drilling depth control, resin recession, and maintaining via integrity during lamination.
Solutions: Sequential lamination processes, depth-controlled drilling, and X-ray inspection systems.
3. Buried Vias: Maximizing Inner-Layer Flexibility
Buried vias exist entirely within inner layers, invisible from the surface. They allow designers to increase layer interconnections without consuming valuable outer-layer real estate.
Challenges: Alignment accuracy between core laminations, avoiding voids during lamination.
Solutions: Optical alignment systems, vacuum lamination, and optimized press cycles.
4. Signal Integrity and High-Speed Design
With HDI boards used in 5G, RF, and high-speed computing, signal integrity is critical. Uneven resin flow, dielectric inconsistencies, or poorly formed vias can cause impedance mismatch, crosstalk, or data loss.
Challenges: Stable dielectric properties during multilayer lamination.
Solutions: Using low-loss materials (e.g., Rogers, Panasonic Megtron), controlled lamination cycles, and strict impedance modeling.
5. Reliability Under Harsh Conditions
HDI PCBs are often deployed in environments with high heat, humidity, or vibration (e.g., automotive and aerospace). Without robust via structures, risks include via cracking, pad cratering, and CAF growth.
Challenges: Mechanical stress on stacked vias, thermal expansion mismatches.
Solutions: Copper-filled microvias, staggered via designs, and reliability testing (thermal shock, IST).
6. Cost and Yield Considerations
While HDI enables compact, high-performance products, the complexity of sequential lamination, microvia drilling, and fine-line imaging increases costs.
Challenges: Lower yields due to misregistration or via defects.
Solutions: Advanced manufacturing equipment, inline SPC (statistical process control), and digital process monitoring to improve consistency.
HDI technology — built on microvias, blind vias, and buried vias — is the foundation of today’s compact, high-speed electronics. From consumer gadgets to mission-critical aerospace systems, HDI PCBs deliver miniaturization, signal integrity, and long-term reliability.
