In the fast-evolving world of electronics, performance and reliability are paramount. High-power applications, such as power supplies, electric vehicles, industrial machinery, and RF amplifiers, place extreme demands on printed circuit boards (PCBs). Traditional PCBs often struggle to cope with these requirements, which is where heavy copper PCBs come into play.
What Are Heavy Copper PCBs?

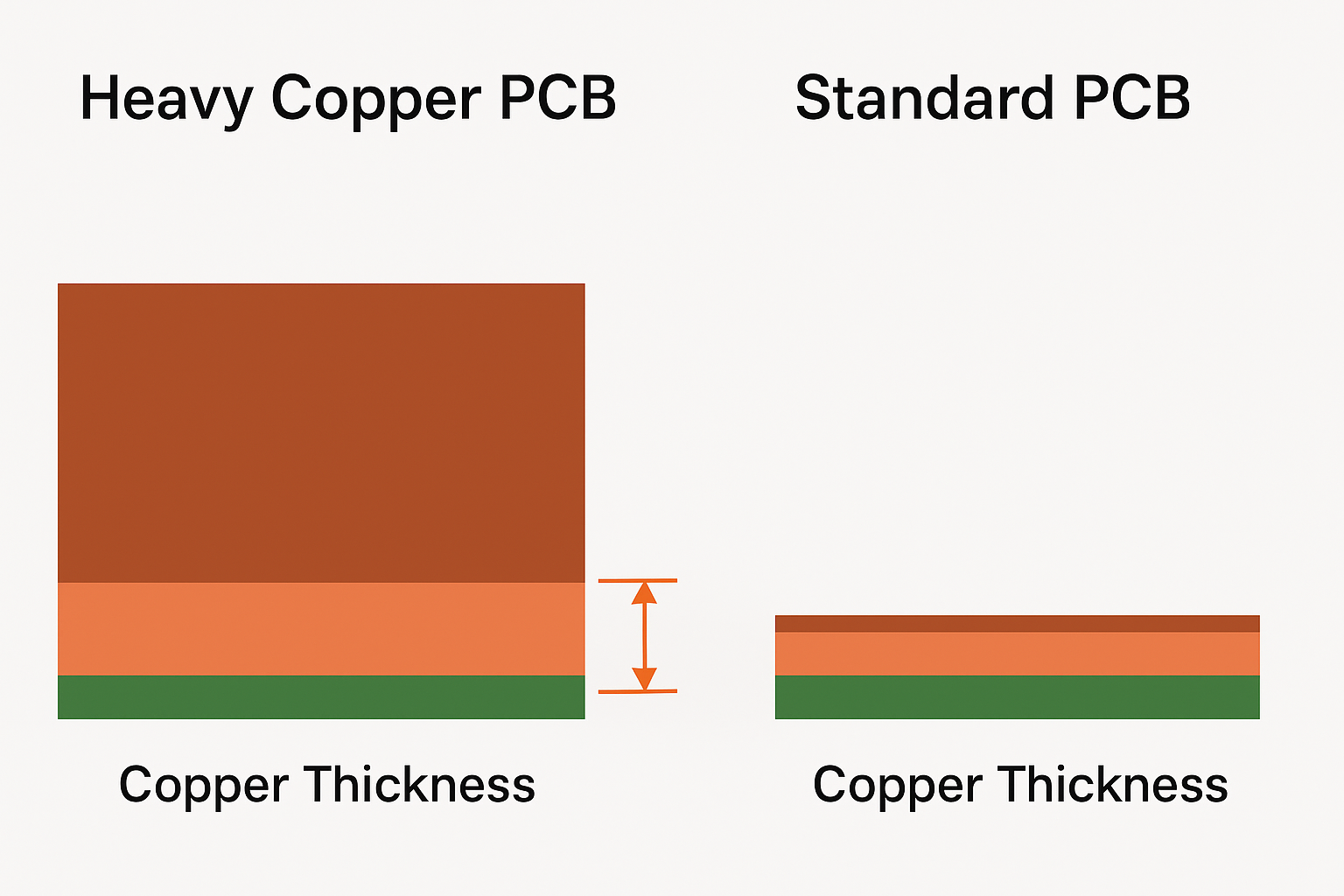

Heavy copper PCBs are specialized circuit boards that use significantly thicker copper layers than standard PCBs. While typical PCBs have copper thicknesses ranging from 1 oz to 2 oz per square foot (35–70 µm), heavy copper PCBs can go up to 10 oz (≈350 µm) or even higher. This extra copper provides superior current-carrying capacity, enhanced heat dissipation, and improved mechanical strength.
Key Advantages for High-Power Applications
1. Enhanced Current Carrying Capacity
Heavy copper layers allow PCBs to carry large currents without excessive heating. This is crucial in applications like power converters, motor drivers, or high-current LED systems, where overheating could compromise performance or even damage the device.
2. Superior Thermal Management
High-power circuits generate significant heat. Heavy copper PCBs efficiently dissipate this heat across the board, reducing thermal hotspots and maintaining stable operation. This thermal advantage also increases the lifespan of components.
3. Improved Mechanical Strength
Thicker copper not only supports higher currents but also increases the structural integrity of the PCB. This is especially beneficial in industrial applications where boards are exposed to vibration or mechanical stress.
4. Reduced Voltage Drop
High currents on thin copper can cause significant voltage drops due to resistance. Heavy copper PCBs minimize this effect, ensuring consistent power delivery across the circuit and improving overall efficiency.
Applications That Benefit Most
Heavy copper PCBs are indispensable in industries where reliability and performance are non-negotiable, including:
Power Electronics: Converters, inverters, UPS systems.
Automotive & EVs: Motor controllers, battery management systems, charging stations.
Telecommunications: RF power amplifiers, 5G infrastructure.
Industrial Machinery: High-current controllers, robotics, welding equipment.
Manufacturing Considerations
Producing heavy copper PCBs requires specialized techniques. Standard etching methods must be adjusted to maintain precision in thicker copper layers. Additionally, thermal management and plating quality must meet high standards to avoid delamination or warping. At Kingda, our advanced manufacturing processes ensure consistent quality, even for multi-layer heavy copper boards.
For any high-power electronic application, relying on standard PCBs can lead to performance bottlenecks and reliability issues. Heavy copper PCBs provide the robust solution needed to handle higher currents, dissipate heat efficiently, and maintain structural integrity under stress. By choosing heavy copper boards, engineers ensure their designs meet the demands of today’s power-intensive electronics.
