In the world of modern electronics manufacturing, the quality of every solder joint is directly linked to the performance and lifespan of the final product. Especially for printed circuit board assemblies (PCBA) with increasingly precise components and complex layouts, the soldering process has gone far beyond a simple “connection” and has become a precise science. In this field, 12-zone reflow soldering technology is a key path to achieving the highest quality.
Today, we will take a closer look at why the number of temperature zones is so important and how a 12-zone reflow oven ensures superior reliability for your product.

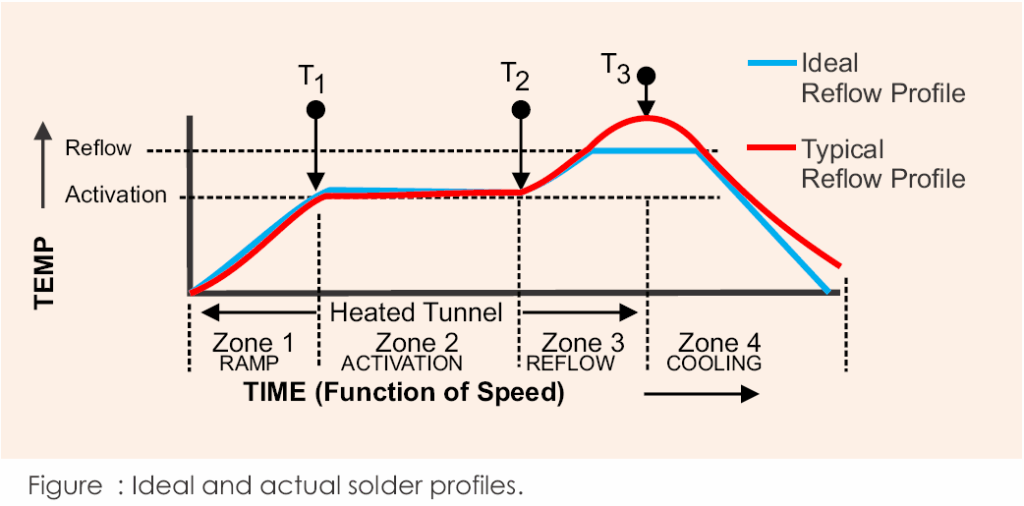

1.Understanding the Concept: What Is a “Temperature Profile”?
2. The Advantage of 12 Zones: From “Good Enough” to “Maximum Precision”
Since the thermal profile is so important, the number of “zones” becomes a decisive factor. A temperature zone is an independently and precisely controlled heating or cooling unit.
Having 12 zones, compared with typical 6- or 8-zone ovens, represents a major leap forward:
Smoother and more accurate thermal profile: 12 independent control points mean we can make every “turn” in the thermal profile exceptionally smooth and precise. This minimizes thermal shock for components and is especially important for sensitive, high-value chips such as BGAs and CSPs.
Ideal for complex and large-scale PCBAs: For larger boards with thick copper layers or uneven component distribution (e.g., server motherboards or power supply boards), heat transfer is inherently inconsistent. The extra-long heating path in a 12-zone oven ensures every corner of the board receives sufficient and uniform heat.
Higher throughput and stability: A longer oven and more precise zone separation allow us to increase conveyor speed while still guaranteeing the perfect thermal profile. This means we can achieve higher production efficiency without compromising quality.
Mastering lead-free and special processes: Lead-free solders have higher melting points and narrower process windows, requiring stricter temperature control. The ultra-high precision offered by a 12-zone reflow oven is a powerful guarantee of successfully achieving high-quality lead-free soldering.
3. Kingda’s Commitment: Investing in Advanced Equipment for Your Product’s Reliability
At Kingda, we know that soldering is the “heart” of PCBA manufacturing. We invest in industry-leading 12-zone nitrogen reflow ovens not only to increase efficiency but also to uphold our commitment to quality for our clients.
By introducing a nitrogen environment during soldering, we can prevent metal oxidation at high temperatures. This further improves solder wetting and joint appearance while minimizing defects.
Trust Your Complex Projects to a Reliable Manufacturing Expert
Are you developing a high-end product with exceptionally high demands for long-term reliability? Whether it’s a complex medical motherboard, automotive electronics that must withstand harsh conditions, or an aerospace module requiring zero failures, the foundation of its reliability lies in every perfect solder joint.
At Kingda, we leverage advanced equipment (such as 12-zone reflow ovens), strict quality systems (including IATF 16949 and ISO 13485), and a team of experienced engineers to ensure that your project is transformed from blueprint to reality at the highest quality standards.
