What Is Box Build Assembly?

Box Build Assembly refers to the complete process of integrating a product’s electronic, mechanical, electrical, and structural components into a fully functional unit.

Unlike conventional PCB Assembly, which primarily focuses on mounting and soldering electronic components onto a printed circuit board, box build assembly covers the entire product-level manufacturing process.

A typical box build may include:

PCB and electronic components
Enclosure or housing
Cable assemblies and wire harnesses
Mechanical components
Pneumatic or electromechanical components
Connectors and interconnection systems
Displays and user interfaces
Power supplies and other functional modules

The completed product is then assembled, inspected and tested to verify that the entire system performs according to its design requirements.

According to industry practice, box-build manufacturing can cover the process from product design and material procurement through PCB assembly, wire and cable harnessing, mechanical assembly, inspection and final testing.

Box Build Assembly vs. PCB Assembly

The main difference between PCB assembly and box build assembly is the level of integration.

PCB Assembly generally involves mounting electronic components onto a bare PCB using SMT, THT, or other assembly methods. The resulting PCBA is an electronic subassembly rather than a complete finished product.

By contrast, Box Build Assembly integrates the PCBA with the enclosure, cables, connectors, mechanical parts, displays, power systems and other assemblies.

Feature	PCB Assembly	Box Build Assembly
PCB fabrication	Usually involved	May be included
Electronic component assembly	Yes	Yes
SMT/THT assembly	Yes	Usually included
Cable assembly	Limited	Yes
Wire harness	Limited	Yes
Mechanical assembly	Limited	Yes
Enclosure installation	No	Yes
System integration	Limited	Yes
Functional testing	PCBA-level	Product-level
Final packaging	Usually limited	Yes

Therefore, box build assembly can be considered a higher-level manufacturing and system integration service built around PCB assembly.

Key Components of Box Build Assembly

A complete box-build product can contain many different components. The exact configuration depends on the product architecture and application.

PCB and Electronic Components

The PCB Assembly is often the electronic core of the finished product. It may contain ICs, resistors, capacitors, connectors, sensors, power components and other electronic devices.

Depending on the design, the PCBA may use:

Surface-mount technology (SMT)
Through-hole technology (THT)
Mixed-technology assembly
Manual soldering
Automated soldering

The assembled PCB is then installed into the product enclosure and connected to other subsystems.

Enclosure

The enclosure provides mechanical protection for the internal electronics.

Depending on the application, enclosures can be manufactured from:

Plastic
Aluminum
Steel
Stainless steel
Die-cast materials
Other engineered materials

The enclosure must provide sufficient space for the PCB, cables, connectors, mechanical components and thermal-management structures.

Cable Assemblies and Wire Harnesses

Cable assemblies and wire harnesses establish electrical connections between different components and modules.

A box-build system may require:

Power cables
Signal cables
Data cables
Custom wire harnesses
Coaxial cables
Ribbon cables
Internal interconnects

Cable routing should be considered early in the design process because poor routing can cause mechanical interference, signal integrity problems, difficult assembly and maintenance issues.

Mechanical Components

Mechanical components can include brackets, screws, mounting plates, heat sinks, fans, hinges, shields and other structural parts.

Proper mechanical tolerances are particularly important because the components must fit together accurately while maintaining the required electrical and mechanical performance.

User Interfaces and Displays

Some finished products include displays, buttons, touchscreens, indicators, switches or other human-machine interface components.

These components must be correctly positioned within the enclosure and electrically connected to the main PCB or control system.

Complete Box Build Assembly Process

A successful Box Build Assembly Process requires coordination between engineering, procurement, manufacturing, quality control and logistics teams.

The major stages are described below.

1. Design and Manufacturing Planning

The process begins with product requirements and engineering documentation.

At this stage, the manufacturer and customer should define:

Product functions
Mechanical dimensions
Electrical requirements
PCB configuration
Component specifications
Enclosure requirements
Cable and harness requirements
Testing requirements
Regulatory requirements
Production quantities

Prototype development is also important before mass production. A prototype allows engineers to identify mechanical interference, assembly problems, thermal issues, cable-routing problems and other design weaknesses.

2. Design for Manufacturing (DFM)

Design for Manufacturing (DFM) is one of the most important considerations in box build assembly.

DFM evaluates whether the product can be manufactured consistently, efficiently and economically.

Important DFM considerations include:

Simplify the Design

Reducing unnecessary components and using standardized parts can simplify assembly and reduce manufacturing complexity.

Subassemblies can also be designed so that they can be tested independently before being integrated into the final product.

Optimize Mechanical Tolerances

Mechanical components should have appropriate dimensional tolerances.

Poor tolerance control can result in:

Assembly interference
Misalignment
Excessive gaps
Difficult installation
Mechanical stress

Consider Cable Routing

Cable paths should be defined during the design stage rather than after the enclosure has been manufactured.

Engineers should consider bend radius, connector access, cable length, interference and serviceability.

Consider Testing

Test points, connectors and access points should be designed into the product so that technicians can perform functional and electrical testing efficiently.

DFM is widely used in box-build manufacturing to evaluate dimensions, tolerances, materials, tooling and manufacturing risks before production begins.

3. Component Procurement and Inventory Management

After the design has been finalized, the required materials and components must be sourced.

Typical procurement items include:

PCBs
Electronic components
Enclosures
Connectors
Cables
Wire harnesses
Mechanical hardware
Displays
Power supplies
Labels and packaging materials

Effective Supply Chain Management is essential because component shortages can delay the entire production schedule.

Important considerations include:

Supplier qualification
Component availability
Lead time
Minimum order quantity (MOQ)
Component lifecycle
Alternative components
Incoming quality control
Inventory levels

For long-term products, manufacturers should also consider component obsolescence and establish approved alternatives where appropriate.

4. PCB Assembly

The next stage is PCB Assembly, which converts the bare PCB into a functional electronic subassembly.

Surface Mount Technology (SMT)

SMT assembly generally includes:

Solder paste printing
Solder paste inspection
Pick-and-place
Reflow soldering
AOI inspection
X-ray inspection when required
Electrical testing

SMT is widely used because it supports high component density and automated production.

Through-Hole Technology (THT)

Through-Hole PCB Assembly is used for components that require mechanical reinforcement or cannot be mounted using SMT.

The process generally includes:

Component insertion
Manual or automated placement
Wave soldering or selective soldering
Inspection
Electrical testing

Many products use mixed technology, combining SMT and THT components on the same PCBA.

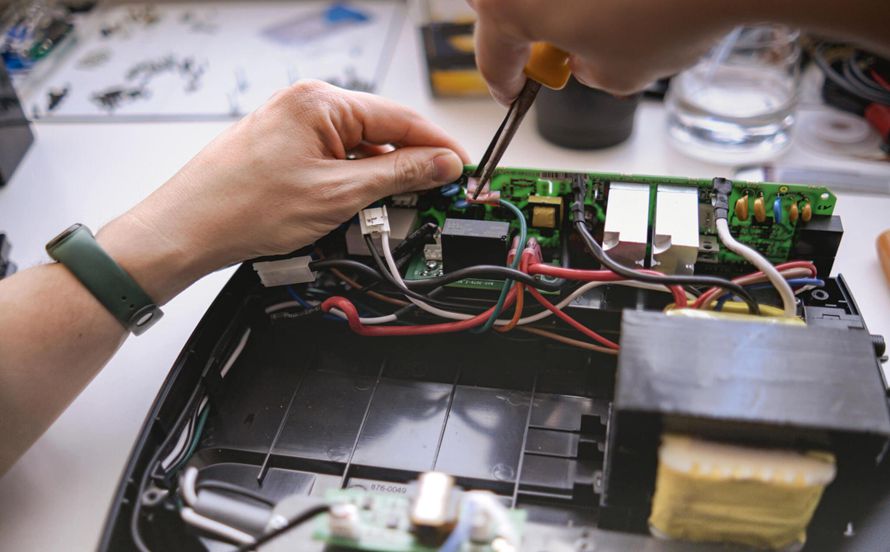

5. System Integration

After the PCBA has been completed and tested, it can be integrated into the enclosure.

This stage can include:

PCB mounting
Screw installation
Bracket installation
Heat sink installation
Connector installation
Cable routing
Wire harness installation
Mechanical subassembly
Display installation
Fan or thermal-management installation

The PCB may be secured using screws, standoffs, brackets or other mechanical fastening methods.

Cable and Wire Harness Integration

Cable and harness installation is a particularly important part of box-build manufacturing.

Engineers need to ensure that:

Cables have sufficient length
Connectors are correctly oriented
Wires are not excessively bent
Harnesses do not interfere with moving parts
High-voltage and low-voltage wiring are appropriately separated
Signal cables are routed appropriately
Cables are securely fixed

Proper cable management improves both reliability and serviceability.

Mechanical Assembly

Mechanical components are then installed and secured.

Depending on the product, this may involve:

Screws
Clips
Brackets
Adhesives
Gaskets
Shields
Heat sinks
Fans
Mounting plates

Geometric Dimensioning and Tolerancing (GD&T) can be used to control critical mechanical dimensions and ensure proper component fit.

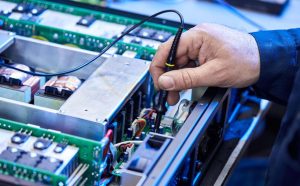

6. Testing and Quality Assurance

Testing is one of the most important stages of Box Build Assembly because the final product must be evaluated as a complete system rather than as an individual PCB.

Functional Testing

Functional testing verifies that the completed product performs its intended functions.

For example, testing may verify:

Power input
Communication interfaces
Sensors
Displays
Buttons
Motors
Relays
Data interfaces
Control functions

Power-On Testing

Power-on testing verifies that the assembled product can start correctly and reach its required operating state.

It can help identify:

Incorrect wiring
Power supply problems
Short circuits
Incorrect component installation
Firmware or configuration issues

Performance Testing

Performance testing evaluates whether the product meets defined electrical and functional specifications under specified operating conditions.

Compliance Testing

Depending on the product and target market, additional testing may be required for safety, electromagnetic compatibility (EMC), environmental performance or other regulatory requirements.

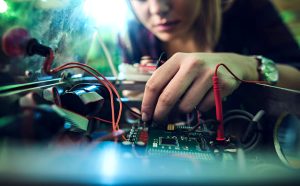

Visual Inspection

Visual inspection can identify:

Missing components
Incorrect components
Damaged parts
Loose screws
Cable-routing problems
Soldering defects
Labeling errors
Mechanical damage

Automated Optical Inspection

AOI (Automated Optical Inspection) uses cameras and software to identify defects on electronic assemblies.

For complex products, AOI can be combined with other inspection and testing methods to provide more comprehensive quality control.

7. Final Assembly, Labeling and Packaging

After the product passes all required tests, the final assembly stage is completed.

Typical activities include:

Installing covers
Final tightening
Installing labels
Applying serial numbers
Applying barcodes
Firmware configuration
Final visual inspection
Packaging
Documentation preparation

Protective packaging may include:

Foam
Bubble wrap
Anti-static bags
Custom protective inserts
Corrugated packaging

The packaging method should be selected according to product size, weight, sensitivity and transportation requirements.

Common Challenges in Box Build Assembly

Although box build assembly provides a complete manufacturing solution, several challenges need to be addressed.

Component Availability

Electronic components may have long lead times or become obsolete. Early procurement planning and qualified alternative components can reduce supply-chain risks.

Mechanical and Electrical Integration

The PCB, enclosure, cable harness and mechanical components must fit together correctly. Even a small dimensional error can cause assembly problems.

Cable Management

Improper cable routing can result in excessive bending, connector stress, electromagnetic interference or difficulty during maintenance.

Thermal Management

High-power electronic components can generate considerable heat. Heat sinks, thermal interfaces, fans or other cooling methods may therefore be required.

Testing Complexity

A complete product contains more subsystems than a standalone PCBA. Therefore, testing must cover both individual functions and overall system performance.

Traceability

For products requiring high reliability, manufacturers should maintain traceability for components, assemblies, production batches and test results. Serial numbers, barcodes and manufacturing records can help identify the source of problems when failures occur.

Advantages of Box Build Assembly

Working with a capable box-build manufacturer can provide several manufacturing benefits.

One-Stop Manufacturing

Instead of coordinating multiple suppliers for PCB assembly, cables, mechanical components and final assembly, customers can consolidate these processes with one manufacturing partner.

Reduced Supply Chain Complexity

A single supplier can coordinate procurement, inventory, assembly and testing, reducing the number of communication channels required.

Better System-Level Quality Control

When the same manufacturer handles multiple assembly stages, quality information can be integrated across the production process.

Faster Product Integration

Integrated manufacturing can reduce delays between PCB assembly, mechanical assembly, system integration and final testing.

Improved Product Traceability

A structured manufacturing system can maintain records for components, assemblies, testing and final products.

How to Choose a Box Build Assembly Manufacturer

When selecting a Box Build Assembly Manufacturer, companies should evaluate more than PCB assembly capability.

Important criteria include:

PCB assembly capabilities
THT and SMT production
Cable and wire harness assembly
Mechanical assembly capabilities
Component sourcing
DFM and DFA support
Functional testing
Quality management system
Supply chain management
Production traceability
Prototype and small-batch capabilities
Final packaging and logistics

A manufacturer capable of managing PCB assembly, mechanical integration, cable harnesses, testing and final packaging can provide a more complete manufacturing workflow.

Why Choose Kingda for Box Build Assembly?

Kingda can provide an integrated manufacturing approach covering PCB assembly and product-level integration.

The service can be structured around the requirements of the customer’s product, including:

PCB Assembly
SMT assembly
Through-hole assembly
Component sourcing
Cable and wire harness assembly
Mechanical assembly
Box build integration
Functional testing
Quality inspection
Final packaging

For products requiring customized manufacturing, early communication between the customer and manufacturer is particularly important. Engineering documentation, BOMs, Gerber files, mechanical drawings, assembly instructions and test specifications should be reviewed before production begins.

This approach helps identify manufacturing risks early and supports a more stable transition from prototype to production.

Conclusion

Box Build Assembly is much more than simply placing a PCB inside an enclosure. It is a complete product-level manufacturing process that integrates electronics, mechanical components, cables, wire harnesses, enclosures and testing into a finished product.

A typical Box Build Assembly Process includes design and DFM, component procurement, PCB assembly, system integration, cable and mechanical assembly, testing, quality assurance and final packaging.

For OEMs and electronics companies, effective DFM, reliable supply-chain management, appropriate testing and strong manufacturing traceability are essential to achieving consistent product quality.

By selecting an experienced manufacturing partner such as Kingda, customers can integrate multiple manufacturing stages into a coordinated workflow and simplify the transition from PCB assembly to complete electronic product manufacturing.
