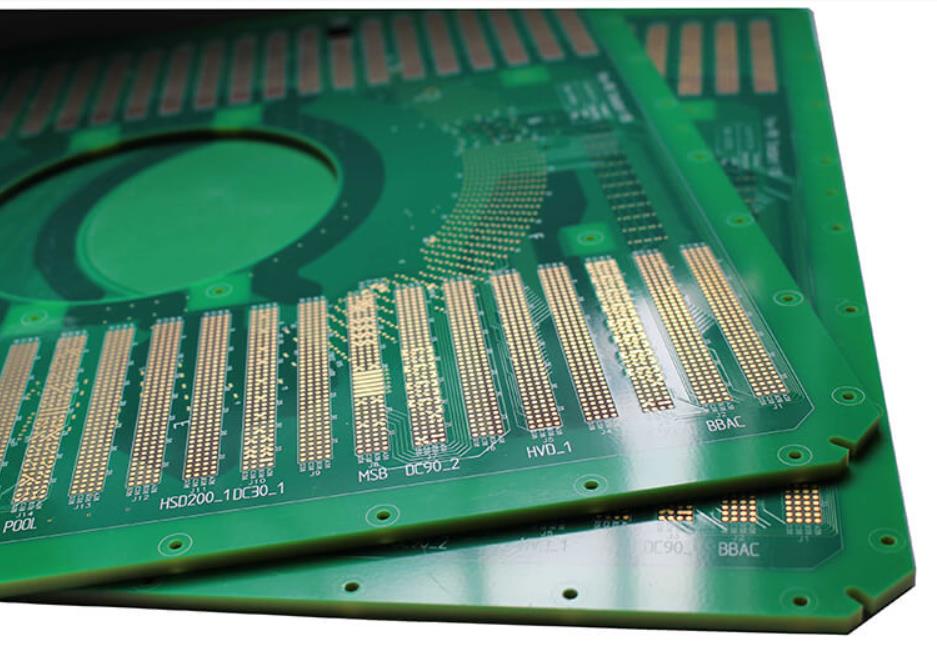

High-Mix Low-Volume PCBA Manufacturing Guide

High-mix low-volume PCBA manufacturing is the production of many different board designs in small quantities. It is common in industrial controls, medical devices, prototyping, communications, and custom electronics, where customers need flexibility rather than millions of identical boards. While this model supports a wide product range, it creates challenges in scheduling, quality control, material management, and cost. A factory that can handle high-mix production efficiently must use flexible equipment, clear processes, and disciplined changeover methods.

This guide explains the main challenges of small-batch, high-mix PCBA and the practical practices that help manufacturers overcome them in a real production environment.

Scheduling becomes even more difficult when materials for one order arrive late. The factory must decide whether to delay that order or run a different board and risk the original customer’s delivery.

Challenge: Mixed Production Scheduling

When many designs share the same lines, the factory must decide which orders to build first. Every changeover stops production while feeders are changed, programs are loaded, and first articles are checked.

Poor scheduling can create long queues, delay urgent orders, and reduce the amount of time the line spends actually placing components.

MES and ERP systems can help by showing current capacity, material availability, and order priority.

Changeover time should be measured as part of production performance. If it takes two hours for every new job, the actual capacity of the line is much lower than the nominal placement speed.

Challenge: Frequent Changeover

Changeover is one of the largest hidden costs in high-mix production. Each time the product changes, the factory must switch stencils, feeders, nozzles, programs, and inspection settings.

Standardizing changeover procedures reduces setup time and errors. Grouping similar products that can share a setup also improves efficiency.

Feeder trolleys and offline program preparation allow the next job to be ready before the current one finishes.

Lead time should be quoted based on the current production plan. A factory that already has many high-mix orders may not be able to offer the same delivery as an empty line.

Capacity buffers can help high-mix factories respond to urgent orders without delaying every existing job. The factory should reserve a small portion of line time for emergency work when possible.

Challenge: Unstable Delivery Time

Small batches may be delayed by material shortages, machine failures, or the need to run urgent orders. Delivery dates that were estimated at order entry may no longer be realistic when the job reaches the line.

The factory should maintain realistic capacity and update customers when schedules change. Buffer stock for common components reduces the impact of shortages.

Clear communication about expected delivery time is better than promising a date that cannot be met.

Rework in small batches can be costly because there are fewer boards to absorb the loss. A single failed lot can represent a large portion of the order and cause a significant delay.

If a setup error is found, the affected boards should be quarantined and reviewed before they are reworked or scrapped. The root cause should be corrected so the same setup mistake is not repeated on the next order.

Challenge: Quality During Setup

Most defects in high-mix production appear during setup or the first boards of a new job. If the wrong feeder is loaded or the program is outdated, every board in the run may be wrong.

First article inspection is essential after each changeover. The quality team should verify component values, orientation, placement, and solder quality before the line is released.

In-process AOI and SPI continue to protect quality during the run.

Customers should provide clear specifications for each product. If the requirement is not documented, the quality team may use the wrong acceptance criteria and reject or accept boards incorrectly.

Challenge: Different Quality Standards

Each product may have different requirements for appearance, test coverage, or reliability. A factory that treats every board the same may over-inspect one product and under-inspect another.

The control plan should be customized for each order while using common inspection methods where possible.

Quality data should be organized so the factory can compare yield by product and identify recurring issues.

For high-mix products with small lots, the factory should also consider functional testing every board when the cost is reasonable. This provides better confidence than relying on a small sample.

When full testing is not practical, the factory should use a sampling plan that matches the small lot size and the risk of the product application.

Challenge: Sampling Limitations

In small-batch production, sampling a few boards from a lot of ten is not the same as sampling from a lot of ten thousand. A defect in one board may represent a large percentage of the lot.

For many high-mix products, full electrical testing or functional testing is more appropriate than AQL sampling alone.

Automated inspection can test every board at low cost when the process is repeatable.

Component kitting should be completed before the line is ready for changeover. If the kit is incomplete, the production team may discover a missing part only after the setup has started.

Challenge: Material Complexity

High-mix production uses many different components across different designs. The warehouse must maintain small quantities of many parts without mixing them.

Reel labeling, barcode scanning, and location control reduce the risk of using the wrong component.

The factory should also monitor component age and moisture sensitivity so old material is not used in a new product.

The factory should also review component shelf life and storage conditions for solder paste and moisture-sensitive devices. A wrong batch of old solder paste can create defects across several different products.

Challenge: Inventory and Stockouts

Ordering too much inventory for many different parts ties up cash, while ordering too little creates stockouts and delays. Accurate BOM and forecast data are needed to balance these risks.

Consignment and supplier-managed inventory can help for common components, while special parts may be ordered only when the customer confirms a purchase order.

The factory should distinguish between parts that are used across many products and parts that are unique to one design.

Equipment flexibility can be improved with modular feeders, adjustable conveyors, and multi-purpose test fixtures. When a factory invests in tools that support many products, each small order becomes easier to run.

Challenge: Process and Equipment Compatibility

Different board types may need different processes, from standard reflow to selective soldering or BGA assembly. The factory must have equipment that can support the full range of its product mix.

Tooling such as stencils, pallets, and fixtures should be stored so they can be found quickly for repeat orders.

Equipment capability should be documented so the factory can confirm it can produce a new design before accepting the order.

Team meetings before each setup can reduce communication errors. The supervisor can explain the order priority, material issues, and quality requirements so every operator starts the job with the same information.

Operator feedback should be used to improve changeover procedures. The people who load feeders and change programs often know the fastest and safest way to complete the setup.

Challenge: Workforce and Training

High-mix production requires operators who can change setups, inspect different boards, and respond to unfamiliar problems. Training should include changeover procedures, IPC inspection, material handling, and machine operation.

Cross-training allows the factory to move operators to the bottleneck station when needed.

Clear work instructions reduce the chance that a new operator will make a costly mistake.

Small-batch unit costs are naturally higher than volume production, but a flexible factory can reduce the difference by minimizing changeover waste, material scrap, and inspection rework.

Challenge: Cost Control

Small batches carry a larger share of setup, programming, inspection, and freight cost per board. The customer should understand that unit price is higher than for volume production.

Cost can be reduced by grouping similar boards, reducing changeover time, and using standard materials where possible.

The total cost should include the value of flexibility and faster delivery.

Solutions Used by Flexible PCBA Factories

Successful high-mix factories use flexible SMT lines, fast changeover procedures, automated inspection, MES tracking, and first article verification. They also qualify suppliers and maintain material traceability.

A factory that combines SMT PCB assembly, PCB manufacturing, component procurement, and PCBA testing can reduce handoffs and keep mixed-model programs under one quality system.

Data collection is also important for high-mix improvement. The factory should track changeover time, yield, and delivery by product so it can identify which designs are more difficult to build.

Working with customers who provide complete files and realistic delivery windows also helps. The factory can plan better when it does not need to interrupt the line for incomplete information.

The best high-mix partners treat every small order with the same engineering attention as a large program. This consistency builds trust and makes future orders easier to plan.

Conclusion

High-mix low-volume PCBA manufacturing is challenging but manageable when production is planned carefully. Scheduling, changeover, quality, material, equipment, and workforce controls must all work together.

By choosing a flexible PCBA partner, companies can obtain small batches of high-quality boards without sacrificing delivery or reliability.
