Home Service Robots: Why a Million Units Changes the PCB Requirement

On 5 September 2026, Ecovacs presented a portfolio spanning vacuum, window cleaning, lawn mowing, and pool robots at IFA 2026. The company reported that its Winbot window-cleaning robot holds more than 65 percent of the global market and exceeded one million units sold in a single year in 2025. In the second quarter of 2026, overseas revenue accounted for 51.0 percent of the total, exceeding domestic revenue for the first time. Overseas shipments of home robots grew more than 80 percent year on year in the first half.

Home service robots have moved past being a segment of consumer electronics confined to one market. They are now a volume category sold across many countries, and that shift changes what the printed circuit board supply chain has to deliver.

What a Household Robot Actually Contains

The electronics in a service robot are more complex than the product’s appearance suggests. A vacuum, window cleaner, or mower typically requires a main controller, motor drive circuitry, multiple sensors, wireless communication, battery management, and navigation or mapping electronics. Several boards work together to perform environment recognition, path planning, and motion control.

At the prototype stage, the requirement is simply that each board runs reliably. At million-unit volumes, the question becomes different: whether board dimensions, plated copper, plating quality, impedance, component placement, and solder joint condition stay consistent from batch to batch. A small manufacturing deviation that is invisible in a sample scales into a field service problem across a large installed base.

The window-cleaning robot illustrates the point. Being the global leader for three consecutive years with more than 65 percent share indicates a genuinely scaled market rather than a niche product experiment. Once a category reaches that level, the manufacturing model shifts from development-oriented to cost, yield, and consistency-oriented, and suppliers are evaluated on repeatability rather than on their ability to solve a novel problem.

Why the Board Mix Diverges by Product

Ecovacs now covers floor cleaning, vertical surfaces, gardens, and pools. Each environment imposes different mechanical conditions and therefore different board requirements, so the electronic content does not simply multiply; it diversifies.

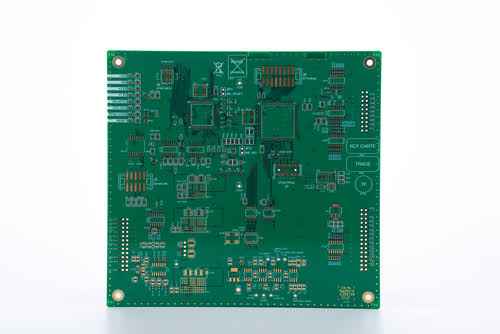

Navigation and vision modules. These integrate a processor, memory, and multiple sensors in a confined space, which favours HDI for routing density around high pin count devices. As vision-based navigation becomes more common, the data rates involved also rise, making impedance control and reference plane continuity relevant in a product category that until recently was purely low-speed.

Motor drive and power boards. These handle continuous current and frequent start-stop cycles, so copper thickness, plated barrel quality, and thermal design matter more than routing density. A drive board designed for fine lines rather than current will overheat or suffer voltage drop; one designed purely for current will not accommodate the control and communication circuitry alongside it.

Sensor and actuator interconnects. Connections to mechanisms that move are better served by FPC than by wire harnesses, because flex reduces volume, simplifies assembly, and eliminates the connector and wire routing labour that dominates the cost of small electromechanical products.

Battery management. Charging and discharging cycles, thermal monitoring, and protection functions mean BMS boards must combine measurement accuracy with current handling, and they must remain consistent across units because a battery management fault is a safety issue rather than a performance one.

When a manufacturer expands from a single floor-cleaning product to vertical, garden, and underwater applications, its supplier must handle high-density control boards, power boards, and flexible interconnects in the same programme rather than repeating one standard board type. That raises the requirement for multi-process, multi-board-type coordination, which is a different capability from capacity in any single board family. Confirming that range in advance is the purpose of a capability review, and it is more informative than a quotation based on a single reference design.

Million Units Turns Manufacturing Into a Consistency Problem

Scaling a home robot to a million units a year changes the economics of every manufacturing variable.

Consider a defect rate of a fraction of a percent. In a product built in thousands, that produces a manageable number of returns. In a product built in millions, it produces thousands of service events, each requiring diagnosis, and in many cases the replacement of a subassembly that is not economically repairable at component level. The cost of the defect is not the board; it is the service network, the shipping, the customer experience, and the brand impact.

The manufacturing response is process control rather than inspection. Copper plating thickness varies across a panel and between panels, changing both current capacity and etched geometry. Lamination parameters shift dielectric thickness, which moves impedance on high-speed nets. Solder paste volume varies with stencil wear and printing conditions, altering joint resistance and thermal path. Reflow profile differs between machines and panel positions, affecting joint microstructure and long-term fatigue performance.

None of these variations is visible to a functional test at the individual unit level. They appear as statistical shifts across a population. Managing them requires capability monitoring on critical characteristics, incoming material verification, and control of the assembly process parameters that determine joint quality. Inspection then verifies the result rather than substituting for control, with paste inspection, optical inspection, and X-ray covering failure modes that the others cannot see, and traceability retaining the records needed to bound any anomaly. Those disciplines belong in a documented quality management system and in a defined test strategy rather than being improvised per project.

Overseas Share Above Half: Quality and Compliance Together

With more than half of revenue now coming from overseas markets and shipments growing fast, the supply chain faces two requirements simultaneously.

The first is compliance. Different markets impose different expectations on product safety, environmental substance control, materials, and traceability. Products must satisfy these requirements not once, but for every shipment, over the life of the product. That means material declarations for RoHS and REACH must be current, halogen-free claims must be supported by measurement where relevant, and the manufacturer must be able to demonstrate that the product shipped matches the product that was approved.

The second is reliability under real operating conditions. Service robots are long-running electromechanical products. Motor vibration, charge and discharge cycling, humidity variation, and repeated start-stop operation all continuously load solder joints, connectors, and the boards themselves. A window-cleaning robot operating on glass, a mower working outdoors, and a pool cleaner in a wet environment each present a different stress profile, and each will find a different weak point in the design.

The two requirements intersect at the manufacturing record. A supplier that documents which material lot was used, which process parameters applied, and which inspection results were obtained creates the evidence base that supports both the compliance argument and the reliability investigation. When a field issue appears, that record determines whether the response is a targeted containment or a broad recall.

Long-Term Electromechanical Reliability

The failure modes that matter most in service robots are wear-out mechanisms rather than random defects, because the products run for years and cycle constantly.

Solder joints accumulate fatigue under thermal and mechanical cycling, and the joints most at risk are those under larger packages where the expansion mismatch between component and board creates the greatest strain. Connectors experience wear from vibration and insertion. Flexible circuits in moving joints accumulate bend cycles. Plated through holes in power boards experience thermal expansion with each operating cycle, and a thin barrel section is where a crack will begin.

Because these mechanisms progress slowly, the production response is not simply better inspection. It is better joint quality from the start: correct paste volume, correct reflow profile, correct barrel plating, and correct material selection for the expected duty cycle. That is why manufacturing discipline and reliability engineering are the same conversation in this product category, and why the supply chain question for a robot manufacturer is not whether a supplier can build the board, but whether the supplier can build a population of boards whose worst units still meet the requirement. That capability is what turns a robot programme from a product launch into an installed base that performs, and it depends on board fabrication and flex assembly being controlled to the same standard rather than treated as separate purchases.

Frequently Asked Questions

Why does million-unit scale change PCB requirements? Because variation that can be screened out in small batches becomes a significant service cost at scale. Process control replaces inspection as the primary means of ensuring quality.

Do different robot types need different boards? Yes. Navigation modules need high-density interconnect, motor drives need thick copper and thermal design, sensor and actuator links suit flexible circuits, and battery management combines measurement accuracy with current handling.

Why does outdoor and wet-environment use matter? Each environment creates a different stress profile, affecting protection, material selection and the reliability of joints and connectors over years of operation.

What inspection is needed for this class of product? Paste inspection, optical inspection, X-ray for hidden joints, and electrical test, each covering different failure modes, supported by traceability that links results to individual units.

What matters most when revenue comes largely from overseas? Current material compliance documentation and manufacturing records that show shipped product matches the approved design, combined with reliability engineering for long-term operation.
