HASL Surface Finish: How Hot Air Solder Levelling Works

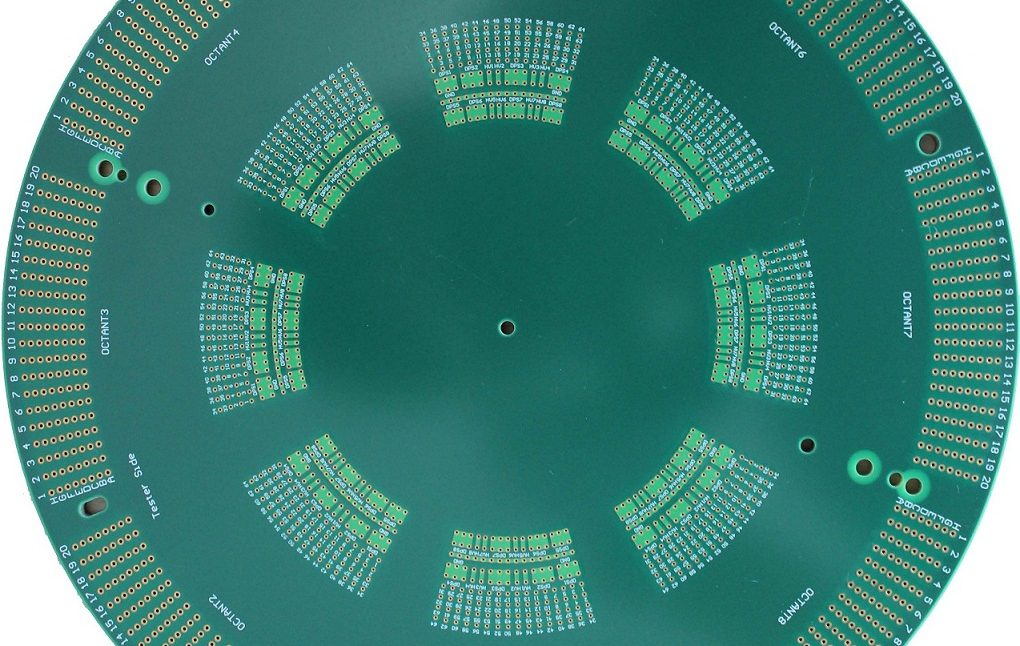

HASL, or hot air solder levelling, is the most widely used PCB surface finish and the least glamorous. The board is dipped into molten solder and then passed between hot air knives that blow the excess off, leaving a thin coating over the exposed copper.

It has been in use for decades because it is inexpensive, durable and forgiving. Its limitations are equally well known: an uneven surface, a thermal shock to the board, and a flatness that becomes a problem as component pitch shrinks.

The Process Step by Step

Before levelling, the panel is cleaned and a flux is applied to the exposed copper. The panel then enters the molten solder, where the copper is wetted and the hole barrels are filled, and leaves through the air knives.

The air knives strip off the excess solder and leave a coating of a few microns over the pads and inside the holes. Timing between the solder bath and the knives controls the thickness, and the panel is then cooled and washed.

Leaded and Lead-Free Alloys

Traditional HASL uses a tin-lead alloy that melts around 183 degrees Celsius. It produces a bright, uniform coating and wets easily, and it is still used in products that are exempt from lead-free requirements.

Lead-free HASL uses a tin-copper or similar alloy with a melting point around 227 degrees Celsius. The higher temperature subjects the laminate to more thermal shock, and the coating is duller and slightly rougher, which is normal rather than a defect.

For lead-free assembly, a lead-free finish avoids contamination of the solder joint and keeps the process compliant. The choice should match the assembly alloy rather than be decided independently.

Thickness Control and Coverage

HASL thickness varies across the panel. Pads at the edge behave differently from pads in the centre, and small pads retain less solder than large ones. The typical result is a coating between one and forty microns, with most pads well inside that band.

Through-hole barrels benefit from the process, because the solder fills and coats the hole wall. That makes HASL a natural fit for boards that will be wave soldered or hand assembled.

Coverage is reliable on exposed copper but cannot be controlled on pad edges where the mask meets the metal. Those edges are where the finish is thinnest, and they are also where corrosion first appears during long storage.

Flatness and Its Consequences

The surface left by HASL is not flat. That was acceptable when the finest pitch on a board was 1.27 mm, but at 0.5 mm pitch and below, an uneven finish affects paste release and component seating.

The consequence is variable paste transfer and occasional opens on fine-pitch pads, particularly on the small pads of a quad flat package. Where flatness matters, an immersion or electroless finish is the better choice.

Flatness also matters for press-fit connectors, which rely on a controlled hole diameter and wall condition. The solder inside a HASL barrel changes the effective diameter slightly, and a press-fit design must account for that.

Thermal Shock and Board Limits

The panel enters a molten bath, and even with preheating the thermal shock is significant. Thick boards, high layer counts and laminates with a modest glass transition temperature are the most affected, and repeated processing at high temperature can cause measling or delamination.

Design rules follow: specify HASL on boards that can take the thermal excursion, and choose a different finish for very thick or very high layer count designs where the risk is greater.

Solderability and Shelf Life

Solderability is one of the strongest arguments for HASL. The coating is metallic solder rather than a thin chemical layer, and it remains wettable through handling and storage better than most alternatives.

Shelf life is correspondingly long, and boards can often be assembled after months in storage without a reflow-related wetting problem. Where the storage environment is humid or sulfurous, the finish will still degrade, and packaging matters as much as the finish.

Where Other Finishes Are Better

Electroless nickel immersion gold, immersion silver, immersion tin and hard gold all exist for reasons HASL cannot address. Fine-pitch assembly, press-fit holes, long shelf life requirements and gold-finger contacts each favour a different finish.

Cost is rarely the deciding factor at that point. The finish is a small fraction of the assembly cost, and a finish that causes a single yield loss on the line costs more than the difference between the cheapest and the most expensive option.

Design Considerations Around the Finish

HASL affects the assembly process rather than the circuit, but the effect is real. Paste volume on a domed pad differs from a flat one, and stencil aperture design may need to compensate for the additional solder already present.

It also affects hand assembly and rework, where the existing solder on the pad melts and mixes with the newly added solder. That is an advantage for through-hole work and a minor complication for fine-pitch rework.

Quality Checks on a HASL Line

Thickness and coverage are checked visually and by measurement on coupons. A dull, uneven surface on lead-free HASL is normal, but an area of exposed copper or a non-wetted pad indicates a flux or contamination problem rather than a finish problem.

Where the surface looks matt and granular across the whole panel, the alloy temperature or the cooling rate may be out of range. Those conditions affect solderability even though the coating is present.

Specifying HASL on a Drawing

The drawing should state the alloy, the finish type, the maximum thickness where it matters and the standard the supplier should follow. It should also state whether any area must be free of finish, such as a gold finger or a wire bonding pad.

Where the board will be assembled with a lead-free process, state that explicitly so the alloy is chosen accordingly. Leaving the alloy unspecified invites a mismatch between the finish and the paste, and the result is a wetting problem that appears on the line rather than at the fabricator.

Further reading: electroplating additives, PCB manufacturing processes, and lead-free versus leaded solder.

Finish choice is often driven by habit rather than by requirement, and reviewing it against the actual pitch, storage period and assembly method is one of the simplest cost decisions on a board.

Alternatives and Selection Criteria

Selection should follow four questions: what is the finest pitch, how long will the boards be stored, will there be press-fit or gold-finger contacts, and what thermal excursion can the laminate accept. The answers point to a finish without further negotiation.

Where the answers conflict, the finish that protects assembly yield usually wins. A board that costs slightly more per panel and saves one rework incident on the line is the cheaper option at any volume.

FAQ

Is lead-free HASL worse than leaded HASL? It is less bright and requires a higher process temperature, but it is functionally adequate for most designs and necessary for lead-free compliance.

Can HASL be used on fine-pitch boards? It can, but the uneven surface reduces paste transfer consistency. Where the pitch is below about 0.5 mm, an immersion or electroless finish usually produces better assembly yield.

Does HASL protect holes for press-fit connectors? It coats the barrel, which changes the effective diameter slightly. Press-fit designs must account for the coating or specify a finish that leaves the barrel bare.
