Industrial Control PCB Layout: An Outsourcing Review Checklist

Industrial control boards are not difficult only because they have many layers. The workload is driven by device density, the number of power domains, the number and type of interfaces, signal speed, mechanical space, isolation requirements, thermal management and the environment the product will live in. A board with eight layers can be harder to lay out than one with sixteen.

That is why industrial control PCB layout outsourcing should start with a discussion about constraints rather than a quotation based on layer count. The constraint list is also what the layout team needs in order to raise its own questions, and the quality of those questions is a good predictor of the result.

Confirm the Stackup Before Routing

There is no single best stackup. The right one depends on the board thickness, the layer count, the copper weight, the impedance targets, the material and the capability of the factory that will build it.

The failure mode is well known: the layout is completed, the board is then sent for fabrication, and the fabricator reports that the impedance cannot be met at the required trace width, that the dielectric combination is unavailable, or that the routing leaves no room for the required drill structure. Each of those findings forces a layout change at the least convenient moment.

Confirming the stackup before routing avoids all three. Where impedance control is required, the fabricator should calculate the trace geometry from the actual material and process, and the designer should adjust the routing to those numbers rather than reusing parameters from another project. Bringing in a partner that also performs PCB manufacturing makes that conversation short, because the manufacturing answer is available during the design rather than after it.

Signal and Power Integrity Decisions

Signal integrity work on a control board is usually about a handful of nets rather than the whole design: a high-speed interface, a clock, a differential pair, an analog acquisition path. Those nets should be identified at the start, given their own net classes, and reviewed against their reference planes.

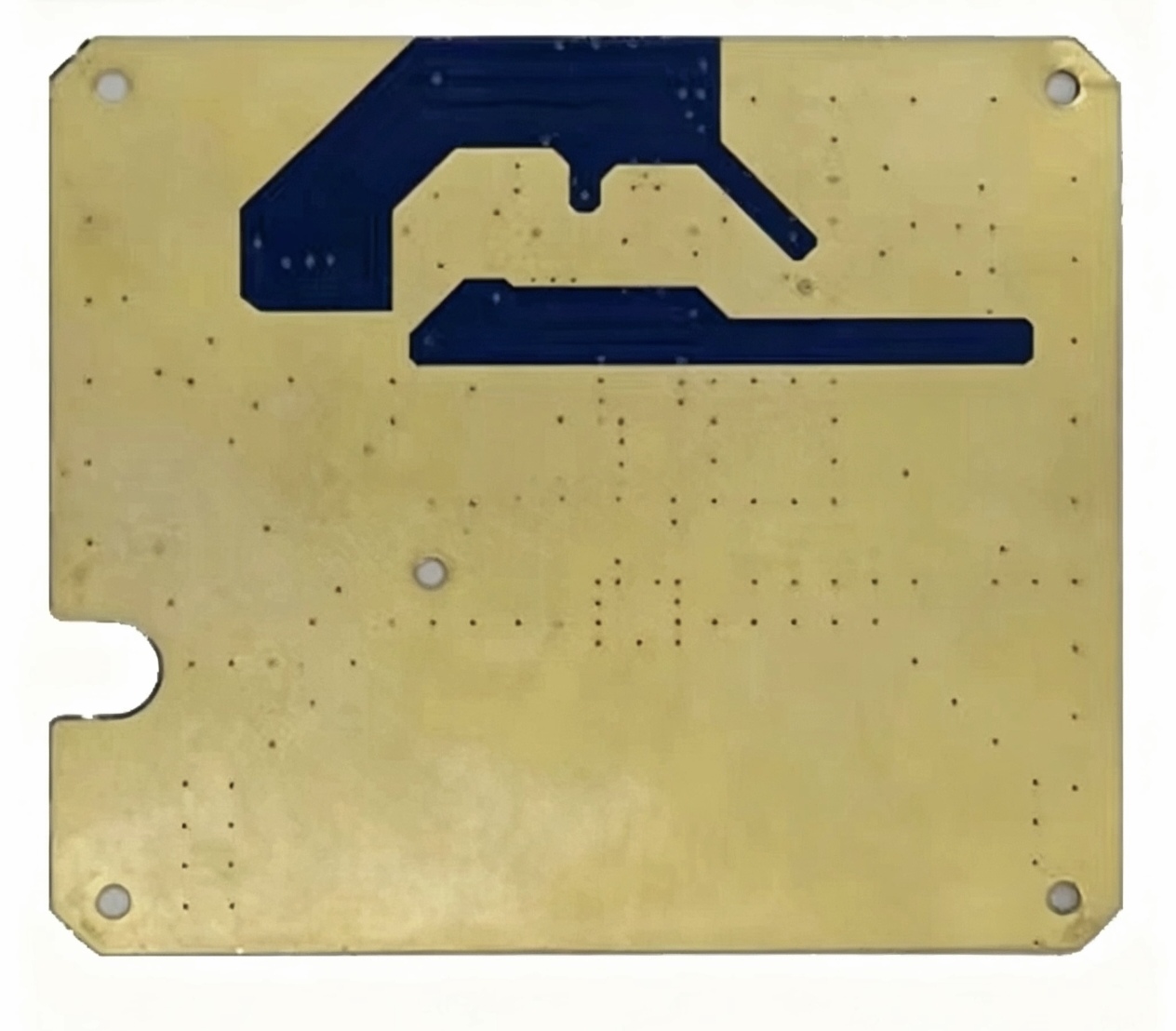

Power integrity is often the more difficult half. Multiple supplies, switching regulators, isolated domains and high-current loads all interact, and the placement of decoupling, the shape of the planes and the return path for switching currents decide whether the design meets its noise target or merely passes a functional test.

The return path deserves particular attention where analog and digital sections share a plane. A measurement that references a ground that also carries a motor or relay current will drift, and no amount of filtering afterwards will fix a layout that created the problem.

Isolation and Creepage

Industrial products frequently need galvanic isolation between field wiring and control electronics, between high and low voltage domains, or between communication segments. Isolation and creepage requirements are layout constraints, not schematic notes.

They determine the minimum distance across surfaces and through the board, which in turn affects connector placement, the shape of the isolation barrier, and the space that has to be left clear of copper, solder mask and mounting hardware. Cut-outs and slots are sometimes required to reach the specified distance.

These rules have to be established before placement, because an isolation boundary decided after the fact usually costs a new layout. They also have to be verifiable, which means the design should carry the calculation, not only the drawing.

Deliverables Beyond the Gerber Files

Gerber data is a production input, not a design deliverable. A company that owns the product needs the material required to maintain it: editable source files, the library and footprints used, the stackup and impedance specification, the drill data, the assembly documentation and the record of design changes.

The ownership of the library is worth agreeing explicitly. A supplier that uses its own house library produces a board that can only be revised comfortably by the same supplier, which is a reasonable arrangement if it is a decision and an expensive one if it is an accident.

Where several people touch the project, the change mechanism also has to be defined: how a schematic change is communicated, who confirms a mechanical update, and whether a component substitution requires a re-check of the layout. Without that, the production file and the design source drift apart.

Which Model Fits the Project

• Mature data, a straightforward board and internal reviewers: an experienced independent engineer may be sufficient.
• High speed, high density or complex interfaces: a dedicated layout team with a formal review process.
• Prototype and assembly immediately after design: a partner that can continue into prototype PCB assembly.
• Long-lived product families: a team that will maintain the source and library files over successive revisions.

Comparing those models means comparing scope, deliverables, revision handling and schedule, not only the total price. The same requirement list should be sent to every candidate so that the answers are comparable.

The Design Review Checklist

A layout of this kind benefits from a written list that is reviewed before routing is released, and again before the fabrication package is generated. The items below are the ones that most often change the outcome.

• Stackup, materials and impedance confirmed with the fabricator before routing.
• Net classes assigned for power, high speed, analog and isolated signals.
• Isolation and creepage distances calculated and reflected in placement.
• Thermal paths for regulators and power devices checked against the enclosure.
• Test points and programming access reachable after assembly.
• Panel, fiducial and tooling requirements agreed with the assembly process.
• Deliverable list including source files, library, stackup and change records.

Working With the Layout Team

The working relationship matters as much as the review list. A layout provider that raises questions early is doing useful work even when the questions are inconvenient, because a clarification that arrives in week one costs a message and the same clarification in week three costs a reroute.

It helps to nominate one person on each side who owns the answers. On the customer side that person should be able to speak for the schematic, the mechanics and the interface definitions, or at least know where each answer lives. On the supplier side, one engineer should own the design file and the change log.

The design review checklist should then be a live document rather than a formality. Items are added as the project raises them, each one is closed with a decision rather than a discussion, and the closed list is part of the delivery. That practice is what makes a second revision faster than the first.

Finally, agree how the design will be transferred. The source files, the library, the stackup record and the review list should be delivered together at the end of the project, in a form the customer can archive and reopen, because a product that cannot be revised is a product that cannot be maintained.

FAQ

Does a higher layer count always mean a harder layout? No. Density, supply complexity, isolation and interface count matter more than the number of layers.

Who should calculate the impedance? The fabricator calculates from the actual material and process, and the designer applies the resulting geometry. Reusing another project values is a common source of respins.

Should the layout team also do the assembly? Not necessarily, but continuity helps. The panel, the test points and the assembly data are all affected by layout decisions.

What is the most common late change on control boards? A component substitution or an interface requirement that was not confirmed before placement.

Summary

Industrial control boards are won on constraints. Confirm the stackup and the manufacturing window before routing, define signal and power integrity nets and their references, settle isolation and creepage before placement, and agree the deliverable list so the product can be maintained after the project ends. A partner whose quality management process records those decisions turns a single successful layout into a product platform that can be revised.
