Layout Shortcuts and Automation That Speed Up PCB Design

Layout is a long series of small, repeated operations, and the time a design takes is largely the time those operations consume. Two engineers with the same circuit and the same deadline will finish days apart, and the difference is almost never talent: it is how much of the work each of them has removed. The methods that remove work are not exotic. They are layout shortcuts, saved configurations, scripting and reuse, and they repay the hour they cost within the first week of a project.

Keyboard First

The mouse is the slowest part of a layout session, because every action that requires pointing at a menu costs a trip across the screen and back. The remedy is keyboard mapping: take the twenty commands that are used every hour, and assign each of them a single key that can be reached with the left hand while the right hand stays on the mouse.

What belongs in that set varies with the work, but the same candidates appear on most lists. Layer selection for the two or three layers that carry most of the routing. Begin and end a track, add a via, and switch the active layer while routing. Toggle the selection filter between nets, tracks and components. Move the origin, close the current panel and re-open the last used view. Copy and paste with the reference point. Once those are on single keys, the number of mouse trips per hour drops by an order of magnitude.

The mapping is personal, and it should be portable. Keep the configuration file in the same place the project data is kept, so that a new machine is productive in an hour rather than in a day, and so that a colleague can borrow the arrangement that already works.

Selection, Filters and Grid

Half the time lost in a layout is spent selecting the wrong thing. A selection filter that limits the active object types to what is relevant at that moment makes every later click correct, and switching the filter with a short key combination keeps it usable.

The same idea applies to the grid settings. Set the grid to match the pitch of the components in the design, so that pads land on the correct positions without adjustment, and use a fine grid only where a fine grid is needed. A design that switches between many grids accumulates small misalignments that are invisible until the copper pour is generated over them.

Templates for the Rules, Not Just the Drawing

Most of the setup work at the start of a project is design rules: clearances, track widths, via sizes, differential pair definitions, net classes, solder mask expansion, silkscreen rules. Those are a property of the fabricator and of the assembly process rather than of the individual circuit, so they can be captured once in a template and applied to every new design.

The template should carry the stack-up as well, at least for the constructions used most often, and it should carry the default layer names. A project that starts from the template begins with the rules already correct, which means the design rule check fails for real reasons rather than for missing setup.

Reuse Blocks

A repeated circuit should be designed once and reused. A reuse block is a fragment of a design -placement and routing together, with its rules- that can be instantiated in a later project. A power supply topology, a memory interface, a sensor front end and a communications module are all candidates, because they are the parts of a design that change least between projects.

The advantage is not only speed. A block that has already been built and tested carries its own verification with it, so the second design inherits a known-good structure rather than a new one. The caution is that a block carries assumptions: the ground arrangement it expects, the layer it was routed on, and the thermal environment it was designed for. Reusing a block in a context that violates one of those assumptions reintroduces the risk that the original design removed.

For boards that repeat a channel several times, the same principle applies within one design, and the block becomes a multi-channel template that is instantiated once per channel.

Scripting the Repetitive Work

Scripting is where the largest gains are, because it removes work rather than speeding it up.

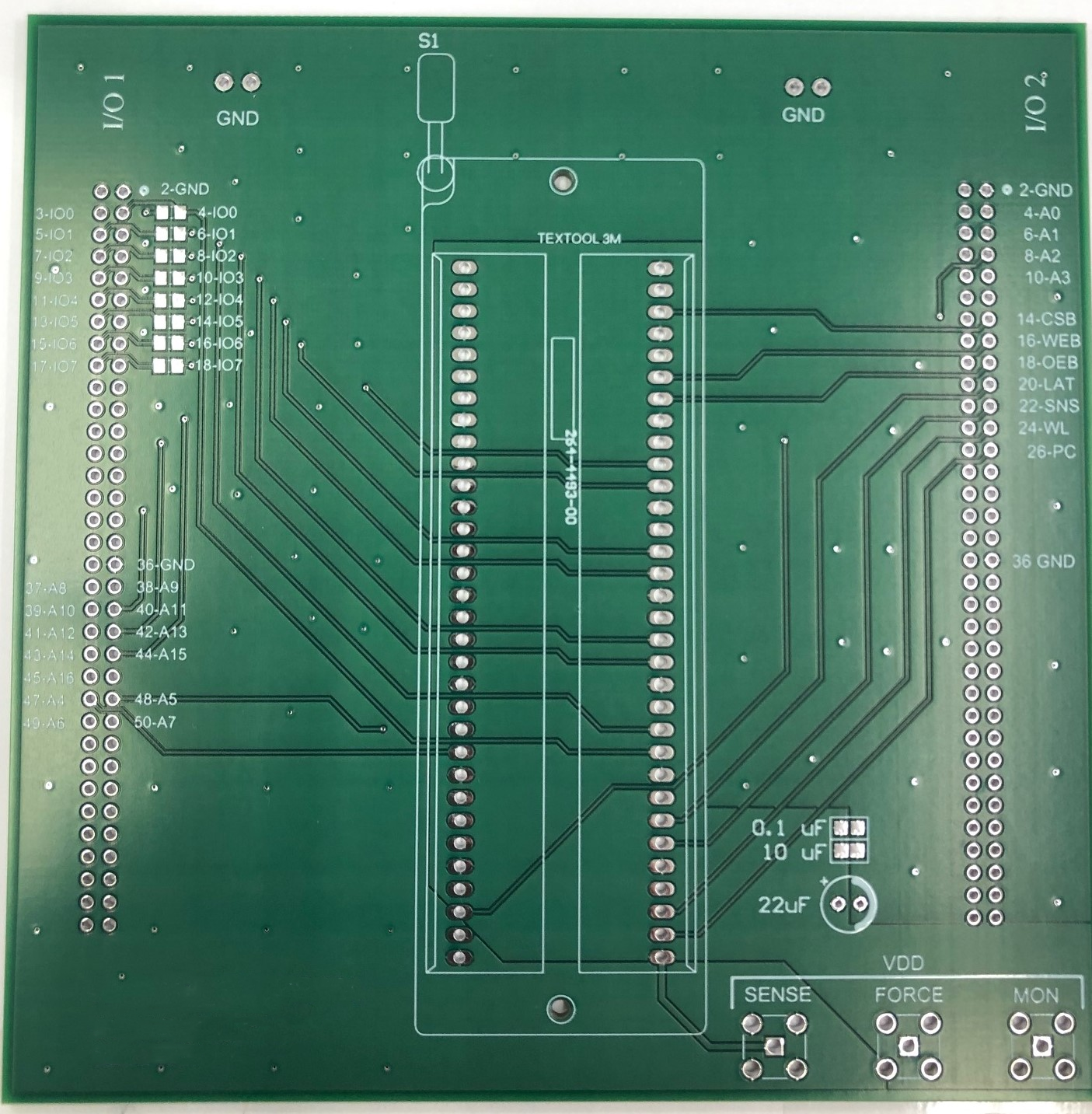

The tasks worth scripting are the ones that are identical every time: placing a field of stitching vias along a boundary or under a shield outline, generating an array of silkscreen marks, renumbering reference designators in a defined order, exporting a report of track lengths by net class, and running the connectivity and design rule checks as a single batch.

The last of those is the most valuable. A scripted check run after every significant editing session produces the same list in the same format each time, which makes a regression visible: a rule that passed an hour ago and fails now is a change that was just made. Our design review uses scripted reports for exactly that reason, because a report that can be regenerated is a report that can be compared.

Libraries and Components

Time spent on libraries is time saved twice, once in the layout and once in the assembly data. A component that is verified once and carries a correct footprint, a correct pin numbering, a 3D model and a purchased part number removes the most common class of layout error, which is a part that is correct in the schematic and wrong on the board.

Keeping the library under the same revision control as the designs means a change to a footprint can be traced to the boards that used it, which is the only way to answer the question of whether a defect is present in a product that shipped two years ago. Our component procurement process keeps the approved parts list aligned with the library for that reason.

What Not to Automate

Anything that changes connectivity should be done by hand and checked. Automatic netlist edits, automated net renaming and automatic pin swapping all have legitimate uses and all can introduce a connection that no one intended, and the error is invisible in the drawing. The rule of thumb is that automation is for geometry, repetition and reporting, and never for the electrical intent.

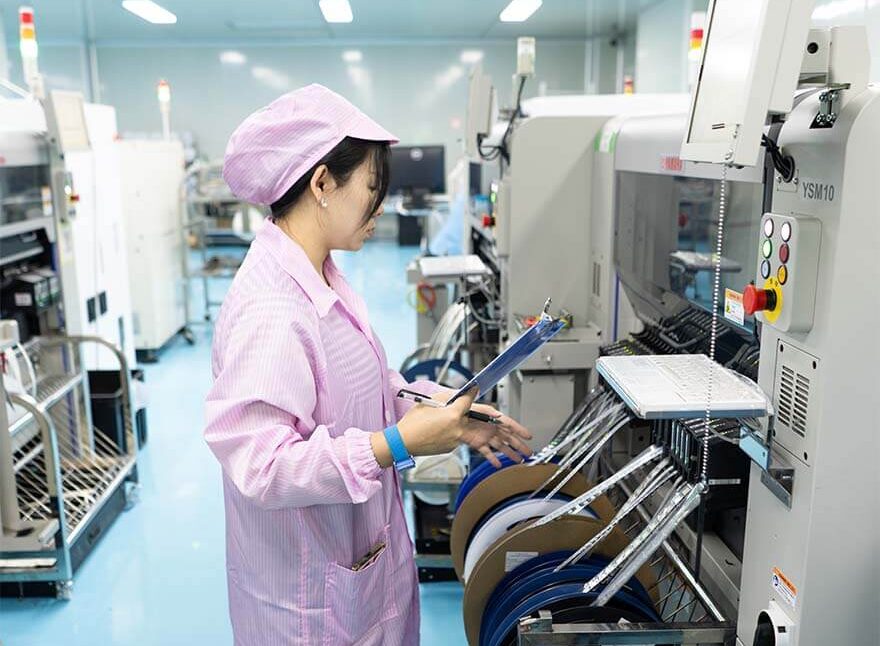

The same caution applies to panels and to any operation that copies a design: a copied block carries whatever was wrong with the original, and a defect that is present in one channel becomes present in eight. The check that catches it is a comparison against the source, which is why the report generation described above is worth more than the time it takes to write. For boards that go into volume production, the same discipline keeps the released data and the assembly data consistent, which is where our high volume PCB assembly flow begins.

FAQ

How long does it take to learn a new shortcut set? A week for the twenty most used keys, if the old habits are abandoned deliberately rather than gradually.

Is scripting worth it for a one-off board? Rarely for the board itself, and often for the report generation, which is reused on every later project.

What is the biggest single gain? Reusing a verified block, because it removes both the design time and the verification time.
