A capacitor is a passive electronic component that stores electrical energy in an electric field. It typically consists of two conductive electrodes separated by an insulating dielectric material. When a voltage is applied across the electrodes, electrical charge accumulates on them, creating an electric field within the dielectric.

In modern electronic products, PCB Capacitors are essential components for power distribution, signal coupling, filtering, noise suppression, transient response, and energy storage. Selecting the appropriate capacitor and placing it correctly on a PCB can significantly affect circuit stability, power integrity, and Signal Integrity.

The unit of capacitance is the farad (F), although practical PCB components are commonly specified in microfarads (µF), nanofarads (nF), or picofarads (pF). In circuit schematics, capacitance is normally represented by the letter C.

What Is a PCB Capacitor?

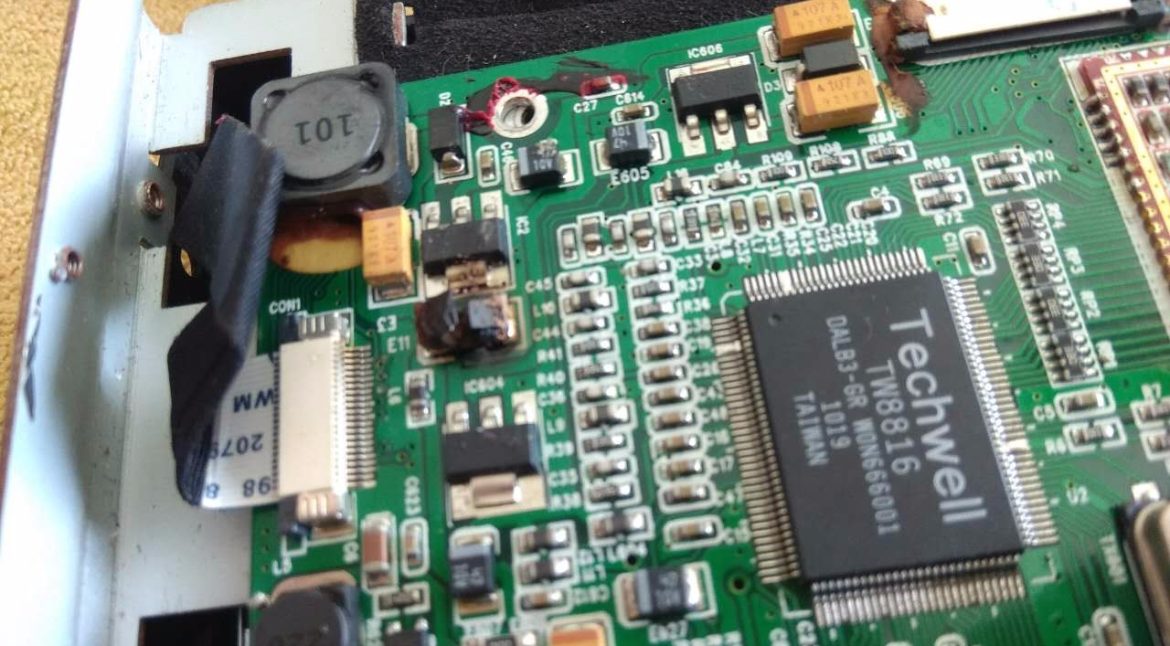

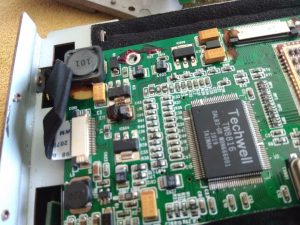

A PCB Capacitor is a capacitor mounted on a printed circuit board to perform a specific electrical function within the circuit.

The simplest capacitor consists of two conductive plates separated by a dielectric. The dielectric can be ceramic, polymer, oxide, film, air, or another insulating material.

When voltage is applied, the capacitor stores charge according to:

Q = CV

where:

• Q is the stored charge
• C is the capacitance
• V is the voltage across the capacitor

The energy stored in an ideal capacitor can be expressed as:

E = 1/2 CV²

A capacitor is not an ideal open circuit under all conditions. In DC circuits, it may initially conduct current while charging, but after reaching a steady-state voltage, the current approaches zero. With an AC or changing signal, the capacitor can continuously charge and discharge, allowing it to interact with the signal according to frequency.

Structure of a PCB Capacitor

The basic structure of a capacitor includes three main elements:

1. Conductive electrodes
   These electrodes store opposite electrical charges when voltage is applied.
2. Dielectric material
   The dielectric separates the electrodes and determines many of the capacitor’s electrical characteristics.
3. External terminals
   The terminals connect the capacitor to the PCB circuit.

Different dielectric materials produce different electrical characteristics. For example, ceramic capacitors generally provide low parasitic inductance and are widely used for high-frequency decoupling, while electrolytic capacitors can provide relatively high capacitance for bulk energy storage.

The dielectric also determines the maximum voltage that the capacitor can withstand. If the applied voltage exceeds the dielectric’s breakdown strength, dielectric breakdown may occur, potentially causing leakage current, permanent damage, or failure.

How PCB Capacitors Work

The operating principle of a capacitor is based on electrostatic energy storage.

When a voltage source is connected to a capacitor, electrons accumulate on one electrode while the other electrode becomes relatively electron-deficient. The dielectric prevents direct current from flowing between the electrodes while allowing an electric field to develop between them.

The charging behavior of a simple RC circuit can be expressed as:

Vc(t) = V(1 − e⁻ᵗ/ᴿᶜ)

where R is resistance and C is capacitance.

The time constant is:

τ = RC

After approximately one time constant, the capacitor reaches about 63% of its final voltage during charging. During discharge, the voltage decreases exponentially according to the circuit conditions.

This behavior explains why capacitors are useful in timing circuits, filtering, transient suppression, coupling, and energy storage.



Capacitive Reactance and Frequency

One of the most important properties of a capacitor in PCB Design is its frequency-dependent impedance.

The ideal capacitive reactance is:

Xc = 1 / (2πfC)

where:

• Xc is capacitive reactance
• f is frequency
• C is capacitance

As frequency increases, capacitive reactance decreases. This is why a capacitor can provide an effective path for high-frequency noise to the appropriate return path when it is correctly selected and placed.

However, real capacitors also contain equivalent series resistance (ESR) and equivalent series inductance (ESL). At sufficiently high frequencies, ESL can become dominant, meaning that simply increasing capacitance does not necessarily improve high-frequency performance.

This is an important consideration when designing high-speed and high-frequency PCBs.

Main Types of PCB Capacitors

There are several ways to classify capacitors, including dielectric material, construction, application, and electrical characteristics.

Common Capacitor Types used in PCB design include the following.

Ceramic Capacitors

Multilayer ceramic capacitors (MLCCs) are among the most widely used capacitors in modern electronics.

Their advantages include:

• Small package size
• Low ESR
• Low ESL
• Good high-frequency performance
• Wide range of capacitance values
• Compatibility with automated SMT assembly

MLCCs are commonly used for IC power decoupling, high-frequency noise suppression, signal filtering, and general-purpose applications.

Aluminum Electrolytic Capacitors

Aluminum electrolytic capacitors provide relatively high capacitance and are frequently used for bulk energy storage and low-frequency power filtering.

They are useful in applications such as:

• Power supply smoothing
• DC-link filtering
• Bulk decoupling
• Low-frequency ripple reduction

Because electrolytic capacitors are polarized, their polarity must be correctly considered during PCB placement and assembly.

Tantalum Capacitors

Tantalum capacitors offer relatively high capacitance in compact packages and can provide stable characteristics in various power applications.

However, their voltage derating, surge-current capability, temperature behavior, and reliability requirements should be considered carefully during component selection.

Film Capacitors

Film capacitors use polymer film as the dielectric and are known for good stability and low dielectric losses in appropriate applications.

They are commonly used in:

• Precision circuits
• Filtering
• Power electronics
• Timing circuits
• AC applications

Their larger physical size can make them less suitable for highly miniaturized PCB designs.

Classification by Function

In practical PCB applications, capacitors are often classified according to their circuit function rather than only their construction.

1. Decoupling Capacitors

Decoupling Capacitors are primarily used to reduce the effect of rapid current transients generated by ICs and other active devices.

When an IC suddenly changes its current demand, the local capacitor can temporarily supply or absorb current, reducing voltage fluctuations at the device power pins.

For effective decoupling, placement is often as important as capacitance value. The capacitor should generally be placed close to the relevant power and return connections to minimize the parasitic inductance of the current loop.

2. Bypass Capacitors

Bypass capacitors provide a low-impedance path for unwanted high-frequency components of a power or signal environment.

In many PCB applications, bypass and decoupling capacitors overlap in practical terminology. Their effectiveness depends on the capacitor’s impedance characteristics, the circuit topology, and the physical current path.

3. Coupling Capacitors

Coupling capacitors transfer AC signal components between circuit stages while blocking the DC bias component.

They are frequently used between amplifier stages, analog signal paths, and other circuits where the DC operating points of two stages need to remain independent.

The appropriate capacitance depends on the source and load impedances and the lowest frequency that must be passed.

4. Filtering Capacitors

Capacitors are widely used in PCB Filtering applications.

Depending on the circuit configuration, they can suppress unwanted frequency components or reduce power-supply ripple and noise.

For example, a capacitor combined with a resistor can form a low-pass or high-pass filter. Capacitors may also be combined with inductors to form LC filters.

Filter performance depends on component values, source/load impedance, parasitics, layout, and the target frequency range.

5. Energy Storage

Capacitors can provide short-term energy during transient load changes.

In power electronics, bulk capacitors help support the power rail when the load changes rapidly or when the upstream supply cannot immediately respond to the transient.

However, capacitors should not be considered a replacement for an appropriately designed power supply or voltage regulator. Their role is to complement the overall power-delivery network.

Importance of Capacitor Selection in PCB Design

Correct capacitor selection requires more than choosing a capacitance value.

Important parameters include:

• Capacitance
• Rated voltage
• DC bias characteristics
• ESR
• ESL
• Leakage current
• Temperature range
• Dielectric material
• Package size
• Tolerance
• Ripple-current capability
• Aging characteristics
• Polarity
• Expected operating frequency

For example, an MLCC marked with a nominal capacitance may exhibit a significant capacitance reduction under DC bias. Therefore, the effective capacitance under actual operating conditions should be considered rather than relying only on the nominal value.

For power applications, ripple current and thermal behavior may be as important as capacitance itself.

Capacitor Layout on a PCB

Proper capacitor placement is a major factor in PCB Layout quality.

A theoretically ideal capacitor may perform poorly if the connection between the capacitor and the circuit introduces excessive parasitic inductance.

Place Decoupling Capacitors Close to the IC

For high-speed digital devices, decoupling capacitors are typically positioned close to the relevant power and ground connections.

The goal is to minimize the physical loop area between the capacitor, power connection, and return path.

A shorter and wider connection generally reduces parasitic inductance compared with a long, narrow routing path.

Minimize Via and Trace Parasitics

Vias, traces, pads, and component terminations all contribute parasitic inductance and resistance.

For high-frequency decoupling, the complete current loop should therefore be considered rather than simply measuring the distance between the capacitor body and the IC.

In some designs, placing a capacitor close to the IC but connecting it through a long or poorly configured return path may provide less benefit than expected.

Consider the PCB Stackup

In multilayer PCB designs, the power distribution network should be considered together with the power and ground planes.

A capacitor’s effectiveness depends on the impedance of the entire current path, including:

• Component terminals
• Pads
• Vias
• Traces
• Plane connections
• Power and ground structures

This is particularly important for high-speed designs where low-inductance current paths are essential for maintaining Signal Integrity and Power Integrity.

PCB Capacitors and Noise Suppression

Capacitors are frequently used to control unwanted noise in electronic systems.

A properly designed capacitor network can help reduce:

• Power-supply ripple
• High-frequency switching noise
• Transient voltage fluctuations
• Coupled interference
• Unwanted signal components

However, adding more capacitors does not automatically produce better noise performance.

A capacitor can interact with the inductance and resistance of the surrounding circuit and create resonances. Multiple capacitors with different values may also produce anti-resonance under certain conditions.

Therefore, capacitor selection should consider the impedance profile of the complete power distribution network rather than focusing only on nominal capacitance.

PCB Capacitors and Signal Integrity

In high-speed circuits, capacitor parasitics can affect Signal Integrity.

For example, a capacitor connected directly to a high-speed signal trace can introduce discontinuity, additional capacitance, and impedance changes.

Therefore, capacitors should not be added to high-speed signal paths without understanding their electrical purpose.

When capacitors are used for AC coupling, filtering, or termination-related functions, designers should consider:

• Signal frequency
• Rise and fall time
• Characteristic impedance
• Capacitor parasitics
• Trace topology
• Package size
• Pad geometry
• Return-current path

Simulation and measurement may be necessary for demanding high-speed interfaces.

Common PCB Capacitor Design Mistakes

Choosing Only by Capacitance

Selecting a capacitor solely based on its nominal capacitance can result in poor real-world performance.

Voltage rating, ESR, ESL, DC bias, temperature, ripple current, and frequency behavior should also be evaluated.

Placing Decoupling Capacitors Too Far Away

A long connection increases parasitic inductance and can reduce the effectiveness of a decoupling capacitor at high frequencies.

Ignoring Polarity

Polarized capacitors, particularly electrolytic and certain tantalum capacitors, must be installed with the correct polarity.

Reverse voltage can result in leakage, overheating, or catastrophic failure depending on the component and operating conditions.

Using Excessive Capacitors Without Analysis

Adding large numbers of capacitors without evaluating the power distribution network can increase cost, board area, assembly complexity, and potentially create unwanted resonances.

Ignoring DC Bias

For MLCCs, the effective capacitance may decrease under applied DC voltage. This can be particularly important in low-voltage, high-current power circuits.

How to Improve PCB Capacitor Performance

A systematic approach can improve capacitor effectiveness.

Step 1: Define the Electrical Requirement

Determine whether the capacitor is required for decoupling, filtering, coupling, energy storage, timing, or another function.

Step 2: Identify the Frequency Range

Determine which frequencies need to be suppressed or passed.

This helps establish the required impedance characteristics and capacitor technology.

Step 3: Select the Appropriate Capacitor Type

Choose between ceramic, electrolytic, tantalum, film, or other technologies according to capacitance, voltage, frequency, temperature, size, and reliability requirements.

Step 4: Evaluate Real-World Parameters

Check ESR, ESL, DC bias, tolerance, ripple current, self-resonant behavior, and temperature characteristics.

Step 5: Optimize PCB Layout

Place capacitors according to the actual current path. For high-frequency applications, minimizing loop inductance is often more important than simply reducing the visual distance between components.

Step 6: Verify the Design

For demanding applications, use circuit simulation, impedance analysis, oscilloscope measurements, network analysis, or other appropriate validation methods.

PCB Capacitor Manufacturing Considerations

From the PCB manufacturer’s perspective, capacitor performance is also influenced by PCB layout and assembly quality.

Important manufacturing considerations include:

• Accurate PCB footprints
• Correct pad dimensions
• Solder mask registration
• Component spacing
• SMT placement accuracy
• Solder paste printing
• Reflow profile
• Component polarity identification
• AOI inspection
• X-ray inspection when required
• Electrical testing

For fine-pitch components and dense layouts, pad geometry and component spacing should be reviewed during the DFM stage.

Kingda’s PCB Design and Manufacturing Support

At Kingda, PCB design and manufacturing considerations can be evaluated together to support reliable capacitor implementation.

For applications involving high-speed signals, sensitive analog circuits, power conversion, or dense multilayer layouts, capacitor selection should be coordinated with PCB stackup, grounding, power distribution, routing, and assembly requirements.

A well-designed PCB capacitor network is not simply a collection of components with different capacitance values. It is part of the complete electrical system, and its performance depends on component characteristics, circuit topology, PCB geometry, and manufacturing quality.

Conclusion

PCB Capacitors are fundamental passive components used for energy storage, coupling, filtering, transient response, and power-noise control.

Different Capacitor Types provide different combinations of capacitance, frequency response, ESR, ESL, voltage capability, size, and reliability. Therefore, capacitor selection should always be based on the actual electrical and environmental requirements of the application.

In PCB Design, correct placement is equally important. In particular, Decoupling Capacitors should be connected through short, low-inductance current paths, while filtering and coupling capacitors should be positioned according to their circuit functions.

By combining appropriate component selection, optimized PCB Layout, controlled manufacturing, and electrical verification, Kingda can help customers develop PCB assemblies with improved power stability, noise performance, and Signal Integrity.
