Why PCB Design Quality Decides Whether a Project Succeeds

A low price is not a competitive advantage in a market where the product has to work. In electronics it is not even a saving, because the board is a small part of the total cost of a project and a mistake in it can consume the whole budget. The layout is the point at which everything the project has decided becomes physical, and that is why PCB design quality carries more weight than the price of the work.

The Arithmetic of a Design Error

The cost of correcting a fault rises sharply with the stage at which it is found. A net that is wrong on the drawing costs an hour. The same net found in layout, before the artwork is released, costs an hour and a half. Found after the boards are made, it costs the boards, the components that were fitted, the assembly time, the test time and the delay to the schedule. Found after the first units have shipped, it costs all of that plus the returns, the replacement logistics and the damage to reputation that a field failure produces.

The board itself is typically a small fraction of the value of the finished product, which is why a quotation that is twenty percent cheaper on layout is a trivial saving against the risk it carries. The correct comparison is not between two prices but between two probabilities of reaching production without a redesign.

Where does the quality of the work show up? In the assembly yield of the first production run, in the number of engineering changes after the first prototypes, in whether the product passes its EMC tests on the first attempt, and in whether the boards that come back from the field return with the same fault. All four are consequences of decisions made in the layout, and none of them is visible in the price of the layout.

<img src="https://www.gopcba.com/wp-content/uploads/2024/10/vektornyj_smart-obekt1.webp" alt="design review of a PCB layout before release” />

What a Design Review Actually Covers

Quality in this context is not an attitude, it is a set of checks that either happen or do not.

The connectivity of the released data is compared against the schematic, so that a missing or added net is found before the board is made. The design review covers the placement against the mechanical constraints, the stack-up against the impedance and current requirements, and the routing against the fabrication rules. The power structure is checked: the rail widths, the decoupling population and the plane continuity.

On a design with a memory interface or a high-speed serial link, a signal integrity check follows: the reference planes are continuous, the length and skew rules are met, and the return paths are defined. On a design that will be assembled and tested as a product, a manufacturability review runs alongside it, and that review is the one that finds the parts placed too close to a breakaway tab, the paste apertures that do not suit the stencil and the test points that the fixture cannot reach.

Each of those checks is cheap once the process exists and impossible to add at the end of a project. The value of choosing a design partner is largely the value of the process they run.

How to Judge a Design Partner

Price and portfolio are the two things that are usually compared, and they are the two that say least about quality. The questions that help are more specific.

Ask what the review process is and who signs off on the release. Ask how revisions are controlled, and what happens if a change is made after the artwork has been issued. Ask for a sample data package so the layer set, the drill data and the documentation can be seen. Ask whether the layout rules are set up from the fabricator’s capability or from a default template. Ask how a design with an impedance requirement is handled, and whether test coupons are requested.

The answers to those questions separate a partner who can take a design to production from one who can deliver a drawing. Our process page describes how we run the same sequence from review to release, and the checks that our engineering team performs on incoming data are the ones a customer would otherwise have to perform themselves.

Where Quality Meets Cost

There is no contradiction between a good design and a cheap one. The two goals are usually served by the same decisions: fewer layers where the electrical requirement allows, standard component values, a stack-up that the fabricator builds every day, a panel arrangement that uses the material well.

What quality prevents is the opposite: a design that costs more than it should because it was made in a hurry. A board with four layers where two would do, a power plane split that causes an EMC failure and a redesign, a package that cannot be assembled by the process selected. Every one of those is an example of a design decision that saved time at the layout stage and spent far more afterwards.

Design for Manufacture Is Part of Design Quality

The boundary between design and manufacture is where most avoidable cost lives. Design for manufacture is the practice of arranging the design around the process: the minimum annular ring the shop can hold, the solder mask clearance it applies, the aspect ratio of a via it can plate, the component spacing its placement machine needs.

The information exists at the fabricator and at the assembly partner, and the value of a design partner is knowing to ask for it. A layout that was drawn against a generic rule set will be manufacturable, but it will not be optimal, and on a dense design the difference is a layer, a yield point or a week of schedule.

Where the design, the board and the assembly come from the same industrial group, the information flows without a formal request. Our design and layout team works with the manufacturing and assembly groups in the same organisation, and our turnkey PCB assembly programmes are built around that arrangement, so that the rules used in the layout are the rules the line actually holds.

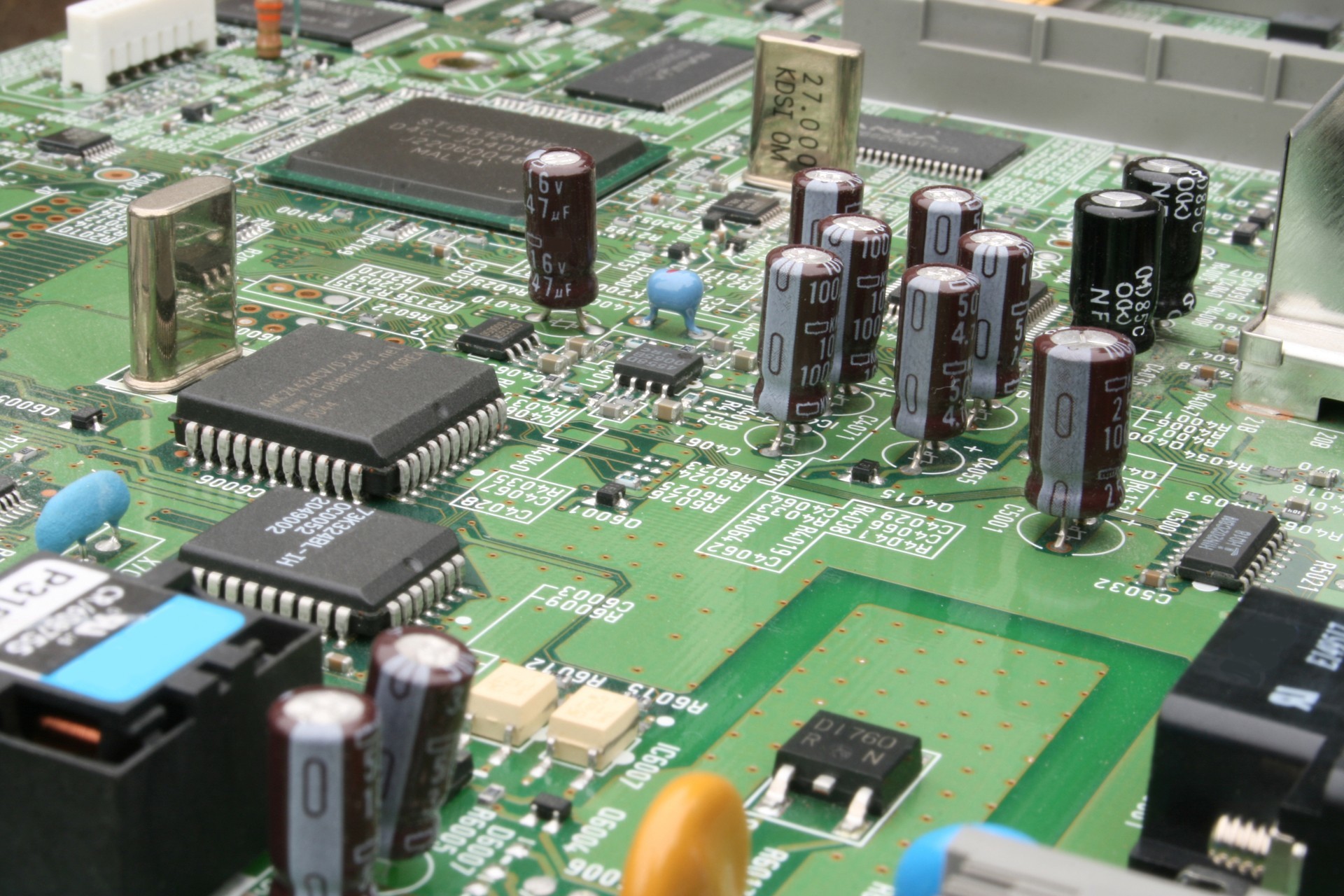

What the Numbers Look Like After Release

The outcome of a design is visible in three numbers. The first is the first pass yield of the assembly line, which shows whether the paste, the placement and the reflow profile were considered in the layout. The second is the number of engineering changes issued between the prototype and the first production build. The third is the time from the start of the layout to the first board that worked. A partner who records those numbers, and can show them for earlier projects, is describing the quality of a process rather than an intention.

FAQ

Is a higher price a guarantee of quality? No, but a price that is far below the others usually means a step in the process has been removed. Ask which one.

What single check catches the most errors? Comparing the connectivity of the released data against the schematic, because it finds the errors that would otherwise appear as a board that does not work.

Can quality be measured? It can be inferred from the first pass yield of the production build, the number of engineering changes after the prototypes and the results of the first EMC test.
