Stencil and Solder Paste Printing: Where Joint Quality Starts

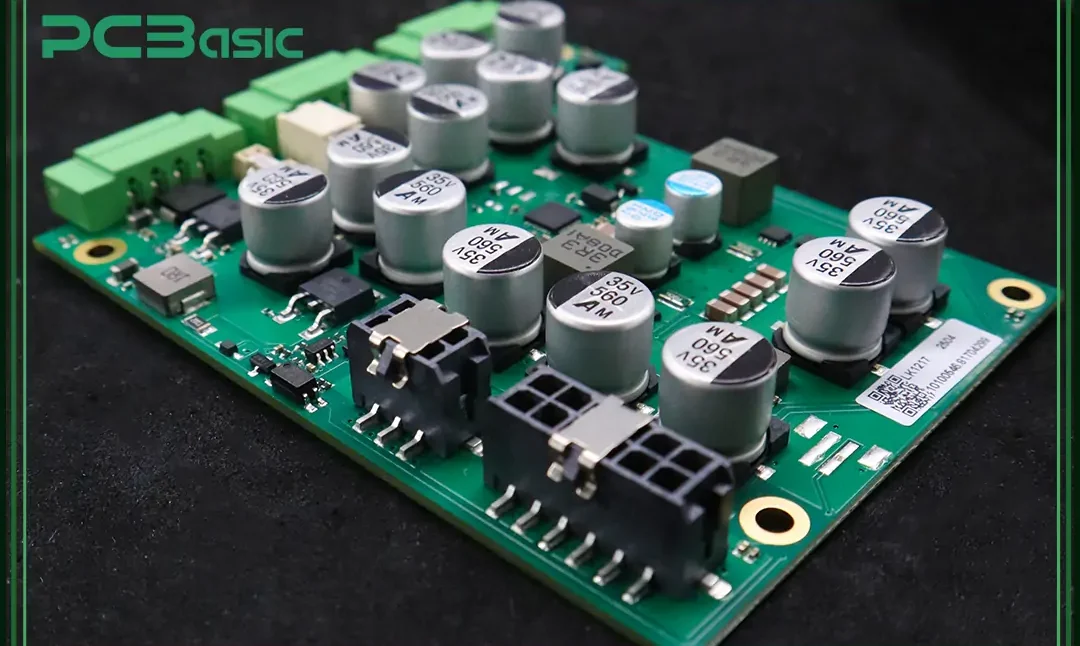

Attention tends to fall on the placement machine, which is visible, expensive and easy to compare on paper. The stage that decides whether the joints can form at all happens earlier and attracts less interest: the printing of solder paste through a stencil onto the pads. By the time the parts are placed, the quantity of solder available at each position has already been determined, and no amount of placement accuracy can compensate for a deposit that is too small, too large or in the wrong place.

This is why solder paste printing is treated as a process in its own right on boards that carry fine-pitch devices, QFN and BGA packages and small passives. The defects it produces are not always visible after printing, and they surface later as joints that are weak, bridged or missing.

The Stencil Is Cut for the Board

The stencil is a thin sheet with openings that correspond to the pads, and the volume of paste transferred depends on the thickness of the sheet and the size, shape and wall angle of each opening. A general-purpose stencil made for a different product does not transfer the right amount of paste to this one.

The reason is that the requirement varies across the board. A large tab, a connector footprint, a power device with an exposed pad and the lands of a fine-pitch package all need different treatment, and a single aperture style applied to all of them produces an excess in one place and a shortage in another. Where the pitch is tight, the aperture is usually reduced in one dimension to keep adjacent deposits separate; where the pad is large, the opening is divided so that flux and air can escape during reflow instead of being trapped as voids.

The stencil aperture design is therefore a manufacturing decision that belongs with the board data, and any device whose process behaviour is unusual should be identified before the stencil is ordered rather than after.

Paste Release and the Printing Parameters

Transferring the paste is a balance between filling the aperture and releasing its contents onto the pad. The squeegee pressure, the printing speed, the separation of the board from the stencil and the condition of the paste itself all act on that balance.

Paste that is too cold does not flow into the aperture cleanly and produces deposits of uneven height. Pressure that is too low leaves the aperture partly filled, while pressure that is too high forces paste under the stencil and causes deposits to smear between adjacent pads. Release is where fine-pitch work is won or lost: if the board drops away too quickly, the paste is drawn back into the aperture instead of staying on the pad, which leaves a deposit with a torn surface and a reduced volume.

The environment belongs to this stage as well. Temperature and humidity affect the viscosity and the working life of the paste, and the interval between opening a jar and completing the print run is part of the process rather than a matter of convenience. Paste that has been left on the stencil begins to dry, and its release behaviour changes with it.

The Faults That Originate in Printing

Insufficient paste leaves a joint that is thin, weak or connected only at the edge, and it is one of the more difficult defects to see because the joint may look acceptable from above. Excess paste produces bridges, solder balls and adjacent deposits that touch before reflow.

Displacement, where the deposit is offset from the pad, reduces the overlap with the component termination and produces a fillet that is asymmetric at best. Slump, where the deposit loses its shape before reflow, makes a fine-pitch pattern behave as though the pitch were smaller than it is. Blocked apertures leave particular pads with little or no paste, which produces open joints on the positions affected and usually on no others — a pattern that is easy to explain once the printing stage is considered and confusing until then.

Small passives deserve a mention because their failure mode is different. A deposit that is unequal at the two ends of a capacitor or resistor creates an imbalance that the surface tension resolves at reflow by lifting one end, which is why paste volume control matters most where the components are smallest.

<img src="https://www.gopcba.com/wp-content/uploads/2026/05/smart-logistic-PCBA-1.jpg" alt="print inspection of solder paste deposits on a PCB” />

Checking the Print

The print inspection step exists to find these faults before the parts are placed, when correcting them costs a wipe of the board rather than a rework station. The check can be visual at low volume, using the stencil apertures as a reference, or automated, measuring the volume and position of each deposit against a limit.

What matters more than the method is that a limit exists. Inspection without a standard confirms only that the paste looks plausible, while inspection against a defined range of volume and placement is what turns the result into a decision about whether to print again or to continue.

The condition of the stencil is part of the same check. Paste residue on the underside and damage to the openings develop with use, and a stencil that has been cleaned improperly begins to release inconsistently. For a product that will be reordered, keeping the stencil for that product and recording the parameters used to print it is the difference between a repeatable process and a fresh attempt each time.

Printing a Small Batch Without Losing Control

Volume changes the equipment, not the requirement. A short run is usually printed on the same line as a larger one, with the same printer and the same stencil, and the parameters that were established for the product are simply recalled. Where the run is very short, printing may be performed manually, which is acceptable provided the same discipline applies to cleaning, paste condition and the inspection of the result.

Two habits make the difference on small work. The first is to print, inspect and correct before the parts are placed, since a board that is wiped and reprinted costs a minute while a board that has been assembled with a poor deposit costs a rework operation. The second is to keep the paste under control: brought to room temperature before use, stirred as required, returned to storage when the run pauses and never left to dry on the stencil.

Cleaning is part of the same discipline. The underside of the stencil and the openings accumulate paste during a run, and the cleaning method can damage the aperture walls if it is done roughly. A stencil that is stored flat, with its openings protected, holds its dimensions over the years that a product may be in production.

Data the Process Needs

The boards need fabrication data, a bill of materials, coordinates and process notes as usual, and printing adds two specific requirements: an accurate statement of the pad geometry as designed, and a list of the devices whose process behaviour is difficult. Naming the fine-pitch, area-array and large-pad positions up front allows the stencil to be designed for them, and it makes the printing parameters a planned decision rather than a setting chosen at the machine.

Where the board also carries inserted parts, the sequence continues after reflow, through through-hole assembly, with verification through PCBA testing and the process controls described under quality management. The placement itself is carried out as SMT assembly.

FAQ

Why is printing more critical than placement? Because it fixes how much solder is available at every position. Placement can be corrected by the machine, but a deposit that is too small or missing cannot be recovered later.

Does a small batch need a dedicated stencil? Yes, if the board carries fine-pitch or area-array devices. A stencil designed for another product will not deliver the right volume to these positions.

What is the most useful inspection of the print? One with a defined limit for volume and position, so that the result decides whether the board is reprinted rather than merely confirming that the paste looks reasonable.
