Wave Soldering vs Selective Soldering: Which PCB Assembly Process Is Best?

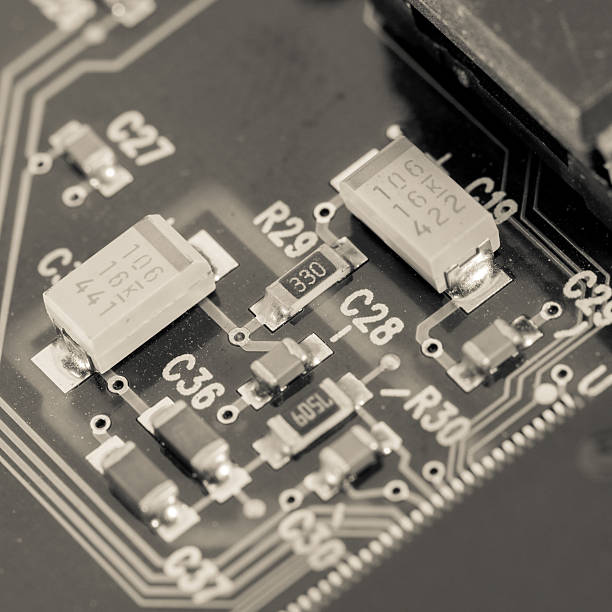

In modern PCB Assembly, soldering technology directly affects solder joint quality, production efficiency, manufacturing cost, and long-term product reliability.

For through-hole components, two commonly used soldering processes are Wave Soldering and selective soldering. Although both technologies use molten solder to create electrical and mechanical connections, they differ significantly in their application methods, process control, thermal exposure, and suitability for different PCB designs.

Choosing between these two technologies depends on factors such as component density, PCB layout, production volume, thermal sensitivity, soldering requirements, and overall product complexity.

Wave Soldering vs Selective Soldering: Key Differences

Understanding these differences helps engineers select the appropriate process before production begins.

When Should You Choose Wave Soldering?

Wave soldering is well suited to PCBs containing a large number of through-hole components that can safely pass through a common soldering process.

During wave soldering, the PCB travels over a controlled wave of molten solder. The solder contacts exposed component leads and PCB pads, forming solder joints across multiple locations during a single process.

Typical Applications for Wave Soldering

Wave soldering is often appropriate when:

• The PCB contains many through-hole components.
• Components are distributed relatively uniformly.
• Most solder joints can tolerate the same thermal profile.
• High production throughput is required.
• The PCB design is relatively straightforward.
• Production volume justifies automated soldering.

For high-volume products with standardized component layouts, wave soldering can provide efficient and repeatable production.

When Should You Choose Selective Soldering?

Selective soldering is designed for PCBs where only specific through-hole components need to be soldered.

Instead of exposing the entire PCB to a solder wave, the machine applies molten solder precisely to designated solder joints. This provides much greater control over soldering locations and thermal exposure.

Typical Applications for Selective Soldering

Selective soldering is particularly useful when:

• The PCB contains both SMT and THT components.
• Sensitive components are located near through-hole solder joints.
• Components cannot tolerate full-board wave soldering.
• The PCB has a high component density.
• Soldering areas are difficult to access with conventional wave soldering.
• Specific solder joints require localized thermal control.

For complex assemblies, selective soldering can reduce unnecessary thermal exposure and minimize the risk of soldering defects.

GOPCBA supports different assembly technologies according to PCB design and production requirements, including Through-Hole PCB Assembly for projects that rely on through-hole components.

Thermal Impact: Wave Soldering vs Selective Soldering

Thermal management is one of the most important differences between the two processes.

Wave Soldering

With wave soldering, a large portion of the PCB bottom side is exposed to molten solder.

This makes the process highly efficient, but it can increase thermal exposure for nearby components and PCB materials.

Engineers should therefore consider component temperature ratings, PCB construction, board thickness, copper distribution, and thermal mass during process development.

Selective Soldering

Selective soldering applies heat and solder only to predefined locations.

This localized approach can reduce thermal exposure to surrounding components and is particularly useful when SMT components or heat-sensitive devices are positioned close to THT components.

For mixed-technology assemblies, this level of process control can provide significant manufacturing advantages.

How PCB Design Affects the Soldering Process

The PCB layout plays an important role in determining which soldering process is most appropriate.

Component Spacing

Adequate spacing between components helps prevent solder bridging and improves soldering accessibility.

High-density layouts may make conventional wave soldering more difficult because some areas can be exposed to solder unnecessarily.

Component Orientation

Through-hole component orientation can affect solder flow and solder joint formation during wave soldering.

Designers should consider solder direction, component lead spacing, pad geometry, and potential solder shadowing during PCB layout.

Thermal-Sensitive Components

If heat-sensitive components are positioned near through-hole solder joints, selective soldering may provide better thermal control.

This is especially important for complex electronics used in industrial, automotive, medical, telecommunications, and other demanding applications.

For projects requiring design optimization before production, PCB Design & Layout can help address manufacturability, component placement, and assembly considerations at the design stage.

Common Soldering Defects and Their Causes

Both wave soldering and selective soldering require precise process control.

Solder Bridging

Solder bridging occurs when molten solder connects two adjacent conductive areas.

Potential causes include excessive solder volume, insufficient spacing, inappropriate component orientation, excessive wave height, or incorrect process parameters.

Insufficient Solder

Insufficient solder may result from inadequate solder contact, incorrect flux application, contamination, poor thermal conditions, or inappropriate process settings.

Cold Solder Joints

Cold solder joints can occur when the solder does not reach an appropriate temperature or fails to properly wet the pad and component lead.

Such defects can increase electrical resistance and reduce long-term connection reliability.

Voids and Inconsistent Solder Coverage

Inconsistent solder coverage can result from variations in PCB design, component geometry, flux distribution, solder temperature, or process parameters.

Inspection and process monitoring are therefore essential for maintaining consistent solder joint quality.

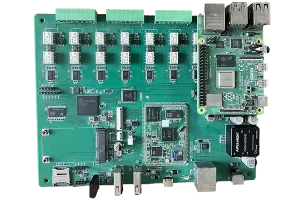

Combining Wave Soldering and Selective Soldering

Complex PCBs do not always require choosing only one soldering technology.

A mixed process can sometimes provide the best manufacturing solution.

For example, a PCB may use wave soldering for groups of standard through-hole components while using selective soldering for components located near sensitive SMT devices.

This approach allows manufacturers to balance:

• Production efficiency
• Thermal control
• Solder joint quality
• Component protection
• Manufacturing cost
• Overall process flexibility

GOPCBA provides Mixed Technology PCB Assembly for assemblies that combine SMT and through-hole technologies according to product requirements.

Quality Control for Wave and Selective Soldering

Regardless of the selected process, soldering quality should be monitored through multiple inspection and testing stages.

Typical controls include:

• Incoming material inspection
• Component verification
• PCB inspection
• Process parameter monitoring
• Visual solder joint inspection
• AOI inspection where applicable
• X-ray inspection for applicable assemblies
• Electrical testing
• Functional testing
• Final quality inspection

Process documentation and inspection criteria should be established according to product requirements and applicable industry standards.

For complex electronics, the combination of process control, automated inspection, and functional testing provides a more comprehensive approach to quality assurance.

Choosing the Right Soldering Process

The best soldering process depends on the specific PCB and production requirements.

Choose Wave Soldering When:

• The PCB contains many compatible THT components.
• Components are arranged for efficient wave soldering.
• The design has relatively low thermal sensitivity.
• High production throughput is a priority.
• The assembly process is relatively standardized.

Choose Selective Soldering When:

• Only specific through-hole joints require soldering.
• SMT components are located close to THT components.
• Thermal exposure must be minimized.
• The PCB has a complex or high-density layout.
• Precise localized soldering is required.

Consider Both Processes When:

• The PCB contains both SMT and THT components.
• Different component groups have different soldering requirements.
• Some areas require high-throughput soldering while others need precise localized processing.

Supporting Prototype to Production

The optimal soldering strategy can change as a product moves from prototype development to volume manufacturing.

During prototype development, engineers may prioritize process flexibility and design validation. As production volume increases, manufacturing efficiency, repeatability, and cost become increasingly important.

For early-stage projects, Rapid PCBA Prototyping can help validate PCB designs, component selection, assembly processes, and soldering requirements before production is scaled.

A manufacturing partner should therefore evaluate the PCB design, component mix, production volume, and quality requirements before recommending a soldering process.

Conclusion

Wave soldering and selective soldering are both valuable technologies for through-hole PCB assembly, but they serve different manufacturing requirements.

Wave Soldering is generally well suited to high-volume production involving many compatible through-hole components, while Selective Soldering provides greater precision and thermal control for complex or mixed-technology PCB assemblies.

The right choice depends on PCB layout, component density, thermal sensitivity, production volume, solder joint requirements, and manufacturing cost.

Rather than selecting a soldering process based solely on equipment or production volume, engineers should evaluate the entire assembly design and manufacturing workflow.

With appropriate PCB design, process engineering, soldering technology, inspection, and testing, manufacturers can achieve reliable solder joints and consistent PCBA quality from prototype through volume production.
