The rapid development of 5G Technology is transforming telecommunications, intelligent manufacturing, cloud computing, artificial intelligence, and the Internet of Things. With higher bandwidth, lower latency, and support for massive numbers of connected devices, 5G is creating a new generation of network infrastructure and enabling new applications across multiple industries.

Behind these applications is a critical hardware foundation: the printed circuit board.

From base stations and radio-frequency modules to smartphones, servers, data centers, and connected devices, increasingly sophisticated PCB technologies are required to support higher operating frequencies, faster data transmission, greater wiring density, and more compact system architectures.

As a result, 5G PCB applications are creating new opportunities for multilayer, high-frequency, HDI, and flexible circuit technologies.

The relationship can be summarized simply:

5G enables new applications, while advanced PCB technology provides the hardware foundation for those applications.

1. How 5G Is Changing PCB Requirements

The transition from previous generations of wireless communication to 5G has introduced significant changes in communication equipment design.

Three areas are particularly important:

• Higher data transmission rates
• Higher operating frequencies
• Greater system integration

These requirements place greater demands on PCB materials, stackup design, impedance control, signal integrity, thermal management, and manufacturing precision.

High-Speed and High-Frequency Transmission

5G communication systems operate across a range of frequency bands, including sub-6 GHz and, in some applications, millimeter-wave frequencies.

As frequency increases, transmission loss, dielectric loss, conductor loss, impedance discontinuities, and electromagnetic coupling become increasingly important.

Consequently, the selection of laminate materials becomes an important part of PCB Technology development.

Traditional FR-4 materials remain widely used for many PCB applications, but specialized low-loss or high-frequency materials may be required for RF paths and high-speed interconnects where signal loss must be tightly controlled.

Material selection may consider:

• Dielectric constant (Dk)
• Dissipation factor (Df)
• Frequency-dependent dielectric behavior
• Copper roughness
• Thermal stability
• CTE
• Moisture resistance
• Manufacturing compatibility

There is no single Dk or Df value that applies to every 5G PCB. The appropriate material depends on the operating frequency, stackup, transmission distance, impedance target, loss budget, and overall system design.



2. 5G Base Stations and Advanced PCB Technology

The infrastructure supporting 5G networks requires sophisticated radio and digital processing hardware.

Modern base-station architectures may integrate active antenna systems, radio-frequency front ends, power amplifiers, filters, converters, digital processing, and high-speed data interfaces.

These systems can require different PCB technologies within the same equipment.

RF sections may prioritize:

• Low dielectric loss
• Stable electrical properties
• Controlled impedance
• Low transmission loss
• RF isolation

Digital processing sections may require:

• High-speed multilayer structures
• High-density routing
• Power integrity
• Signal integrity
• Controlled impedance
• Efficient thermal management

Therefore, a single communication system may combine multiple PCB material systems and board structures according to the function of each circuit section.

3. Why Multilayer PCBs Are Important for 5G

As communication equipment becomes more integrated, the number of electrical connections and routing requirements increases.

This creates demand for advanced Multilayer PCB structures.

Multilayer boards provide additional routing layers while allowing designers to establish dedicated reference planes and power-distribution structures.

A properly designed multilayer stackup can help:

• Increase routing density
• Separate functional circuit sections
• Provide stable reference planes
• Support controlled impedance
• Improve power distribution
• Reduce unnecessary signal transitions
• Manage return-current paths
• Support thermal and mechanical requirements

However, adding more layers does not automatically improve PCB performance.

The stackup must be designed according to signal requirements, material properties, impedance targets, manufacturing capability, and cost.

For high-speed 5G equipment, stackup design and manufacturing tolerances can have a significant impact on final electrical performance.

4. High-Frequency Materials for 5G Applications

One of the most important developments associated with 5G PCB technology is the increased use of high-frequency and low-loss materials.

At higher frequencies, even relatively small dielectric or conductor losses can affect transmission performance.

For this reason, designers may evaluate specialized materials such as:

• PTFE-based laminates
• Hydrocarbon-based laminates
• Modified epoxy systems
• Low-loss FR-4-type materials
• Hybrid material constructions

The appropriate choice depends on the signal frequency and application.

Hybrid stackups can also be considered when only certain portions of the PCB require high-frequency performance while other areas can use more cost-effective materials.

This approach can help balance electrical performance, manufacturing complexity, reliability, and cost.

5. PCB Design for 5G Signal Integrity

High-speed 5G systems require careful control of signal integrity.

As data rates increase, PCB interconnects can behave as transmission lines rather than simple ideal wires.

Important factors include:

• Controlled impedance
• Trace geometry
• Reference-plane continuity
• Differential-pair routing
• Via transitions
• Crosstalk
• Return-current paths
• Connector discontinuities
• Copper roughness
• Dielectric loss

For high-speed differential signals, maintaining consistent geometry and a stable reference environment is essential.

Unnecessary layer transitions should be minimized, and vias should be carefully designed because their geometry can introduce impedance discontinuities and parasitic effects.

Signal-integrity analysis and simulation can help identify potential problems before prototype manufacturing.

6. HDI PCB Development for 5G Mobile Devices

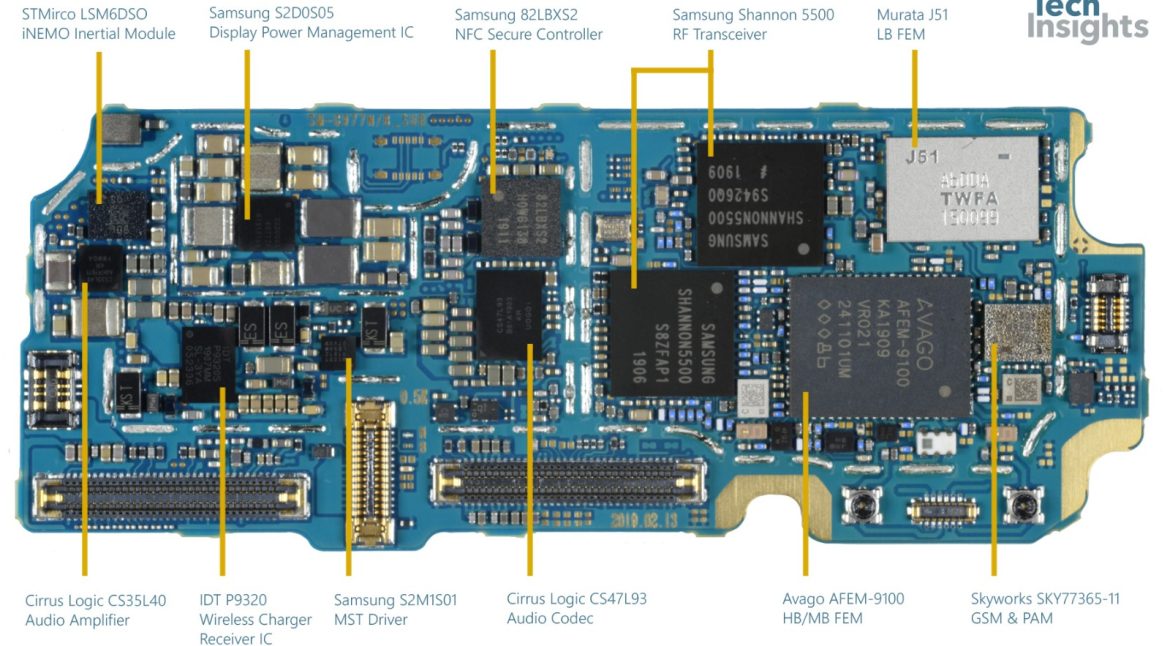

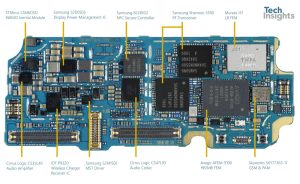

5G is not only affecting communication infrastructure. It is also influencing smartphone and other mobile-device PCB architectures.

Modern smartphones must accommodate:

• More RF bands
• Multiple antennas
• More cameras
• Higher processing performance
• Larger battery systems
• Advanced sensors
• High-speed interfaces
• Thinner mechanical structures

These requirements leave less physical space for conventional routing.

As a result, HDI PCB technology has become an important solution for high-density mobile electronics.

HDI technology can use microvias and sequential build-up structures to increase routing density within a compact board area.

Compared with conventional through-hole structures, microvias can provide shorter vertical interconnections and improve routing flexibility.

Depending on the product architecture, HDI may incorporate:

• Microvias
• Blind vias
• Buried vias
• Via-in-pad structures
• Fine-line circuitry
• Fine-pitch BGA routing
• Sequential lamination

The exact structure should be selected according to the component pitch, routing requirements, board thickness, reliability requirements, and manufacturer’s process capabilities.

7. FPC and Antenna Integration in 5G Devices

Flexible circuits are particularly useful in compact electronic devices because they can bend, fold, and conform to three-dimensional mechanical structures.

FPC technology provides several characteristics that are valuable for mobile products:

• Low weight
• Thin construction
• High wiring flexibility
• Three-dimensional routing
• Reduced connector requirements
• Space-efficient packaging

FPCs are commonly based on flexible dielectric systems such as polyimide, with copper used as the conductive layer.

Depending on the application, FPC structures may be:

• Single-sided
• Double-sided
• Multilayer
• Rigid-flex

In high-frequency applications, flexible antenna structures and RF interconnects require additional attention to material properties, geometry, impedance, shielding, and mechanical deformation.

The choice of flexible material should therefore be based on both electrical and mechanical requirements.

8. 5G Antenna and RF Module Miniaturization

5G smartphones and wireless devices often require multiple antennas and increasingly integrated RF front-end modules.

As more frequency bands and wireless functions are incorporated into a single product, antenna placement and RF routing become more challenging.

PCB design must consider:

• Antenna location
• RF trace impedance
• Ground-plane structure
• Keep-out regions
• Electromagnetic coupling
• Mechanical enclosure effects
• Connector transitions
• Coexistence with other wireless systems

The antenna cannot be considered independently from the PCB.

The PCB stackup, ground structure, surrounding components, enclosure, and RF transmission line can all influence antenna performance.

This makes collaboration between RF engineers, antenna designers, mechanical engineers, and PCB designers increasingly important.

9. From Conventional Vias to HDI Interconnects

PCB interconnection technology has evolved significantly as electronic products have become smaller and more integrated.

Traditional through-hole vias remain widely used, but compact products may require more advanced structures.

Modern HDI PCB designs can use blind and buried vias, microvias, and sequential build-up technologies to create higher-density interconnections.

The major objective is not simply to make vias smaller.

Instead, the interconnect structure should:

• Improve routing efficiency
• Reduce unnecessary signal transitions
• Support fine-pitch components
• Maintain electrical performance
• Meet mechanical reliability requirements
• Remain compatible with manufacturing processes

Microvia reliability is affected by factors such as dielectric thickness, via geometry, copper plating, thermal cycling, material properties, and manufacturing process control.

Therefore, advanced via technology must be evaluated as part of the complete board structure.

10. Manufacturing Challenges for 5G PCBs

The transition toward high-frequency and high-density designs places greater demands on PCB Manufacturing.

Manufacturers may need to control:

• Fine-line geometry
• Layer registration
• Dielectric thickness
• Copper thickness
• Surface roughness
• Lamination
• Microvia formation
• Plating quality
• Controlled impedance
• Material compatibility

High-frequency boards can be particularly sensitive to manufacturing variation because changes in trace geometry or dielectric thickness can influence impedance and insertion loss.

Therefore, the design and manufacturing teams should communicate early in the product development process.

A DFM review can identify potential problems before fabrication begins.

11. Thermal Management in 5G Equipment

5G equipment can contain high-power RF and digital components that generate substantial heat.

Thermal management therefore becomes an important part of PCB design.

Possible solutions include:

• Optimized copper areas
• Thermal vias
• Heat spreaders
• Metal-core structures where appropriate
• Heat sinks
• Thermal interface materials
• Improved airflow
• Optimized component placement

Thermal performance should be evaluated using the complete thermal path rather than focusing on a single PCB feature.

For example:

Component → Package → PCB Copper → Thermal Structure → Heat Sink or Chassis → Ambient

The effectiveness of the thermal solution depends on component power, copper distribution, dielectric properties, interface resistance, airflow, enclosure design, and operating conditions.

12. Power Integrity and EMI Control

5G equipment combines RF circuits, high-speed digital circuits, power conversion, clocks, processors, and other potentially noisy subsystems.

This creates challenges related to Power Integrity, signal integrity, and electromagnetic compatibility.

PCB designers should consider:

• Decoupling capacitor placement
• Power distribution networks
• Return-current paths
• Grounding strategy
• RF isolation
• High-speed routing
• Switching power supply layout
• Shielding
• Via placement
• Functional circuit partitioning

Grounding should be designed according to the actual current-return paths rather than relying on a simple rule that all analog and digital grounds must always be separated.

Similarly, shielding is most effective when combined with good PCB layout, controlled return paths, appropriate filtering, and careful source-path-victim analysis.

13. 5G Expands the PCB Market

The commercial deployment of 5G is creating demand across multiple electronics sectors.

Potential growth areas include:

• Telecommunications infrastructure
• Base stations
• RF modules
• Antenna systems
• Smartphones
• Wearable devices
• Data centers
• Servers
• Industrial IoT
• Automotive electronics
• Edge-computing equipment

The impact of 5G should therefore not be viewed as limited to communication base stations.

The broader ecosystem includes both infrastructure and end-user devices, creating opportunities for different types of PCB technologies.

Communication equipment may require high-frequency, high-speed, and high-layer-count boards, while smartphones and compact devices may place greater emphasis on HDI and flexible circuits.

14. PCB Technology Is Moving Toward Higher Density

One of the most significant effects of advanced wireless communication is the increasing integration of electronic functions.

This is driving PCB Technology in several directions:

Higher Density

More circuits must fit into smaller physical spaces, increasing demand for HDI, microvias, and fine-line structures.

Higher Speed

Higher data rates require better impedance control, low-loss materials, optimized stackups, and stronger signal-integrity design.

Higher Frequency

RF applications require materials and structures with appropriate dielectric and conductor-loss characteristics.

Better Thermal Performance

Higher system integration increases power density, making thermal management increasingly important.

Greater Integration

More functions may be integrated into modules and compact assemblies, increasing the importance of advanced packaging and PCB technologies.

15. Kingda’s Support for 5G PCB Applications

The development of advanced 5G PCB products requires close coordination between PCB design and manufacturing.

Kingda can support customers with PCB fabrication for applications involving multilayer structures, high-density routing, HDI, high-speed interconnects, and other demanding PCB requirements.

Engineering review can evaluate:

• Material selection
• Stackup configuration
• Controlled impedance
• Line width and spacing
• Via structures
• Lamination
• Registration
• Copper distribution
• Thermal considerations
• Surface finish
• Electrical testing

For high-frequency and high-speed applications, manufacturing capability is an important part of the overall design solution.

By involving the PCB manufacturer early, potential DFM issues can be identified before prototype production, helping improve manufacturability, consistency, and production reliability.

16. Future Opportunities for PCB Development

The continued evolution of wireless communication will create new requirements for PCB manufacturers.

Future PCB Technology development is likely to focus on:

• Higher-frequency applications
• Lower-loss materials
• Greater wiring density
• More advanced HDI structures
• Flexible and rigid-flex circuits
• Improved thermal management
• Advanced RF integration
• High-speed digital interfaces
• More intelligent manufacturing
• Higher reliability

At the same time, PCB manufacturers will need to balance technical performance with cost, manufacturability, environmental requirements, and supply-chain stability.

The most successful solutions will not necessarily use the most advanced technology in every part of the board. Instead, they will use the appropriate technology where it creates real technical value.

Conclusion

5G Technology is accelerating the development of communication infrastructure and smart electronic products, while also creating new requirements for the PCB industry.

From high-frequency base-station hardware to compact smartphones, the demand for 5G PCB solutions is encouraging the development of High-Frequency PCB, Multilayer PCB, HDI PCB, and FPC technologies.

At the same time, advances in materials, signal integrity, thermal management, manufacturing precision, and automation are becoming increasingly important.

The future of PCB development will not be defined by layer count or miniaturization alone. It will depend on the coordinated optimization of electrical performance, mechanical structure, thermal behavior, materials, manufacturing processes, and reliability.

With continued investment in PCB Technology and advanced PCB Manufacturing, Kingda can support customers developing the next generation of high-density, high-speed, and high-frequency electronic products.
