AI Blackboards and Interactive Displays: Education Hardware Grows Up

On 19 August 2026, financial media reported that Chinese AI blackboards are accelerating into overseas markets. An interactive blackboard integrating the Spark large language model has been deployed in Indonesia, Thailand, Singapore, and Malaysia, while contract manufacturers continue to supply established global education display brands. The product category itself is changing: a device that once handled display, touch, and audio-visual playback is becoming a terminal that also performs on-device inference, 4K and 8K rendering, multi-touch input, and multimodal interaction.

That transformation has a direct effect on the electronics inside. A traditional interactive panel is a display product. An AI-enabled panel is a computing product with a display, and the difference shows up in how many boards it contains and how demanding they are.

The Shift From Infrastructure to Edge Terminals

AI hardware demand has so far been understood mainly through data centres. GPU servers, high-speed switches, and optical modules drive demand for 16 to 78 layer boards, low-loss materials, and high-density interconnect, all oriented toward supporting model training and inference at scale.

As model capability moves into education, office, automotive, and robotics products, the demand pattern spreads to edge devices. Those devices do not need data-centre performance, but they do need to run inference locally, handle high-resolution display and touch input, and communicate over networks, all within a cost structure that a school or a consumer can accept.

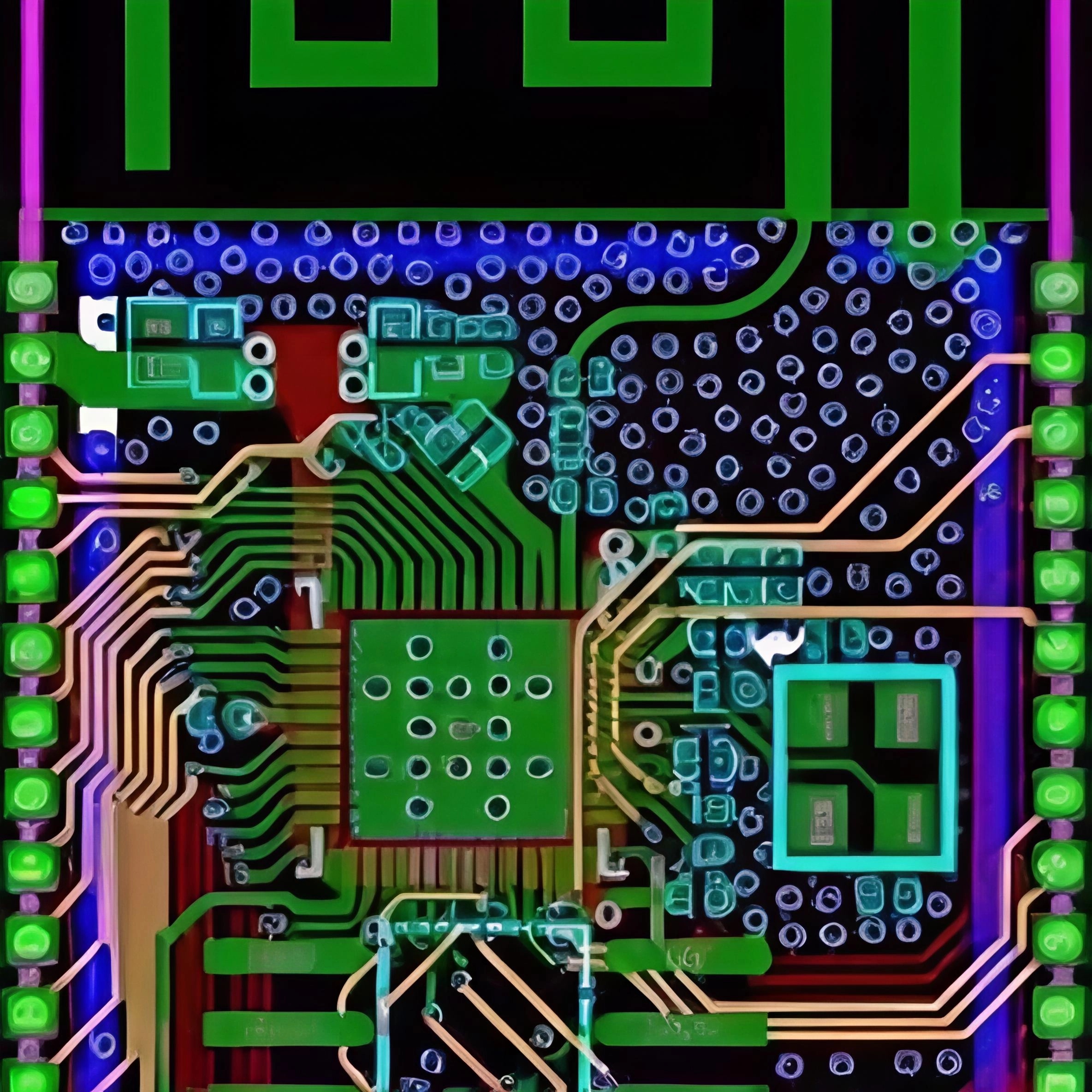

The AI blackboard illustrates the resulting electronics architecture. A conventional interactive display carries a main board, a display driver, and a power supply. Adding on-device model inference means the main control system on chip must be considerably more capable, with more memory, more interfaces, and higher power consumption. That, in turn, requires separate boards for main computing, display driving, touch sensing, audio and video processing, and power management, communicating over high-speed links. The functional complexity of the board set rises even though the product is not a server.

How Terminal Intelligence Pushes Board Density

When the main processor becomes more capable, several pressures arrive at once.

Component density. A higher-performance system on chip with companion memory, storage, and interface components must fit on a board whose size is constrained by the mechanical design of the panel. Ordinary multilayer construction quickly becomes insufficient, and high-density interconnect with laser microvias is needed to route the connections. In the densest regions, fine-line processes producing traces at 0.075 mm and below further increase the routing capacity available.

Signal integrity. 4K and 8K display interfaces, camera inputs, and high-speed data connections all suffer from loss and reflection, and they now coexist with switching power supplies on the same assembly. Differential impedance control becomes a determinant of whether the product is stable in the field, with demanding designs moving toward plus or minus five percent control.

Long internal connections. A classroom display is physically large. Signals must travel from the main board to the display, the touch layer, the camera module, and the audio system across distances that a phone never encounters. Rigid-flex and flexible circuits reduce the wiring harness and connector count that would otherwise be required, and they simplify assembly in a product where internal cabling is a significant cost and reliability factor.

Power and thermal. A more capable processor, a bright large-format display, and an audio system raise total power. Power management boards must carry higher current, which means heavier copper, more robust plated barrels, and thermal designs that spread heat across the assembly rather than concentrating it. Interactive displays operate for hours at a time in rooms without dedicated cooling, so thermal margin matters.

None of these requirements is unique to education hardware. They are the same pressures that appear in automotive cabins, industrial control panels, and commercial display products, which is why the capabilities developed for consumer and industrial terminals transfer directly to this category. Confirming the combination, high-density interconnect alongside heavy copper for power and flexible interconnect for the long internal runs, is a capability question rather than a single specification, and it should be verified in capability terms before the design is frozen.

Competition Shifts From Boards to Whole Assemblies

As terminal complexity rises, the manufacturing difficulty moves beyond the bare board.

Dense system on chip packages, fine-pitch components, and multiple interface chips are placed close together in a panel product. That makes assembly quality a direct determinant of overall yield. Paste volume, placement accuracy, and hidden joint quality under ball grid array packages all influence whether a board functions, and a marginal joint in a classroom display becomes a field failure that requires a service visit rather than a warranty swap.

For export-oriented products, the requirement extends further. Shipments to different markets must satisfy different regulatory and quality expectations, and the products are typically produced in volume over an extended period. That makes batch-to-batch consistency a commercial requirement, not only an engineering aspiration. A defect rate that appears acceptable in a sample becomes a service cost when multiplied across a large installed fleet, and the manufacturer’s ability to bound a problem precisely depends on whether production records can be traced to individual units.

These pressures push supply chains from purchasing bare boards toward purchasing assemblies. A manufacturer that supplies only fabricated boards leaves the customer to coordinate assembly, inspection, and test with a second supplier, and every interface between suppliers is a place where engineering time is consumed and where responsibility for a defect becomes ambiguous. The more complex the product, the more valuable it becomes to hold board fabrication, SMT assembly, and test within one organisation, with inspection covering the failure modes that matter at each stage.

What Buyers Should Evaluate

For teams developing AI-enabled terminal products, several evaluation points follow from the above.

Match capability to the design’s actual constraint. A product whose difficulty is density needs high-density interconnect and fine-line capability. One whose difficulty is power needs heavy copper and thermal design. One whose difficulty is signal integrity needs low-loss material and tight impedance control. Identifying which constraint governs the design, and choosing a supplier who treats it as routine, avoids the most common source of prototype disappointment.

Confirm materials and stackup before layout. The laminate a design assumes determines both performance and availability, and the stackup must be producible to the required tolerance. Where the loss budget allows, hybrid stackups that concentrate advanced laminate on high-speed layers reduce cost and material risk simultaneously.

Design the inspection flow with the board. Dense packages hide their joints, and mixed-technology assemblies, combining surface mount with through-hole and connector installation, introduce additional failure modes. Paste inspection, optical inspection, X-ray, and electrical test cover different risks, and traceability ties the results to individual units. That combination is what a defined test strategy provides, and it belongs inside a documented quality management system rather than being assembled project by project.

Plan for compliance across markets. Export products must satisfy safety, electromagnetic compatibility, and environmental requirements in each destination market. Those approvals apply to the finished product, and the board supply chain’s contribution is material compliance documentation plus manufacturing records demonstrating that shipped product matches the approved design. Suppliers who produce that evidence routinely make multi-market distribution considerably easier.

Treat serviceability as a design input. A large panel product installed in a school is expensive to return. Designing for predictable assembly quality, and for joints that can be verified rather than assumed, reduces the service burden over the product’s life.

The broader pattern is that AI capability is spreading from infrastructure into ordinary products, and each product it reaches inherits a higher baseline of electronic complexity. An interactive blackboard with on-device inference is not a server, but it carries the same design pressures in reduced form: denser boards, faster interfaces, higher power, and an expectation of consistent quality across volume production. Manufacturers who can address density, power, and signal integrity together, and who can prove it with data, are positioned for a category that is growing in several markets at once.

Frequently Asked Questions

Why does adding AI to a classroom display increase PCB complexity? On-device inference requires a more capable processor with more memory and interfaces, which increases power, raises component density, and adds high-speed links, often requiring separate computing, display, touch and power boards.

What board technologies do interactive displays typically use? High-density interconnect for dense processor and memory areas, heavy copper and thermal design in power sections, and rigid-flex or flexible circuits to cover the long internal distances in a large panel.

Why does impedance control matter on a display product? High-resolution display links, camera inputs and high-speed data interfaces suffer from loss and reflection, so controlled differential impedance determines whether the product remains stable across temperature and volume.

Why do manufacturers move from board supply to assembly supply? Because assembly quality now determines product yield. Consolidating fabrication, assembly and test removes supplier interfaces where engineering time is lost and defect responsibility becomes ambiguous.

What should an export-focused programme verify? Material compliance documentation that is current, manufacturing records showing shipped product matches the approved design, and inspection and traceability practices that can bound any field issue precisely.
