With the rapid growth of energy storage systems (ESS) and high-voltage battery applications, customers increasingly require high-reliability Battery Management System (BMS) PCBAs capable of handling:
- High voltage (HV) and large current loads
- Long-term continuous operation
- Intelligent monitoring and communication
- Compact multi-board integration

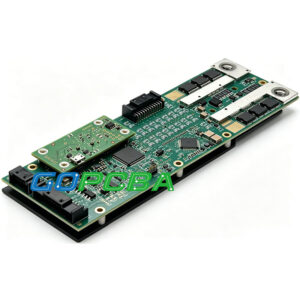

This project focuses on a custom multi-board BMS PCBA solution, designed for a high-power energy storage application, combining power control, system management, and advanced thermal design.
System Architecture Overview
The solution adopts a three-part stacked architecture, balancing power performance, signal integrity, and thermal reliability:
1. Power Control Main Board (10-Layer PCB)
Core of the system – High Voltage & High Current Domain
Key Functions:
- High-voltage / high-current power conversion loop
- Inverter driving (MOSFET / IGBT control)
- Hardware protection (OCP / OVP / SCP)
- Gate driver circuits
- External power output interface
- System-wide low-voltage power supply (DC-DC / LDO)
Engineering Characteristics:
- 10-layer PCB with power/control segregation
- Heavy copper design for high current handling
- Optimized current loop to reduce EMI
This board integrates power, control, and supply into a single robust platform.
2. Extension Board (4-Layer PCB)
Smart Interface & Auxiliary Control Layer
Key Functions:
- Auxiliary power management (Aux Power)
- Bluetooth / WiFi gateway (remote monitoring & OTA)
- Leak detection (enhanced system safety)
- Auxiliary I/O interfaces (sensor & control expansion)
Engineering Characteristics:
- Signal-focused layout for low-noise communication
- Isolation from power board to minimize interference
This board enables system intelligence and expandability.
3. Metal Heat Sink (Thermal Structure)
Critical Thermal Management Component
Specifications:
- Material: Aluminum / Copper
- Type: Mechanical + thermal conduction structure
Functions:
- Efficient heat transfer from power devices
- System-level thermal dissipation
- Ensures long-term operational stability
This component directly impacts system reliability and lifespan.
Key Engineering Challenges
Designing and manufacturing this type of BMS PCBA involves several critical technical challenges:
Challenges:
- PCB overheating due to insufficient copper thickness
- Poor current loop design causing EMI issues
- Insulation risks under high voltage
Our Solutions:
- Heavy copper PCB (2–6 oz) with parallel vias
- Optimized current path and loop minimization
- Strict creepage & clearance design compliance
Avoided Risks: PCB burning, dielectric breakdown, unstable operation
Challenges:
- Localized overheating of MOSFET/IGBT
- Inefficient heat transfer to heat sink
- Thermal degradation over time
Our Solutions:
- End-to-end thermal path design (PCB → TIM → Heat Sink)
- Precise alignment of power devices with heat sink
- Controlled application of thermal interface materials
Avoided Risks: Overheating, derating, premature failure
Challenges:
- Board-to-board connector instability
- Mechanical stress and vibration issues
- Signal and power interference
Our Solutions:
- Automotive-grade board-to-board connectors
- Mechanical reinforcement (screws + positioning posts)
- Layered routing strategy for signal integrity
Avoided Risks: Intermittent faults, difficult field failures
Challenges:
- Switching noise affecting communication modules
- Wireless instability (Bluetooth/WiFi)
- Sensor signal drift
Our Solutions:
- Physical separation of power and signal domains
- Ground partitioning and shielding design
- Dedicated RF layout optimization
Avoided Risks: Communication failure, false triggering, system instability
Challenges:
- Multi-rail interference (12V / 5V / 3.3V)
- MCU reset due to transient spikes
- Power sequencing issues
Our Solutions:
- Hierarchical power architecture (Main + Aux Power)
- Controlled startup/shutdown sequencing
- Power integrity (PI) optimization
Avoided Risks: System crashes, unexpected resets, control failure
Our PCBA Manufacturing Advantages
As a professional PCBA manufacturer, we go beyond assembly to deliver engineering-driven solutions:
- Identify design risks before prototyping
- Optimize layout for thermal and assembly feasibility
- Reduced iteration cycles and faster time-to-market
- SMT + THT hybrid process
- Large copper area soldering capability
- X-ray inspection for hidden solder joints
- Ensured soldering reliability for power devices
- Integrated assembly of PCB and heat sink
- Standardized TIM application process
- Torque-controlled fastening
- Consistent and reliable thermal performance
- Functional testing under real load conditions
- Burn-in and aging tests
- Communication and control validation
- Problems identified before field deployment
- Conformal coating (moisture & corrosion protection)
- High-voltage testing (Hipot)
- Full production traceability
- Long-term reliability in harsh environments
Application Scenarios
This custom BMS PCBA solution is ideal for:
- Energy Storage Systems (ESS)
- Commercial & Industrial Energy Storage (C&I)
- Solar + Storage Hybrid Systems
- High-voltage battery platforms
- Industrial power control systems
Project Value & Results
By combining multi-layer power PCB design, intelligent extension modules, and thermal engineering, we helped the customer achieve:
- Stable operation under high voltage and high current
- Improved system safety and protection
- Enhanced communication and remote monitoring capability
- Extended product lifespan
- Reduced field failure rate
This project demonstrates that a high-performance BMS PCBA is not just about circuit design—it requires:
- Power engineering expertise
- Thermal management integration
- Manufacturing precision
- System-level validation
We deliver not just PCBA products, but complete, reliable engineering solutions that help customers reduce risk, accelerate deployment, and ensure long-term success.
