Electrochemical Migration and Dendrite Growth: PCB Spacing Design and Surface Finish Selection in High Humidity Environments

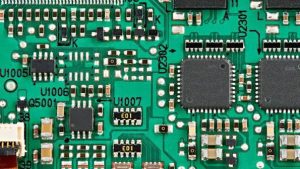

Electrochemical migration, or ECM, is a typical failure mechanism of printed circuit boards under the coexistence of high humidity, bias voltage, and ionic contamination. Its core manifestation is the formation of conductive dendrites between metal conductors, ultimately leading to increased leakage current, decreased insulation resistance, and even short circuits. This phenomenon is particularly prominent in modern high-density interconnect PCB. As device pin pitch continues to shrink to 0.4 mm or even below 0.3 mm, micrometer-level gaps become ideal channels for capillary penetration of electrolyte and electric field driven ion migration. ECM is not a simple physical short circuit. It is a multi-step electrochemical process including anodic dissolution, ion migration, cathodic reduction, and dendrite deposition. Its kinetics are coupled by multiple factors such as environmental temperature and humidity, applied voltage gradient, PCB surface ion residue such as Cl, Na, and organic acids, substrate hygroscopicity, and copper surface state.

ECM Mechanism and Key Threshold Conditions

ECM begins with the formation of an adsorbed water film on the conductor surface. When relative humidity, or RH, exceeds 60 percent, the surface of conventional epoxy glass fiber substrates such as FR-4 can adsorb single or multiple layers of water molecules. When RH is 85 percent or more and soluble ionic contaminants exist, the conductivity of the water film rises significantly, forming a continuous electrolyte path. At this time, if there is DC or low-frequency AC bias between adjacent conductors, with a typical threshold of electric field strength above 5 V per mm, the Cu anode undergoes oxidation reaction: Cu becomes Cu2+ plus 2e-. Cu2+ migrates toward the cathode under the electric field and is reduced to metallic copper at the cathode, such as an adjacent pad or trace: Cu2+ plus 2e- becomes Cu. This reduction process is not uniform deposition but preferentially nucleates in local electric field enhancement areas such as edges, scratches, and micropores, gradually growing into tree-like, whisker-like, or moss-like conductive dendrites. Experiments show that under 85 degrees Celsius and 85 percent RH, 5 V bias, and 0.2 mm line spacing, the ECM median time to failure of uncleaned PCB can be as short as 72 hours. For samples verified by ion chromatography with residual NaCl less than 0.2 micrograms per square centimeter and using hydrophobic surface treatment, the median time to failure can be extended to more than 2,000 hours.

Engineering Constraints and Optimization Strategies for PCB Spacing Design

Although IPC-2221B and IEC 60664-1 standards specify minimum electrical clearances under different pollution levels, their defaults are based on clean and dry environments and do not fully quantify the coupling effect of humidity, ions, and voltage. In actual design, the concept of effective electrical clearance needs to be introduced. For non-sealed applications such as industrial control panels and outdoor communication modules, it is recommended to increase the surface mount pad spacing, or solder mask defined, to at least 1.5 times the IPC Class 2 recommended value. For example, in a 5 V system, the traditional 0.2 mm line spacing needs to be upgraded to 0.3 mm or more. For 12 V and above systems, line spacing of 0.5 mm or more is recommended, and the solder mask is required to completely cover the conductor sidewalls, with solder mask encroachment of 0.05 mm or more, to suppress lateral expansion of the water film along the copper surface. More critically, the pseudo spacing trap must be avoided. For example, in the solder ball array under a BGA, although the solder ball center spacing reaches 0.8 mm, because flux residue and condensed water accumulate in the gaps between solder balls, the measured ECM risk is actually higher than that of surface traces. At this time, underfill and conformal coating should be combined for collaborative protection.

Decisive Influence of Surface Finish on ECM Resistance

Surface finish is not only related to solderability but also directly regulates the electrochemical activity and ion adsorption energy of the copper surface. Although ENIG, or electroless nickel immersion gold, provides a flat surface, its Ni-P layer has micropores, and the gold layer thickness is usually only 0.05 to 0.1 micrometers, which cannot completely block water vapor penetration. More seriously, the Ni layer is prone to selective corrosion in humid environments, generating alkaline products such as Ni(OH)2, further promoting Cu2+ migration. In contrast, ENEPIG, or electroless nickel electroless palladium immersion gold, significantly reduces porosity and improves passivation ability by introducing a 0.03 to 0.08 micrometer palladium intermediate layer. Its ECM life is 3 to 5 times longer than that of ENIG. For cost-sensitive applications, OSP, or organic solderability preservative, shows unique advantages. Its nitrogen-containing heterocyclic compounds, such as benzotriazole derivatives, form a monomolecular coordination film on the copper surface, which both inhibits Cu oxidation and reduces water molecule adsorption enthalpy. Third-party accelerated tests show that under 85 degrees Celsius, 85 percent RH, and 10 V bias, the insulation resistance decay rate of high-quality OSP with Cu2+ dissolution less than 0.5 nanograms per square centimeter per hour is only one quarter that of ENIG. However, attention must be paid to OSP film thickness uniformity, with a target of 0.2 to 0.5 micrometers, and storage conditions, with a recommended limit of 40 degrees Celsius and 60 percent RH and a shelf life of 6 months or less.

Key Nodes of Process Control and Failure Verification

ECM prevention and control must run through the entire manufacturing process. In substrate selection, low hygroscopicity materials should be preferred, such as PP with less than 0.5 percent, compared with standard FR-4 at 1.8 percent, and prepreg with low ion content, with resin content Cl less than 10 ppm. In the solder mask process, ensure sufficient curing of green oil with Tg of 130 degrees Celsius or more to avoid hydrolysis of residual epoxy groups producing acid. Acrylic modified solder mask ink is recommended, with a hydrophobic contact angle greater than 90 degrees, which can delay water film formation. In the cleaning stage, deionized water with resistivity of 18.2 megohm centimeters or more must be used together with megasonic cleaning. Ion residue by ROSE test must be less than 1.56 micrograms per square centimeter NaCl equivalent. Verification methods should not rely only on room temperature insulation resistance testing. Instead, the humidity bias test of JEDEC JESD22-A121A standard should be performed: 130 degrees Celsius, 85 percent RH, 96 hours, applying rated working voltage, and synchronously monitoring leakage current changes. Typical acceptance criteria are: initial insulation resistance of 10 to the 10th power ohms or more, insulation resistance decay after testing of less than 50 percent, and no step-like leakage current increase with delta I greater than 10 nanoamperes per second. In addition, scanning electron microscopy combined with energy dispersive spectroscopy can visually identify dendrite composition, mainly Cu, O, and N, and growth paths, providing direct evidence for root cause analysis.

Emerging Protection Technologies and Design Paradigm Evolution

For harsh scenarios such as 5G base stations and new energy vehicle electronic controls, the industry is promoting iterative protection technologies. Nano hydrophobic coatings such as SiO2 and PDMS composite films have achieved mass production application. Their thickness is only 200 to 500 nanometers, moisture permeability is less than 0.1 grams per square meter per day, and they do not affect high-frequency signal integrity. Measurements show that this coating can delay the ECM initiation time of 0.25 mm spacing PCB under 95 percent RH to more than 168 hours. Three-dimensional structure optimization has also become a trend. By adding ground guard traces in high-risk areas such as power and ground plane edges, with a width of 0.3 mm or more and a spacing from signal lines of 0.2 mm or more, the electric field can be shunted and the local voltage gradient reduced. More cutting-edge exploration focuses on self-healing materials. Microencapsulated corrosion inhibitors such as mercaptobenzothiazole are embedded in the solder mask resin. When water vapor penetration causes local pH decrease, the capsules rupture and release corrosion inhibitor molecules, dynamically repairing the copper surface passivation film. Although such technologies are in the engineering verification stage, they have shown the paradigm potential of shifting ECM protection from passive isolation to active response.
