As electronic information technology continues to advance rapidly, industries such as telecommunications, medical equipment, industrial control, data storage, aerospace, and consumer electronics are experiencing significant growth. Companies across the electronics supply chain are continuously improving their manufacturing capabilities to meet increasingly demanding customer requirements.

At the same time, electronic products are becoming smaller, more highly integrated, and faster. These trends are placing increasingly stringent requirements on multilayer PCBs, particularly in terms of line width, line spacing, copper thickness, registration accuracy, and manufacturing stability. Fine-line technology has therefore become an important capability for manufacturers seeking to produce high-density and high-performance circuit boards.

1. Development Trends in Fine-Line Technology

Different multilayer PCB applications have different requirements for fine-line technology. Aerospace, medical, and other high-reliability applications generally prioritize reliability and mechanical robustness. These products may use thicker copper, wider traces, and larger pads, with typical circuit designs using line widths of approximately 4 mil or above.

Consumer electronics, by comparison, place greater emphasis on compact size, high functionality, and complex circuit integration. These products typically use thinner copper and finer circuit patterns. Depending on the application and manufacturing process, circuit widths may fall within the range of approximately 0.05 mm to 0.075 mm.

Telecommunications products generally fall between these two categories, requiring a balance between reliability, signal performance, density, and manufacturing cost.

IC packaging substrates and other high-density interconnection products have even more demanding requirements. Because these boards serve as carriers for integrated circuit components, their line density must correspond to the requirements of advanced IC packaging. Depending on the application, line dimensions may range from several micrometers to several tens of micrometers.

As electronic devices continue to become smaller and more integrated, the demand for fine-line PCB manufacturing will continue to increase. Manufacturers must therefore improve not only lithography resolution but also plating, etching, material control, and process stability to achieve consistent production results.

2. Factors Affecting Fine-Line Processing of Multilayer PCBs

The formation of circuit patterns is one of the most important stages in PCB manufacturing. The quality of the final fine-line circuit is influenced by several factors, including photoresist selection, photoimaging equipment, cleanroom conditions, exposure accuracy, copper thickness, and operator experience.

For inner-layer circuit fabrication, dry-film and wet-film photoresists are commonly used. Wet-film photoresist can provide a relatively thin coating and short exposure requirements, with the source material indicating a resolution of approximately 0.05 mm/0.05 mm under suitable conditions. However, its performance is highly sensitive to environmental conditions and operating procedures. Scratches, dust, uneven coating, or contamination can result in defective openings and affect circuit quality.

Wet-film coating and drying also require relatively long processing times, making the process less suitable for certain prototype or fine-line applications.

Dry film, in contrast, generally has a more uniform thickness and provides better process consistency. It can also support fine-line pattern formation when combined with suitable exposure equipment and controlled process parameters. For this reason, many manufacturers use dry film when processing higher-density and fine-line PCB products.

3. Exposure Technology for Fine-Line Multilayer PCBs

Exposure is a critical factor in determining the resolution and dimensional accuracy of circuit patterns. The exposure process is closely related to the cleanliness of the production environment, the type of exposure equipment, film quality, alignment accuracy, and operator experience.

Exposure systems can generally be categorized according to their light-source characteristics. Parallel-light exposure systems provide relatively uniform energy distribution and high resolution, making them suitable for applications requiring precise fine-line pattern reproduction. However, the equipment investment and operating requirements can be higher.

Exposure equipment can also be classified according to its operating method as manual, semi-automatic, or automatic. Automatic exposure systems generally provide higher alignment accuracy, stronger dust-removal capabilities, more consistent film handling, and reduced dependence on operator skill.

For high-volume multilayer PCB production, automated exposure equipment can help improve process consistency and production efficiency. For particularly fine-line applications, however, exposure capability must be evaluated together with photoresist characteristics, panel dimensional stability, artwork quality, and registration accuracy.

4. Plating Technology and Fine-Line Processing

Copper thickness is another important factor affecting fine-line processing. Before etching, the amount and distribution of copper on the panel directly influence the achievable line width and spacing. Excessive copper thickness can make fine-line etching more difficult and increase the risk of undercutting and dimensional deviation.

Therefore, PCB plating capability plays an important role in fine-line manufacturing. Key plating characteristics include plating uniformity, throwing power, current distribution, and the ability to maintain consistent copper thickness across the panel.

According to equipment configuration and production method, PCB electroplating systems can generally be categorized into vertical plating, vertical continuous plating (VCP), and horizontal plating systems.

Vertical plating systems can provide good plating capability for certain applications, while VCP and horizontal plating systems can offer advantages in production efficiency and thickness uniformity depending on the product structure and process requirements.

For high-density multilayer PCBs, stable copper thickness is particularly important because variations in copper distribution can directly affect subsequent etching. Therefore, plating equipment selection should be based on the required line width, copper thickness, panel size, production volume, and overall process capability rather than equipment type alone.

5. Etching Technology for Fine-Line Multilayer PCBs

Etching is one of the most critical processes in fine-line PCB manufacturing because it determines the final trace width and spacing after unwanted copper has been removed.

PCB circuit fabrication processes can generally be classified into subtractive, semi-additive, and additive approaches. In conventional PCB production, the subtractive method is widely used. In this approach, a photoresist or other etch-resistant material protects the desired circuit pattern while the exposed copper is removed during etching.

The semi-additive process is also widely associated with high-density circuit manufacturing. Compared with conventional subtractive processing, the amount of copper that must ultimately be etched can be reduced, which provides advantages when forming finer traces and spaces.

However, the pattern-plating process introduces its own manufacturing challenges. Plating uniformity can be influenced by the distribution of circuit patterns, panel geometry, current density, and process conditions. Some products may therefore require tighter control of plating parameters and longer process times.

The choice between subtractive and semi-additive processing should be based on the required line width and spacing, copper thickness, product structure, production volume, equipment capability, and cost objectives.

6. Process Control Is Essential for Fine-Line PCB Manufacturing

Fine-line manufacturing cannot depend on a single process. Instead, it requires coordinated control throughout the entire production sequence.

For example, even when the exposure system has sufficient resolution, poor copper thickness control can still cause etching problems. Similarly, excellent etching equipment cannot compensate for inaccurate exposure, poor photoresist adhesion, or excessive dimensional variation in the base material.

For this reason, manufacturers producing multilayer PCBs should establish coordinated controls covering material preparation, inner-layer imaging, exposure, lamination, plating, etching, registration, inspection, and final quality verification.

Particular attention should be given to:

• Line width and line spacing
• Copper thickness uniformity
• Photoresist adhesion and resolution
• Exposure and registration accuracy
• Etching factor and undercut control
• Plating uniformity
• Panel dimensional stability
• Cleanroom and contamination control
• Automated optical inspection and process monitoring

Through continuous monitoring and statistical process control, manufacturers can identify process deviations before they develop into large-scale production defects.

7. Kingda’s Approach to High-Precision Multilayer PCB Manufacturing

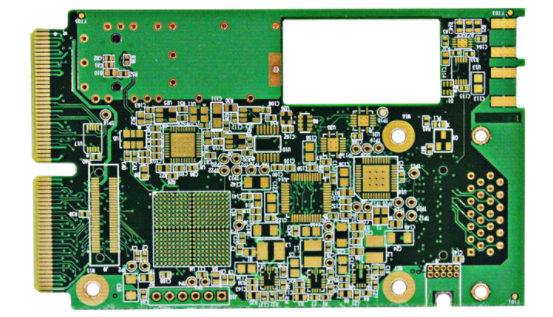

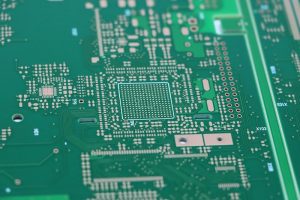

As electronic products continue to move toward higher density, miniaturization, and higher operating speeds, the manufacturing requirements for high-precision multilayer PCBs are becoming increasingly demanding.

Kingda focuses on the development and manufacturing of high-precision PCB products and can optimize manufacturing processes according to different product structures and technical requirements. For fine-line applications, process capability must be considered as a complete system rather than as an isolated production step.

By combining appropriate materials, imaging technology, plating processes, etching control, registration management, and inspection procedures, Kingda can support the production requirements of increasingly complex circuit designs.

Conclusion

The development of fine-line PCB technology is closely connected with the continued miniaturization and integration of electronic products. From consumer electronics and telecommunications equipment to medical, aerospace, and high-density packaging applications, different products require different levels of circuit density and manufacturing precision.

Achieving reliable fine-line performance requires more than advanced exposure equipment. PCB manufacturing must maintain stable control over photoresist processing, exposure, copper plating, etching, dimensional stability, and registration accuracy throughout the production process.

As circuit designs continue to become denser and more complex, manufacturers with strong process control and high-precision manufacturing capabilities will be better positioned to meet the evolving requirements of multilayer PCBs and next-generation electronic products.
