During the mass-production stage of industrial control, energy-storage, automotive, and export-oriented consumer electronics projects, engineers and procurement teams often make a simple assumption: a halogen-free PCB means a circuit board that contains absolutely no halogens.
In practice, this definition is more nuanced. A PCB can be manufactured with a halogen-free laminate but still fail a finished-product halogen requirement because of other materials or process inputs. Differences between prototype and mass-production materials can also create compliance risks.
Understanding the definition of halogen-free PCBs, applicable standards, testing methods, material requirements, and application boundaries is therefore an important first step in reliable PCB material selection.
1. A Halogen-Free PCB Does Not Mean Zero Halogen
In PCB applications, halogen control generally focuses on bromine (Br) and chlorine (Cl), particularly when evaluating halogenated flame-retardant systems. Fluorine and iodine are not automatically included in every PCB halogen requirement, so the applicable customer specification or standard must be confirmed before production.
Common industry specifications and material standards, including IPC and IEC-related requirements, may define halogen-free conditions using limits for bromine, chlorine, and their combined concentration. However, the exact limits and test methods can vary depending on the standard, revision, product specification, and customer requirement.
Therefore, engineers should avoid treating one numerical threshold as a universal definition for every project.
A second common misunderstanding is confusing halogen-free PCB requirements with lead-free requirements. These are separate compliance topics:
- Lead-free requirements primarily concern restricted substances such as lead in materials and soldering processes.
- Halogen-free requirements primarily concern the controlled use of halogen-containing compounds, especially brominated and chlorinated flame-retardant systems.
- A product can therefore be lead-free without being halogen-free, and vice versa.
Another important distinction is that a halogen-free laminate does not automatically guarantee a halogen-free finished PCB.
A finished PCB may contain multiple material systems, including:
- Copper-clad laminate
- Prepreg (PP)
- Solder mask
- Silkscreen or marking ink
- Surface-finish chemicals and process materials
- Adhesives or other special materials where applicable
For projects with a finished-board halogen requirement, the complete material chain should be controlled according to the applicable specification.

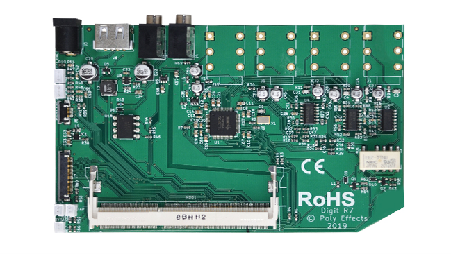

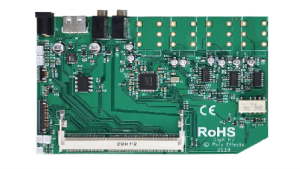

2. Why Halogen-Free Material Selection Matters in PCB Manufacturing
Traditional FR-4 systems may use brominated flame-retardant chemistry to achieve the required flammability performance. Many halogen-free laminates instead use phosphorus-, nitrogen-, or other flame-retardant systems.
The flame-retardant mechanism, resin chemistry, thermal performance, electrical characteristics, and processing behavior can therefore differ between material systems.
However, it is not technically appropriate to assume that every halogen-free laminate automatically has better thermal, electrical, or reliability performance than every conventional FR-4 material.
Engineers should evaluate the complete laminate specification, including:
- Tg and Td
- Z-axis CTE
- Dk and Df
- Moisture absorption
- CTI
- Copper peel strength
- Dimensional stability
- CAF resistance where applicable
- Thermal reliability
- Lamination and assembly compatibility
For high-speed or high-frequency designs, Dk/Df tolerance and loss characteristics may be more important than the halogen classification itself.
For high-voltage designs, CTI, creepage, clearance, insulation structure, and environmental conditions should be evaluated together.
Consequently, PCB material selection should be based on the actual electrical, thermal, mechanical, and environmental requirements rather than simply choosing a material because it is labeled halogen-free.
3. Which Projects Should Prioritize Halogen-Free PCBs?
The need for a halogen-free PCB is usually determined by a combination of customer specifications, market requirements, regulatory requirements, product risk, and environmental considerations.
Export-Oriented Products
Products manufactured for international customers may be subject to specific environmental specifications or restricted-substance requirements imposed by customers, brands, or contract manufacturers.
Even when a particular regulation does not explicitly require a finished PCB to be halogen-free, customers may include halogen restrictions in their supplier specifications.
For these projects, engineers should confirm the exact requirement before material procurement rather than assuming that an export product automatically requires a particular laminate grade.
Automotive and Energy-Storage Electronics
Automotive control units, battery-management systems, power electronics, and energy-storage equipment may operate under demanding temperature, vibration, humidity, and electrical conditions.
In these applications, material selection should consider thermal stability, insulation reliability, moisture resistance, CAF resistance, Z-axis CTE, and long-term reliability in addition to halogen content.
The decision should therefore be based on the complete product reliability profile rather than the halogen-free designation alone.
Industrial and High-Reliability Electronics
Industrial-control equipment may operate continuously for long periods or in environments with temperature and humidity fluctuations.
A suitable halogen-free laminate can be selected when required by customer specifications or product design objectives, but engineers should still verify Tg, Td, CTE, moisture absorption, CTI, and other relevant properties.
High-Speed and High-Frequency PCBs
For high-speed communication equipment, the choice of laminate should primarily be driven by signal-integrity requirements.
Parameters such as Dk stability, Df, copper roughness, resin content, glass-weave effects, impedance tolerance, and insertion loss may have a stronger influence on signal performance than whether the material is classified as halogen-free.
A halogen-free material can be an appropriate choice, but the material must still meet the electrical requirements of the design.
4. When Is a Halogen-Free PCB Not Necessarily Required?
Not every PCB project automatically needs a halogen-free material system.
For cost-sensitive products without a customer-specific halogen requirement, engineers may have more material choices. In such cases, the decision can be based on the required electrical performance, thermal conditions, reliability targets, environmental requirements, supply availability, and total manufacturing cost.

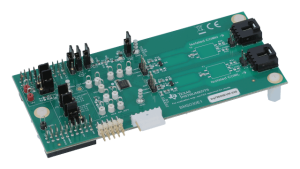

It is also important to avoid applying a universal percentage to the cost difference between halogen-free and conventional FR-4. Actual pricing depends on laminate grade, layer count, copper thickness, order volume, supplier, manufacturing process, and market conditions.
The correct approach is to compare the total PCB manufacturing cost rather than assuming that halogen-free materials always carry the same price premium.
5. Common Compliance Risks During Mass Production
One of the most common risks occurs when prototype and mass-production materials are not controlled under the same specification.
For example, a prototype may use a qualified halogen-free laminate, while mass production uses a different prepreg, solder mask, or marking ink. The resulting finished PCB may no longer meet the original customer requirement.
This is why a supplier’s laminate compliance report alone may not be sufficient when the customer specification applies to the finished PCB.
For batch production, engineers should establish a controlled documentation system covering:
- Approved laminate manufacturer and material series
- Core and prepreg specifications
- Solder-mask and marking-ink requirements
- Applicable halogen limits
- Test methods
- Certificate of Conformity (COC) requirements
- Batch traceability
- Change-control procedures
Any material substitution should be reviewed and approved before production rather than being implemented solely as a purchasing-cost reduction.
6. XRF Screening vs. Ion Chromatography Testing
Testing methodology is another area that can create misunderstandings.
X-ray fluorescence (XRF) is widely used as a rapid screening method for elemental analysis. It can be useful for incoming inspection and production monitoring, but its capability depends on the instrument, sample structure, calibration, and target elements.
Ion chromatography (IC) can provide quantitative analysis of specific halogen ions and may be used when more detailed laboratory verification is required.
Therefore, XRF and IC should not simply be described as “pass” and “fail” methods. They serve different purposes.
A practical quality-control strategy may include:
Incoming screening → material documentation review → production traceability → periodic laboratory verification → finished-product compliance records
For high-volume projects, retaining representative samples from production batches can also help support later investigation if a customer compliance issue occurs.
7. Define the Halogen-Free Requirement in the PCB Documentation
Writing only “halogen-free required” on the PCB fabrication drawing may leave too much room for interpretation.
A better approach is to define the requirement in the BOM, fabrication notes, purchasing specification, and quality agreement.
The documentation can specify:
- Applicable standards or customer specifications
- Required bromine and chlorine limits
- Whether the requirement applies to the finished PCB or only selected materials
- Approved laminate and prepreg systems
- Solder-mask and silkscreen requirements
- Required compliance documents
- Required test reports
- Material substitution approval procedures
This approach helps ensure that engineering, purchasing, PCB manufacturing, and quality teams are working from the same definition.
8. Halogen-Free PCB Selection Should Start With the Compliance Boundary
The first step in PCB material selection is not simply choosing a laminate model. Engineers should first establish what the project actually requires.
A practical evaluation process can be divided into four stages:
Stage 1: Define the requirement
Determine whether the halogen-free requirement comes from legislation, customer specifications, internal environmental policy, or product reliability objectives.
Stage 2: Define the controlled materials
Clarify whether the requirement applies only to the laminate or to the complete finished PCB, including prepreg, solder mask, silkscreen, and other relevant materials.
Stage 3: Verify technical performance
Compare Tg, Td, Z-axis CTE, moisture absorption, CTI, Dk/Df, copper adhesion, and other application-specific parameters.
Stage 4: Control mass production
Maintain approved material lists, batch traceability, compliance documents, change control, and periodic verification.
This process reduces the risk of a situation in which a prototype passes testing but a mass-production batch fails customer inspection.
9. Kingda’s Approach to Halogen-Free PCB Production
For projects requiring a halogen-free PCB, Kingda can integrate material requirements into the PCB engineering and manufacturing process.
The material specification can be reviewed together with the stackup, copper thickness, via structure, impedance requirements, thermal conditions, SMT process, environmental requirements, and reliability targets.
For mass production, controlling material consistency is particularly important. Approved laminate and prepreg specifications, process documentation, inspection requirements, and traceability should be established before volume production begins.
The objective is not simply to label a PCB as halogen-free, but to establish a clear and verifiable compliance boundary from material selection through manufacturing and final inspection.
By combining material verification, engineering review, process control, and production traceability, Kingda helps customers build a more consistent quality-control framework for halogen-free PCB projects.
