The rapid development of high-speed networking, wireless communications, and digital electronic systems has created increasingly demanding requirements for PCB performance. As data rates and operating frequencies continue to rise, conventional PCB materials and manufacturing methods may no longer provide sufficient electrical performance.

A properly selected high-frequency PCB plays an important role in maintaining signal quality, transmission stability, and long-term product reliability. For applications involving RF communication, high-speed data transmission, radar, telecommunications, automotive electronics, and other advanced systems, PCB material selection and manufacturing quality directly affect overall system performance.

Therefore, when selecting a high-frequency PCB, engineers should consider more than the basic board specifications. Material characteristics, service life, transmission-line design, interference control, manufacturing capability, and reliability should all be evaluated.

1. Consider PCB Service Life and Manufacturing Conditions

Every electronic circuit requires a reliable PCB platform. Even an excellent circuit design cannot achieve its expected performance if the PCB material or manufacturing process is unsuitable for the application.

When selecting a high-frequency PCB, the first consideration should be whether the material can meet the electrical, thermal, mechanical, and environmental requirements of the final product.

Material Selection

High-frequency circuits are more sensitive to PCB material properties than conventional low-frequency circuits. Important parameters include:

• Dielectric constant (Dk)
• Dissipation factor (Df)
• Thermal expansion coefficient
• Moisture absorption
• Copper surface roughness
• Dimensional stability
• Glass-transition temperature (Tg)
• Thermal conductivity

For high-speed and RF applications, stable Dk and low Df are particularly important because variations in dielectric properties can affect impedance, propagation delay, insertion loss, and signal attenuation.

The selection of high-frequency PCB materials should therefore be based on the actual operating frequency, signal speed, environmental conditions, and required reliability rather than simply choosing the lowest-cost material.

Service Life and Environmental Conditions

The expected service environment should also be considered.

For example, automotive, industrial, aerospace, and communication equipment may experience temperature fluctuations, vibration, humidity, or continuous operation for long periods. The selected PCB material must maintain stable electrical and mechanical properties under these conditions.

A material that performs well in laboratory conditions may not necessarily provide sufficient reliability in a demanding field environment.

2. Evaluate Transmission-Line Width and Impedance Control

Transmission lines are one of the most important elements in a high-frequency circuit.

As signal frequency and data rates increase, PCB traces can no longer be treated simply as conductive paths. They behave as controlled transmission lines, and their geometry and surrounding dielectric structure directly affect signal performance.

Important parameters include:

• Trace width
• Copper thickness
• Dielectric thickness
• Dielectric constant
• Trace spacing
• Reference-plane distance
• Via structure
• Copper surface roughness

These parameters work together to determine the characteristic impedance of the transmission line.

For a high-speed PCB, impedance must be controlled according to the requirements of the interface or RF system. Poor impedance control can cause signal reflection, insertion loss, ringing, timing errors, and reduced communication stability.

Why Trace Width Matters

Trace width affects both impedance and current-carrying capability.

If the trace is too narrow, resistance and insertion loss may increase. If the trace is too wide, the impedance may deviate from the required target.

Therefore, trace width should not be selected independently. It should be calculated together with the PCB stack-up and dielectric properties.

3. Pay Attention to PCB Signal Integrity

As operating frequencies increase, PCB signal integrity becomes a critical design consideration.

Signal integrity refers to the ability of a PCB to transmit electrical signals with acceptable amplitude, timing, impedance, and waveform quality.

Potential signal-integrity problems include:

• Signal reflection
• Crosstalk
• Excessive insertion loss
• Ground bounce
• Electromagnetic interference
• Power-supply noise
• Excessive via discontinuities

For high-speed interfaces, even a small discontinuity in the transmission path can negatively affect the signal.

Therefore, when selecting a high-frequency PCB, engineers should evaluate not only the material but also the manufacturer’s ability to maintain consistent dielectric thickness, trace geometry, registration accuracy, and impedance control.

4. Evaluate Interference Between Transmission Lines

Another important consideration is the ability of adjacent circuits to resist interference.

When two high-speed traces run too close or parallel for a long distance, electromagnetic coupling can occur. This may produce crosstalk and interfere with neighboring signals.

Proper layout practices should therefore include:

• Maintaining appropriate spacing between high-speed traces
• Minimizing unnecessarily long parallel routing
• Providing continuous reference planes
• Controlling return-current paths
• Separating sensitive analog and RF signals from noisy digital signals
• Using appropriate ground structures where necessary

For a PCB transmission lines design, trace spacing should be determined according to the stack-up, signal frequency, impedance requirements, and acceptable crosstalk level.

This is particularly important in densely routed high-frequency and high-speed boards.

5. Consider PCB Material Compatibility

Not every PCB material is suitable for every high-frequency application.

For example, some applications require low-loss materials, while others may prioritize thermal performance, dimensional stability, mechanical strength, or cost.

A reliable selection process should consider the following:

The best high-frequency PCB materials are therefore application-dependent rather than universally defined.

6. Check PCB Manufacturing Capability

Material selection alone cannot guarantee PCB performance.

The manufacturer’s actual process capability is equally important. A high-performance material can still produce an unreliable board if the manufacturing process is poorly controlled.

Before selecting a supplier, engineers should evaluate its capabilities in:

• Multilayer lamination
• Controlled impedance
• Fine-line fabrication
• Laser drilling
• Microvia manufacturing
• Copper plating
• Via filling
• Registration control
• AOI inspection
• Microsection analysis
• Electrical testing

For advanced PCB manufacturing, process consistency is especially important because high-frequency boards are often more sensitive to dimensional and material variations.

The supplier should also be able to provide appropriate engineering support during material selection, stack-up development, and design-for-manufacturing review.

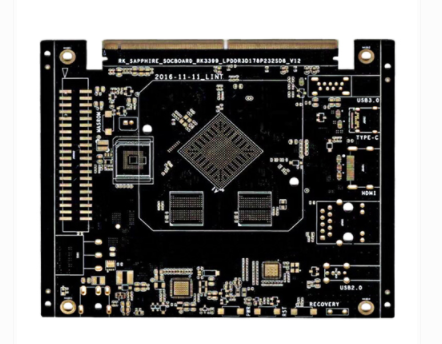

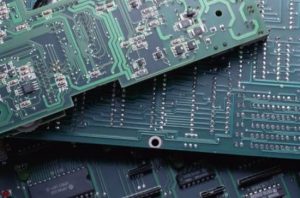

7. Consider PCB Reliability

Reliability is another essential factor when choosing a high-frequency PCB.

A PCB used in telecommunications, automotive electronics, industrial equipment, medical devices, or aerospace systems may need to operate continuously for years.

Reliability should therefore be evaluated from several perspectives:

Thermal Reliability

Repeated heating and cooling can create mechanical stress between copper, dielectric materials, and other structures.

The PCB should have suitable thermal expansion characteristics for its intended application.

Mechanical Reliability

The board must withstand mechanical stress during assembly, installation, transportation, and operation.

Electrical Reliability

Stable impedance, insulation resistance, dielectric performance, and interlayer connections are essential for high-frequency applications.

Environmental Reliability

Depending on the application, the PCB may need to withstand:

• High temperature
• Low temperature
• High humidity
• Vibration
• Thermal cycling
• Corrosive environments

Selecting the appropriate PCB reliability requirements during the early design stage can reduce the risk of field failures.

8. Balance Performance and Cost

High-frequency materials and advanced PCB manufacturing processes are generally more expensive than conventional FR-4 solutions.

However, selecting the lowest-cost PCB does not necessarily reduce the overall product cost.

A PCB with inadequate electrical performance may result in:

• Signal-integrity problems
• Increased debugging time
• Higher rework rates
• Additional shielding requirements
• Lower product reliability
• Increased field failure rates

Therefore, PCB selection should be based on total application requirements rather than material price alone.

A cost-effective solution is one that provides sufficient electrical performance and reliability without unnecessary material or manufacturing complexity.

9. Work With an Experienced PCB Manufacturer

For complex high-frequency applications, cooperation between the PCB designer and manufacturer should begin early in the development process.

An experienced manufacturer can help evaluate:

• Material selection
• Layer stack-up
• Controlled impedance
• Trace width and spacing
• Via structures
• Lamination parameters
• Manufacturing tolerances
• Signal-integrity risks
• DFM considerations

Early engineering communication can identify potential manufacturing problems before production begins.

This is especially important for high-frequency boards involving fine traces, multilayer structures, HDI technology, or strict impedance requirements.

10. Kingda High-Frequency PCB Manufacturing

Kingda provides PCB manufacturing solutions for demanding electronic applications, including high-frequency, high-speed, multilayer, and high-density circuit boards.

For customers selecting a high-frequency PCB, Kingda can support the evaluation of material systems, layer stack-up, impedance requirements, manufacturing tolerances, drilling structures, copper plating, and inspection requirements.

By combining material selection with controlled PCB manufacturing processes, manufacturers can achieve more stable electrical performance and better production consistency.

For advanced applications, the objective is not simply to manufacture a PCB that meets the drawing specifications. The manufacturing process must also ensure that the electrical, mechanical, and reliability requirements of the final product are consistently achieved.

Conclusion

Choosing the right high-frequency PCB requires a comprehensive evaluation of material properties, transmission-line design, signal integrity, interference control, manufacturing capability, and long-term reliability.

The most important considerations include selecting appropriate high-frequency PCB materials, maintaining controlled impedance, optimizing PCB transmission lines, minimizing interference, and working with a manufacturer capable of maintaining tight process tolerances.

As electronic systems continue to move toward higher frequencies, faster data rates, smaller form factors, and greater integration, PCB selection will become increasingly important.

By evaluating both material performance and manufacturing capability at the beginning of the project, engineers can build a more reliable foundation for high-speed and high-frequency electronic products.
