Medical Electronics PCB Design Outsourcing: What Buyers Verify

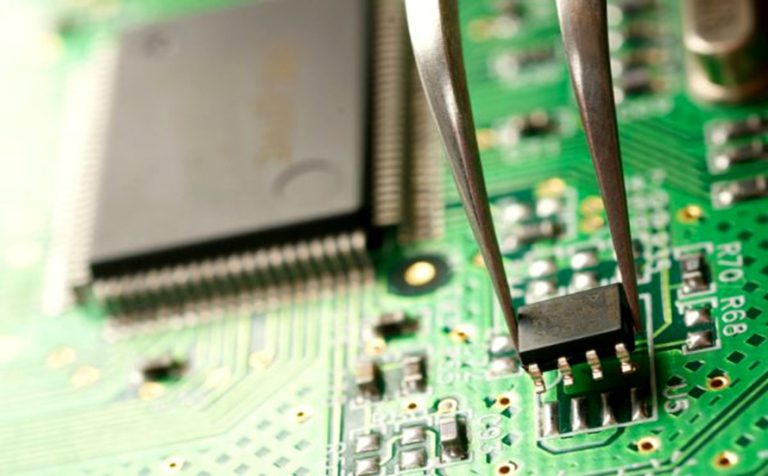

Medical electronics projects are judged on evidence. A board that works is not enough; the team has to be able to show how the design was reviewed, which rules were applied, what changed between revisions, and who approved each change. That is why medical electronics PCB design outsourcing asks different questions than a consumer project, and why the cheapest quotation is rarely the one that survives an audit.

The boundary matters as well. An outsourcing partner can own layout, manufacturing data and process control, but it cannot take responsibility for device classification, clinical requirements or regulatory submission. The customer owns the risk assessment; the design partner owns the design record that supports it.

What Makes Medical Board Design Different

The first difference is risk. A monitoring device and a life-support system are not the same engineering problem, and the design controls applied to each have to match the risk level. A supplier that treats every board with the same template will either over-engineer the simple product or under-document the critical one.

The second is the environment of use. Cleaning agents, repeated sterilisation, humidity, patient contact materials and electromagnetic compatibility with other equipment all influence material selection, coating and layout choices.

The third is change control. A revision that is invisible in a consumer product becomes a documented event in a medical one, with a defined reason, an impact assessment and a record of what was verified afterwards.

The Documentation That Has to Exist

Design traceability is not a single file. It is the chain that connects a requirement to a design decision and then to a verification result. In practice, that means an input document that states the requirements, a design description that shows how they were met, review records that show who checked what, and verification evidence such as test results or analysis.

For layout work specifically, the useful artifacts include the stackup with its impedance targets, the design rule set with the reason each rule exists, a DFM report with the supplier responses, and the fabrication and assembly packages in a controlled revision. When a board fails a test months later, these are the files that allow the team to determine whether the fault is a design issue, a manufacturing deviation or a component problem.

Design review records deserve particular attention because they are the easiest to produce retrospectively and the easiest for an auditor to challenge. A review that lists the participants, the items checked, the issues found and the disposition of each issue has value; a signature on a title block does not.

Specialist Design House or Layout Studio

The choice depends on the board and on what the customer can do internally.

High-complexity boards with multiple power domains, high-speed interfaces, analog acquisition paths or strict isolation requirements need a team with a formal rule review and cross-checking process, because a single engineer cannot hold all of those constraints in view while routing. The questions to ask are who provides the rules, how critical nets are approved, which checks are recorded, and how revisions are compared.

Smaller boards with stable schematics, defined mechanics and mature rules can be handled by a smaller, more flexible team. In that case the checks shift to confidentiality, data backup, engineer substitution, source file delivery and how the design is independently reviewed. If the customer has no internal capability for final review, the partner should provide it rather than assume it exists.

In both cases, the working assumption should be a written project file that defines deliverables, formats, review points and acceptance criteria. Design for manufacturability is part of that agreement, not an optional extra, and it should be reviewed with the fabricator and assembler that will build the product rather than with the designer alone.

Where Manufacturing Continuity Matters

Medical products are usually produced in modest volumes with high documentation expectations, which makes the handover between design and production expensive. When the same organisation carries the design into medical PCBA manufacturing, the stackup, the impedance targets and the assembly constraints do not have to be re-established by a second supplier.

It also shortens the loop when a pilot build raises an issue. The question can be answered against the actual revision that was built, rather than against a package that was emailed and possibly modified on the way.

Processes that are common in medical assembly, such as conformal coating and controlled cleaning, are easier to schedule when the same team already understands the board. A partner that provides conformal coating as part of the assembly flow can plan coverage around components, connectors and test points instead of applying it as an afterthought.

<img src="https://www.gopcba.com/wp-content/uploads/2026/08/PCB-design-guidelines-for-high-speed.jpg" alt="medical PCBA inspection” />

Six Checks Before Signing

• Experience with boards of comparable complexity, including the design platform and the layer count involved.
• Ability to work from customer rules and to document the stackup, impedance and critical net decisions up front.
• Confidentiality, access control, data backup and revision management that can be described in writing.
• Cross-checking practice, inspection checklists and the records that accompany each delivery.
• Scope of deliverables, covering source files, Gerber data, pick-and-place coordinates and production documentation.
• Support after delivery, including fabrication, assembly, debugging and revision response.

Where those checks are confirmed, the relationship can be managed on content rather than on trust. Where they are vague, the project inherits an undocumented risk that will surface at the least convenient moment.

Planning the Prototype and the Production Handover

The first build of a medical board is not simply a functional test. It is also a check on the documentation that surrounds the design, which is why the prototype should be produced and inspected using the same revision-controlled data that the production build will use.

That means the assembly package is validated in the pilot run: the pick-and-place data matches the bill of materials, the polarity markings are legible on the physical board, the test points are accessible with the fixture that will be used in production, and the cleaning and coating steps do not obstruct anything. Working with a partner that provides prototype PCB assembly as a documented process rather than an ad hoc favour keeps those checks in the record.

The quality system behind the build matters for the same reason. A supplier whose routine includes incoming component inspection, process monitoring and traceable test results will produce the evidence that the design record needs, while a supplier that only issues a pass or fail note leaves the customer to reconstruct the story. Asking how a defect is documented, and what detail a customer receives when one occurs, tells you more about quality management than any certificate on a wall.

Finally, agree the revision strategy before the first order. Decide how a change is introduced, what has to be re-verified, and how the old and new versions are distinguished in the field. For a device that may remain in service for years, the ability to identify exactly which build a unit came from is part of the design, not an administrative detail, and it belongs in the same conversation as the PCB design and layout plan.

FAQ

Can a PCB design partner handle regulatory requirements? No. It can produce the design record and the verification evidence, but classification, clinical evaluation and submission remain with the device manufacturer.

How is medical design work priced? Usually on engineering time plus any analysis or test work, and the documentation scope should be quoted explicitly so that it is not treated as an optional addition.

What is the biggest cause of delay in these projects? Late changes. A requirement change after layout is complete forces a new review cycle, so defining the inputs early is the cheapest schedule protection available.

Should design and assembly use one supplier? It is not mandatory, but continuity removes one handover and keeps the revision history intact, which matters when the product is audited.

Summary

Medical electronics PCB design outsourcing is a documentation-led decision. Start with the risk level and the evidence the product will need, then select a partner that can produce that evidence as a normal part of the process instead of compiling it afterwards. Confirm the review structure, the deliverable list and the production handover in writing, and treat the manufacturing link as part of the design decision rather than a separate purchase.
