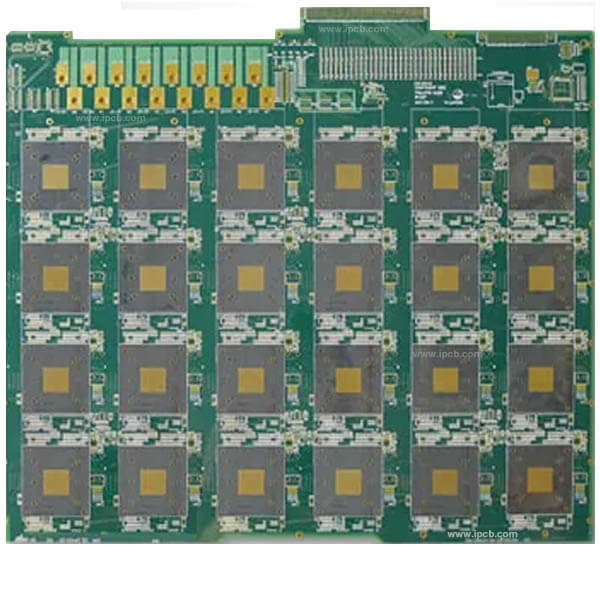

PCB design is closely related to manufacturing capability. A circuit board may be electrically functional in theory but still require design changes if its trace width, spacing, hole size, copper clearance, or mechanical features exceed the manufacturer’s process capability.

For this reason, designers should consider PCB Design Guidelines and Design for Manufacturing (DFM) requirements before completing the layout. Establishing practical manufacturing rules at the beginning of a project can reduce unnecessary design revisions, shorten production preparation time, and improve overall manufacturing yield.

The following guidelines summarize common considerations for conventional single-sided and standard PCB designs. The values should be treated as practical reference ranges rather than universal industry standards. Actual capabilities depend on the PCB material, copper thickness, board thickness, fabrication process, equipment, production volume, and manufacturer-specific process controls.

Kingda recommends confirming critical dimensions with the manufacturing team before releasing a design for production.

Why PCB Manufacturing Capability Matters

Modern PCB fabrication processes can support a wide range of trace widths, spacings, hole sizes, and mechanical structures. However, tighter design rules generally require more advanced processes and stricter process control.

For example, increasing copper thickness while maintaining very fine traces can make etching more challenging. Similarly, extremely small holes may require laser drilling or advanced mechanical drilling processes instead of conventional tooling.

Therefore, designers should establish their PCB Manufacturing requirements according to the actual application rather than simply selecting the smallest possible dimensions.

Important DFM considerations include:

• Trace width
• Trace Spacing
• Copper thickness
• Hole diameter
• Annular ring
• Pad-to-pad clearance
• Copper-to-edge clearance
• V-Cut geometry
• Carbon ink spacing
• Solder mask clearance
• Board thickness
• Manufacturing tolerances

Trace Width and Trace Spacing

Trace width and spacing are among the most important parameters in PCB fabrication.

The minimum trace width that can be manufactured reliably depends on copper thickness, etching characteristics, circuit density, line-to-space requirements, and production technology.

For conventional single-sided PCBs, the following values can be used as preliminary design references:

These values are not universal manufacturing limits. When smaller line widths or spacings are required, the designer should confirm the capability with Kingda before finalizing the PCB layout.

Why Copper Thickness Affects Trace Width

Thicker copper provides greater current-carrying capacity, but it also increases the difficulty of maintaining fine features during PCB etching.

For this reason, a design using 2 oz copper should not automatically apply the same minimum trace width used for a 0.5 oz or 1 oz board.

Trace width should also be determined according to current requirements, allowable temperature rise, impedance requirements, and manufacturing capability.

For high-current applications, designers should calculate the required conductor width rather than simply using the minimum manufacturable value.

Hole Size and Annular Ring

Hole dimensions are another important part of PCB manufacturing design.

Different drilling methods have different capabilities. Conventional mechanical drilling is widely used for through-holes, while very small interconnect structures may require laser drilling or other advanced processes.

For standard mechanically drilled boards, designers should avoid specifying extremely small finished-hole diameters unless the manufacturing process has been confirmed.

As a general design reference, conventional punched or mechanically processed boards may require relatively larger holes, while CNC drilling can support smaller diameters depending on tooling and production conditions.

For precision applications, the designer should specify the required finished-hole diameter together with the allowable tolerance.

Annular Ring

The annular ring is the copper area surrounding a drilled hole.

An insufficient annular ring can increase the risk of breakout during drilling or registration variation during manufacturing. Therefore, the pad diameter should provide adequate copper around the finished hole while considering drilling tolerance and layer registration.

For conventional 1 oz copper boards, an annular ring of approximately 0.10 mm or greater may be used as a preliminary reference. For thicker copper, larger features may be preferable depending on the fabrication process.

The final value should be confirmed with the PCB manufacturer, especially for high-density designs.

Pad-to-Pad Spacing

Adequate spacing between pads is important for both manufacturing and assembly.

As a practical reference, pad-to-pad spacing of approximately 0.20 mm or greater may be suitable for many conventional PCB designs. However, smaller spacing may be possible with advanced fabrication and assembly processes.

When determining pad clearance, designers should consider:

• Pad size
• Component package
• Solder mask registration
• Copper etching tolerance
• Solder paste requirements
• Assembly process
• Operating voltage
• Electrical safety requirements

For fine-pitch components, the pad geometry should be developed together with the component manufacturer’s land pattern recommendations and the PCB assembly process.

Copper-to-Board-Edge Clearance

Copper should not normally be routed too close to the finished PCB edge.

A copper-to-edge clearance of approximately 0.30 mm or greater can be used as a practical reference for conventional designs, but the appropriate value depends on the board outline, routing density, fabrication method, and mechanical processing.

Additional clearance may be required when:

• The board edge is routed mechanically
• V-groove depanelization is used
• Edge plating is required
• The board contains exposed copper near the edge
• The PCB will be installed inside a metal enclosure
• Electrical isolation from mechanical structures is required

For boards with unusual edge features, it is better to confirm the requirement during the DFM review.

Solder Mask Clearance

Solder mask openings must also provide sufficient clearance from surrounding copper features.

The required solder mask expansion depends on the PCB manufacturer’s solder mask process, registration capability, pad geometry, and design requirements.

Designers should avoid using excessively small solder mask clearances because registration variation can result in insufficient openings or solder mask encroachment.

For high-density PCB designs, solder mask expansion should be reviewed together with pad size and copper spacing rather than treated as an independent parameter.

V-Cut Design Guidelines

V-Cut, also known as V-scoring, is commonly used for PCB panelization and depanelization.

The V-Cut groove creates a controlled weakened line between individual PCB units, allowing the boards to be separated after assembly.

When using V-Cut, designers should consider the distance between the V-Cut line and nearby copper, traces, vias, and components.

A practical minimum copper or routing clearance of approximately 0.30 mm may be used as a starting point for some conventional designs, but the actual requirement depends on the V-Cut tool, board thickness, scoring depth, and manufacturing process.

V-Cut Test Lines

If a V-Cut test line or reference feature is required for tooling or inspection, it should be clearly identified in the manufacturing data.

The design should also define:

• V-Cut position
• Scoring direction
• Board thickness
• Required residual thickness
• Clearance from copper
• Clearance from components

The V-Cut depth is normally determined according to board thickness and the depanelization process rather than using a single universal ratio.

Therefore, the V-Cut structure should be reviewed with the PCB manufacturer before production.

Carbon Ink Circuit Design

Carbon ink is commonly used for applications such as conductive keypads, contact surfaces, switches, and wear-resistant conductive features.

When designing carbon ink circuits, sufficient clearance should be maintained between the carbon ink and nearby copper structures.

As a practical reference:

• Carbon ink should maintain approximately 0.30 mm clearance from copper-free areas where applicable.
• When carbon ink is located over or near copper features, a larger clearance such as 0.50 mm may be required depending on the process.
• The spacing between adjacent carbon ink features should generally be at least 0.30 mm for conventional designs.
• Carbon ink features may require additional width compared with the underlying copper pattern to account for printing and registration tolerances.

The exact requirements depend on the carbon ink type, screen-printing process, substrate, pattern geometry, and electrical requirements.

For designs using carbon contacts, it is recommended to provide the complete artwork and mechanical requirements to the PCB manufacturer during the DFM review.

Design Rules for Better PCB Manufacturability

Following practical PCB Design Guidelines does not mean simply using the largest possible spacing and trace width. The goal is to find an appropriate balance between electrical performance, component density, manufacturing capability, and cost.

Designers can improve manufacturability by following several principles.

1. Avoid Unnecessarily Fine Features

If a larger trace width and spacing can meet the electrical requirements, avoid using unnecessarily small dimensions.

2. Match Trace Width to Current Requirements

High-current traces should be designed according to current capacity and allowable temperature rise rather than manufacturing minimums.

3. Use Appropriate Hole Sizes

Avoid specifying very small mechanical holes when a larger diameter can meet the mechanical and electrical requirements.

4. Provide Adequate Copper Clearance

Maintain sufficient clearance between copper and the board edge, V-Cut lines, mounting holes, and other mechanical structures.

5. Consider the Assembly Process

PCB design should also account for SMT placement, solder paste printing, reflow soldering, component clearance, and inspection requirements.

6. Confirm Advanced Features Early

For microvias, fine lines, ultra-small holes, controlled impedance, heavy copper, edge plating, or other advanced structures, manufacturing capability should be confirmed before layout completion.

PCB Design and DFM Review

A DFM review is one of the most effective ways to identify manufacturing risks before fabrication.

During a typical review, Kingda can evaluate factors such as:

• Minimum trace width
• Trace Spacing
• Hole diameter
• Annular ring
• Copper-to-edge clearance
• Solder mask openings
• V-Cut requirements
• Board outline
• Layer registration
• Copper balance
• Drill-to-copper clearance
• Manufacturing tolerances

The objective is not simply to reject designs that use tight dimensions. Instead, the goal is to determine whether the design can be manufactured consistently using the selected process.

If a design requires features beyond standard capabilities, Kingda can evaluate whether an alternative manufacturing process or design adjustment would be more appropriate.

Conclusion

A successful PCB design should be electrically functional, mechanically suitable, and manufacturable.

Trace width, Trace Spacing, hole size, annular ring, copper clearance, solder mask clearance, and V-Cut design all have a direct impact on PCB manufacturing quality.

The values presented in this guide are practical reference points for conventional PCB designs rather than fixed industry-wide standards. Actual manufacturing limits vary according to copper thickness, board structure, material, equipment, process technology, and quality requirements.

By considering DFM requirements from the beginning and communicating critical design parameters with the manufacturer, engineers can reduce redesigns, improve manufacturing yield, and achieve more consistent PCB quality.
