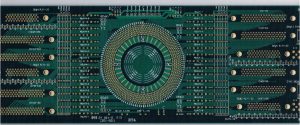

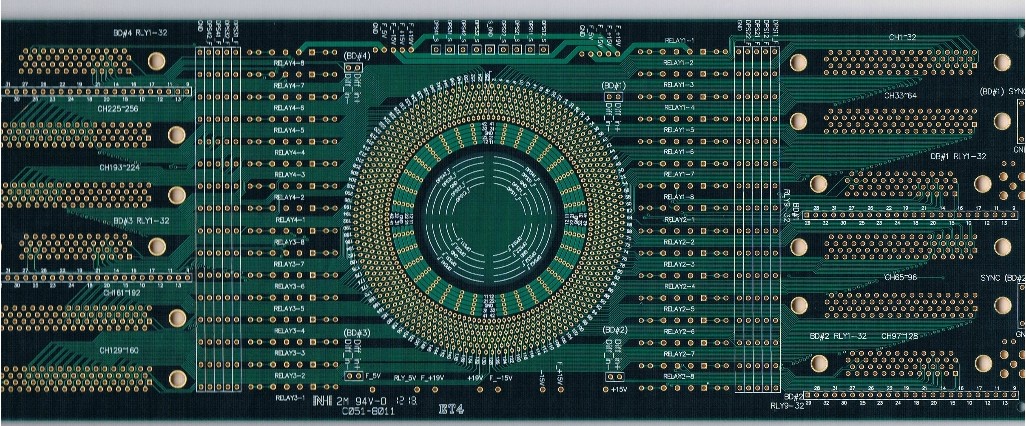

Not every PCB requires strict control of trace width and current capacity. However, when a circuit carries high current, experiences transient current pulses, or contains high-power components, conductor dimensions become critical design parameters.

In motor-control systems, power electronics, industrial equipment, automotive electronics, battery systems, and other high-power applications, PCB traces may need to carry substantial continuous or transient currents. If the copper cross-sectional area is insufficient, excessive temperature rise, copper damage, or long-term reliability problems may occur.

Therefore, PCB Trace Width and PCB Current Capacity should be evaluated during the PCB design stage rather than after the board has been manufactured.

What Determines PCB Current Capacity?

The current-carrying capability of a PCB trace is not determined by trace width alone.

Important factors include:

• PCB Copper Thickness
• Trace width
• Trace length
• External or internal layer
• Allowable temperature rise
• Ambient temperature
• Copper distribution
• Via structures
• Continuous or transient current
• Cooling conditions
• Board material and construction

For a given copper thickness, increasing trace width generally increases the available conductor cross-sectional area and reduces resistance.

However, designers should not use a single rule such as “1 mm² of copper always carries 10 A.” Such simplified rules may be useful for rough estimation, but they cannot replace a proper thermal and electrical calculation.

PCB Trace Width and Current

The relationship between trace width and current can be understood through the resistance of the copper conductor.

For a conductor:

R = ρL/A

where:

• R is resistance
• ρ is the resistivity of copper
• L is conductor length
• A is conductor cross-sectional area

For a PCB trace, the cross-sectional area is approximately determined by trace width and copper thickness.

As current increases, the power dissipated by the trace also increases:

P = I²R

This means that a small increase in current can result in a much larger increase in resistive heating.

Consequently, a narrow trace carrying high current can experience significant temperature rise.

For power circuits, designers should determine the required PCB Trace Current according to the acceptable temperature rise and applicable design standards rather than selecting a trace width based solely on manufacturing minimums.



Continuous Current vs. Transient Current

Another important consideration is the duration of the current.

A PCB trace carrying 10 A continuously is very different from a trace carrying a short 100 A pulse.

For a transient event, the deposited energy can be approximated by:

Q = I²Rt

where:

• Q is thermal energy
• I is current
• R is resistance
• t is duration

Because the duration of a current pulse may be extremely short, the conductor may tolerate a much higher instantaneous current than its continuous-current rating.

However, this does not mean that any short pulse is automatically safe.

The analysis should also consider:

• Pulse duration
• Pulse repetition rate
• Trace resistance
• Copper thickness
• Local temperature
• Thermal diffusion
• Via resistance
• Connector limitations
• Component pin ratings
• Current-return paths

For high-current switching circuits, transient behavior should therefore be evaluated at the complete system level.

PCB Trace Width for High-Power Applications

For high-current applications, designers should avoid selecting the minimum manufacturable trace width simply because the PCB manufacturer can fabricate it.

Manufacturing capability and electrical requirements are two different considerations.

A very narrow trace may be manufacturable but still unsuitable for the required current.

When designing a high-current power path, consider:

1. Increase Copper Thickness

Using thicker copper can increase the conductor cross-sectional area without requiring an extremely wide trace.

Heavy-copper PCBs can therefore be useful for power electronics and high-current applications.

2. Increase Trace Width

A wider trace reduces resistance and distributes current over a larger copper area.

3. Use Copper Pour or Planes

Large copper areas can provide lower-resistance current paths and improve heat spreading.

However, copper pours should be designed with appropriate clearances, current-return considerations, and manufacturability in mind.

4. Minimize Unnecessary Bottlenecks

A high-current path should not suddenly narrow at pads, vias, connectors, or thermal-relief structures unless the resulting electrical and thermal effects have been evaluated.

A wide power trace connected to a very small via, for example, may still create a local current-density and thermal bottleneck.

Via Design for High-Current PCB Applications

Vias are often overlooked when evaluating PCB Current Capacity.

A high-current trace may have sufficient copper width, but if the current must pass through a small number of vias, the vias can become the limiting factor.

Via current capability depends on parameters such as:

• Finished hole diameter
• Plated copper thickness
• Via barrel length
• Number of parallel vias
• Current magnitude
• Current duration
• Thermal environment
• Reliability requirements

For high-current connections between PCB layers, designers may use multiple vias in parallel rather than forcing the entire current through a single small via.

This approach can reduce current density and distribute heat more effectively.

For very high-current applications, the via structure should be evaluated as part of the complete power path.

Thermal Management and PCB Current

Electrical and thermal design are closely connected.

When current flows through a copper trace, resistive losses generate heat:

P = I²R

If the generated heat cannot be dissipated effectively, the trace temperature rises.

Higher temperature can increase copper resistance, which may further increase power loss. This creates a thermal feedback mechanism that should be considered in demanding power designs.

Therefore, PCB Thermal Management should be considered together with current capacity.

Potential thermal-management methods include:

• Increasing copper area
• Using thicker copper
• Adding thermal vias
• Connecting copper areas to heat-spreading structures
• Improving airflow
• Using metal-core or thermally enhanced PCB structures
• Reducing electrical resistance
• Improving the thermal path from components to the chassis or heat sink

The correct solution depends on the amount of heat generated and the available cooling system.

Via-to-Pad Copper Connections

When copper is connected to a through-hole pad, PCB design software may provide different connection styles, including thermal-relief connections and direct copper connections.

These structures have different thermal and electrical characteristics.

Direct Copper Connection

A direct copper connection provides a larger copper connection between the pad and surrounding copper.

Its advantages include:

• Lower electrical resistance
• Higher potential current capacity
• Better heat transfer into the surrounding copper

This can be useful for high-current power connections.

However, the same strong thermal connection can make soldering more difficult because heat can be conducted rapidly away from the pad.

During manual soldering or certain assembly conditions, the pad may therefore require more thermal energy to reach the appropriate soldering temperature.

Thermal-Relief Connection

A thermal-relief connection uses narrower copper spokes between the pad and surrounding copper.

This reduces the thermal connection between the pad and the copper plane, making soldering easier.

Its disadvantages include:

• Higher local electrical resistance
• Reduced current capacity compared with a direct connection
• Potentially less effective heat spreading

Therefore, the appropriate connection style depends on the purpose of the pad.

For high-current power pads, a direct copper connection may be appropriate when thermal and assembly requirements allow it.

For low-current signal pads, thermal relief is often more practical.

The designer should balance PCB Power Design, current capacity, heat dissipation, and solderability.

Choosing the Right Connection Method

The connection method should not be selected simply because one pattern looks better in the PCB layout.

A practical approach is:

High-current power connection → prioritize low resistance and current capacity

Low-current signal connection → prioritize assembly and solderability

Thermally sensitive connection → evaluate heat spreading and soldering requirements

Mixed electrical and thermal requirements → perform a complete thermal and electrical assessment

For mass production, the selected design should also be reviewed with the PCB assembly process.

PCB Hole Size and Manufacturing Capability

Hole size is another important PCB design parameter.

Very small holes may require advanced drilling technology, depending on the finished-hole specification, board thickness, aspect ratio, tooling, and manufacturer’s equipment.

Mechanical drilling remains widely used for conventional through-holes, while laser drilling is commonly used for microvias and certain HDI structures.

Instead of assuming that every hole below a particular diameter requires laser drilling, designers should verify the actual manufacturing capability with the PCB supplier.

When selecting hole dimensions, consider:

• Finished hole diameter
• Drill diameter
• Plating thickness
• Board thickness
• Aspect ratio
• Hole tolerance
• Pad diameter
• Annular ring
• Layer registration

Smaller holes can improve routing density, but they may also increase fabrication complexity and cost.

Therefore, the smallest possible hole is not necessarily the best design choice.

PCB Trace Width and Manufacturing Tolerances

A PCB design should provide sufficient manufacturing margin.

When a trace is designed extremely close to the manufacturer’s minimum capability, variations in etching, copper thickness, registration, and process conditions can have a greater effect on the finished geometry.

For this reason, designers should distinguish between:

• Minimum manufacturable trace width
• Recommended production trace width
• Electrically required trace width
• Current-carrying trace width
• Controlled-impedance trace width

These requirements are not always the same.

For example, a high-speed signal may require a specific impedance-controlled geometry, while a power trace may need a much larger width based on current and thermal requirements.

PCB Power Design Best Practices

When designing a high-current PCB, the following principles can improve electrical and thermal performance:

1. Determine continuous and transient current requirements.
2. Select appropriate copper thickness.
3. Calculate trace width based on allowable temperature rise.
4. Minimize unnecessary resistance in the power path.
5. Avoid narrow bottlenecks around pads and vias.
6. Use sufficient parallel vias for layer transitions.
7. Provide adequate copper area for heat spreading.
8. Consider the complete current-return path.
9. Evaluate connectors and component pins as part of the current path.
10. Review thermal performance under realistic operating conditions.

For high-current switching circuits, designers should also evaluate parasitic inductance.

Parasitic Inductance in High-Current Circuits

A PCB trace is not an ideal conductor. It has parasitic resistance and inductance.

When current changes rapidly, the inductive voltage can be approximated by:

V = L × di/dt

where L is inductance and di/dt represents the rate of current change.

A high-current pulse with a very fast rise time can therefore generate significant voltage spikes even if its duration is short.

This is particularly important in:

• Motor drives
• DC-DC converters
• Power switching circuits
• Battery management systems
• Automotive electronics
• Inverter systems

For these applications, minimizing loop area, shortening high-current paths, placing decoupling components appropriately, and providing a low-inductance return path can be just as important as increasing trace width.

Kingda’s Approach to High-Current PCB Design

For demanding PCB Power Design projects, PCB fabrication capability should be considered together with the electrical requirements.

Kingda can evaluate customer designs according to copper thickness, trace geometry, via structures, board stackup, thermal requirements, and manufacturing process capability.

For high-current applications, the design review can focus on:

• Trace width and copper thickness
• High-current copper areas
• Via arrays
• Pad-to-plane connections
• Board thickness
• Thermal management
• Manufacturing tolerances
• Heavy-copper requirements
• Electrical testing

Early DFM communication helps designers avoid situations where a circuit is electrically correct but difficult to manufacture consistently.

Conclusion

PCB Trace Width and PCB Current Capacity are essential considerations for power electronics and other high-current applications.

However, current capacity cannot be determined by trace width alone. Copper thickness, allowable temperature rise, trace length, PCB layer structure, via design, ambient conditions, transient duration, and thermal management all influence the final result.

For high-current circuits, designers should also consider parasitic inductance and the complete current loop rather than focusing only on the DC resistance of a single trace.

The best PCB design balances electrical performance, thermal behavior, manufacturing capability, assembly requirements, reliability, and cost.

By establishing appropriate design rules at the beginning of the project and working with an experienced PCB manufacturer such as Kingda, engineers can develop power PCBs that are easier to manufacture and better suited to their actual current and thermal requirements.
