Quick Turn PCB: Fast PCB Manufacturing, Process, Cost & Kingda

In the fast-paced world of electronics design, time-to-market can determine whether a product succeeds or falls behind competitors. Engineers developing a new IoT device, startups refining a consumer-electronics concept, and manufacturers handling urgent replacement requirements all need a reliable way to shorten PCB production cycles.

This is where Quick Turn PCB services become valuable.

Also known as Rapid PCB, Fast Turn PCB, or Quick Turn PCB Manufacturing, quick-turn production uses accelerated engineering review, readily available materials, prioritized production scheduling, automated manufacturing, and streamlined inspection to reduce the time required to manufacture a PCB.

Depending on board complexity and production requirements, quick-turn services can support everything from prototype boards and engineering samples to low-volume production and urgent replacement orders.

Kingda provides integrated Rapid PCB Prototyping and Quick Turn PCB Assembly, covering PCB fabrication, component sourcing, SMT/THT assembly, inspection, testing, and functional verification. Its published capabilities include rapid prototypes, no MOQ for prototype assembly, 4–7 day quick-turn prototyping, and expedited prototype services under specified conditions. (Kingda)

What Is Quick Turn PCB?

A Quick Turn PCB is a printed circuit board manufactured and delivered on an accelerated schedule compared with conventional PCB production.

Traditional PCB fabrication may require several days or weeks depending on the board structure, materials, layer count, production volume, and testing requirements. Quick-turn manufacturing reduces waiting time by optimizing the manufacturing workflow and prioritizing production resources.

A typical Quick Turn PCB Manufacturing workflow includes:

Design Review → DFM Check → Material Preparation → PCB Fabrication → Drilling → Plating → Etching → Solder Mask → Surface Finish → Testing → Inspection → Shipment

When assembly is also required, the process continues with:

Component Sourcing → Solder Paste Printing → SMT Placement → Reflow Soldering → AOI/X-Ray → THT Assembly → ICT/FCT → Final Inspection

The objective is not to remove essential manufacturing or quality-control processes. Instead, the manufacturer minimizes unnecessary waiting time while maintaining appropriate process controls.

Why Choose Quick Turn PCB?

1. Accelerate Time-to-Market

The biggest advantage of Quick Turn PCB Services is the ability to reduce the time between design and physical hardware.

Instead of waiting several weeks for each design revision, engineers can potentially complete prototype iterations within days.

This is especially useful for:

IoT products
Consumer electronics
Automotive electronics
Medical devices
Industrial controls
Communication equipment
Robotics
AI hardware

Faster prototype availability allows engineering teams to test, modify, and validate designs sooner.

2. Reduce Development Risk

A real PCB can reveal problems that may not be obvious in simulation.

Prototype testing can uncover:

Signal-integrity problems
Thermal issues
Power-distribution problems
Incorrect footprints
Component interference
Connector alignment issues
Mechanical packaging problems
Firmware-hardware compatibility issues

Identifying these problems before mass production can significantly reduce redesign and rework risk.

3. Respond to Urgent Production Needs

Quick-turn manufacturing is not limited to prototypes.

It can also support:

Emergency PCB replacement
Production shortages
Engineering revisions
Customer-specific modifications
Product demonstrations
Trade-show samples
Low-volume urgent orders

When a PCB shortage threatens a production schedule, an accelerated manufacturing route may help reduce downtime.

4. Support Flexible Low-Volume Production

Many quick-turn manufacturers support low quantities, making the process practical for startups, R&D departments, and engineering teams.

Kingda states that its prototype PCB assembly service has no minimum order quantity requirement, allowing customers to build only the number of boards required for validation. (Kingda)

How Does Quick Turn PCB Manufacturing Work?

Step 1: Design Submission and DFM Review

The process starts with the customer’s manufacturing files.

Common files include:

Gerber files
ODB++
Drill files
PCB stackup
Bill of Materials (BOM)
Pick-and-place files
Assembly drawings
Special manufacturing instructions

A professional manufacturer performs DFM (Design for Manufacturability) and, when assembly is required, DFA (Design for Assembly) reviews.

Typical issues include:

Incorrect trace width
Insufficient clearance
Incorrect footprints
Improper solder-mask openings
Inadequate annular rings
Incorrect component orientation

Kingda provides engineering design review and DFMA support as part of its PCB manufacturing and assembly services. (Kingda)

Step 2: Material Selection and Preparation

Quick-turn suppliers typically maintain stock of frequently used materials.

Common materials include:

FR-4

A cost-effective material for general electronics and standard multilayer PCB applications.

High-Tg FR-4

Suitable for applications requiring greater thermal stability, including certain automotive and industrial electronics.

High-Frequency Materials

Low-loss laminates can be used for RF, microwave, high-speed communication, and antenna applications.

Aluminum PCB Materials

Commonly used in LED lighting and power electronics where thermal management is important.

Flexible Materials

Polyimide-based materials are used for flexible and rigid-flexible PCB applications.

Using readily available materials can reduce procurement delays in quick-turn production.

Step 3: PCB Fabrication

The PCB fabrication stage typically includes:

Inner-layer imaging
Etching
Lamination
Drilling
Copper plating
Outer-layer imaging
Solder mask
Surface finish
Electrical testing

Advanced manufacturing technologies such as LDI, CNC drilling, laser drilling, and automated plating can improve manufacturing accuracy and process efficiency.

Step 4: Quality Control

Speed should never mean skipping essential inspection.

Typical PCB inspection methods include:

AOI, Electrical Testing, Flying Probe Testing, and Visual Inspection

For assembled PCBs, additional inspection may include:

SPI, AOI, X-Ray, ICT, and FCT

Kingda’s published PCB assembly process includes IQC, SPI, AOI, X-ray, ICT/FCT, and final quality inspection. (Kingda)

Step 5: Quick Turn PCB Assembly

When PCBA is required, components are sourced and assembled onto the fabricated PCB.

The typical workflow is:

BOM Validation → Component Procurement → Solder Paste Printing → SMT Placement → Reflow → AOI/X-Ray → THT Assembly → Testing

Kingda supports SMT, THT, mixed-technology assembly, BGA, QFN, fine-pitch components, and miniature components including 01005 and 0201 packages. (Kingda)

Step 6: Testing and Functional Verification

Testing requirements depend on the product.

Potential tests include:

Continuity testing
ICT
Flying probe testing
Functional testing
Firmware programming
Communication testing
Power testing
Customer-specific FCT

Kingda lists ICT, FCT, IC programming, FAI, AOI, and X-ray among its testing capabilities. (Kingda)

Step 7: Packaging and Shipping

After final inspection, boards are packaged according to their sensitivity and shipping requirements.

Typical packaging may include:

ESD protection
Moisture protection
Protective trays
Anti-static bags
Custom labeling
Serial-number tracking

For urgent orders, expedited logistics can be arranged according to the required delivery schedule.

Typical Quick Turn PCB Lead Times

Actual lead times depend on design complexity, quantity, component availability, material availability, and testing requirements.

Service Type	Typical Lead Time	Typical Application
Expedited prototype	Same day to 24 hours	Critical engineering samples
Fast prototype	1–2 business days	Simple PCB prototypes
Quick-turn multilayer	3–5 business days	Engineering validation
More complex PCB	5–7 business days	Multilayer or advanced designs
Advanced HDI/Specialty PCB	7+ business days	Complex manufacturing structures

These are general reference ranges rather than universal guarantees.

Kingda currently publishes prototype production of approximately 2–3 days under normal conditions, with an expedited prototype service that can be as fast as 12 hours under specified conditions. Its published low-volume lead time is generally 3–5 days, while volume production is listed at 5–7 days, depending on the product. (Kingda)

Critical Factors That Impact Quick Turn PCB Lead Times

1. PCB Complexity

Complex designs require more manufacturing steps.

Important factors include:

Layer Count

A two-layer PCB generally requires fewer manufacturing steps than a 6-layer or 12-layer PCB.

Trace and Space

Very fine traces and spaces may require advanced imaging and tighter process control.

Via Structures

Microvias, blind vias, and buried vias can increase process complexity.

Surface Finish

Different surface finishes require different processing conditions. ENIG, for example, typically involves more process steps than standard HASL.

2. Order Quantity

Small prototype orders can often be processed quickly, while larger batches require greater scheduling and manufacturing capacity.

3. Material Availability

Standard FR-4 materials are generally easier to source quickly.

Specialty materials may introduce additional procurement time.

4. Component Availability

For Quick Turn PCB Assembly, PCB fabrication is only part of the schedule.

A missing microcontroller, BGA, connector, or specialized passive component can delay the complete PCBA.

Kingda provides component sourcing and procurement services, helping customers coordinate PCB production and electronic-component procurement within one manufacturing workflow. (Kingda)

5. Testing Requirements

Additional testing increases production time but may be essential for reliable products.

For example:

AOI: visual/process inspection
X-ray: hidden solder joints
ICT: electrical verification
FCT: system-level functional validation

Quick Turn PCB vs. Standard PCB

Factor	Quick Turn PCB	Standard PCB
Lead Time	Hours to several business days	Several days to weeks
Order Quantity	Prototype/low volume	Medium/high volume
Unit Cost	Generally higher	Generally lower
Flexibility	High	Moderate
Engineering Changes	Easy to accommodate	Usually more controlled
Materials	Often stock materials	Broader material options
Best For	Prototypes and urgent orders	Planned production
Production Strategy	Priority scheduling	Standard scheduling

The main trade-off is time versus unit cost.

Quick-turn manufacturing may have a higher unit cost because of priority scheduling and expedited production. However, for an engineering team facing a critical deadline, the value of saving days or weeks can outweigh the additional manufacturing premium.

Tips for Choosing the Right Quick Turn PCB Provider

1. Verify Actual Lead Times

Don’t rely only on advertising.

Ask the manufacturer to specify:

PCB fabrication time
Assembly time
Component procurement time
Testing time
Shipping time

This gives a clearer picture of the actual project schedule.

2. Evaluate DFM and Engineering Support

A fast manufacturer should also be technically capable.

Look for:

DFM + DFA + Stackup Review + BOM Review + Engineering Feedback

3. Check Manufacturing Capabilities

Confirm support for your required technology, such as:

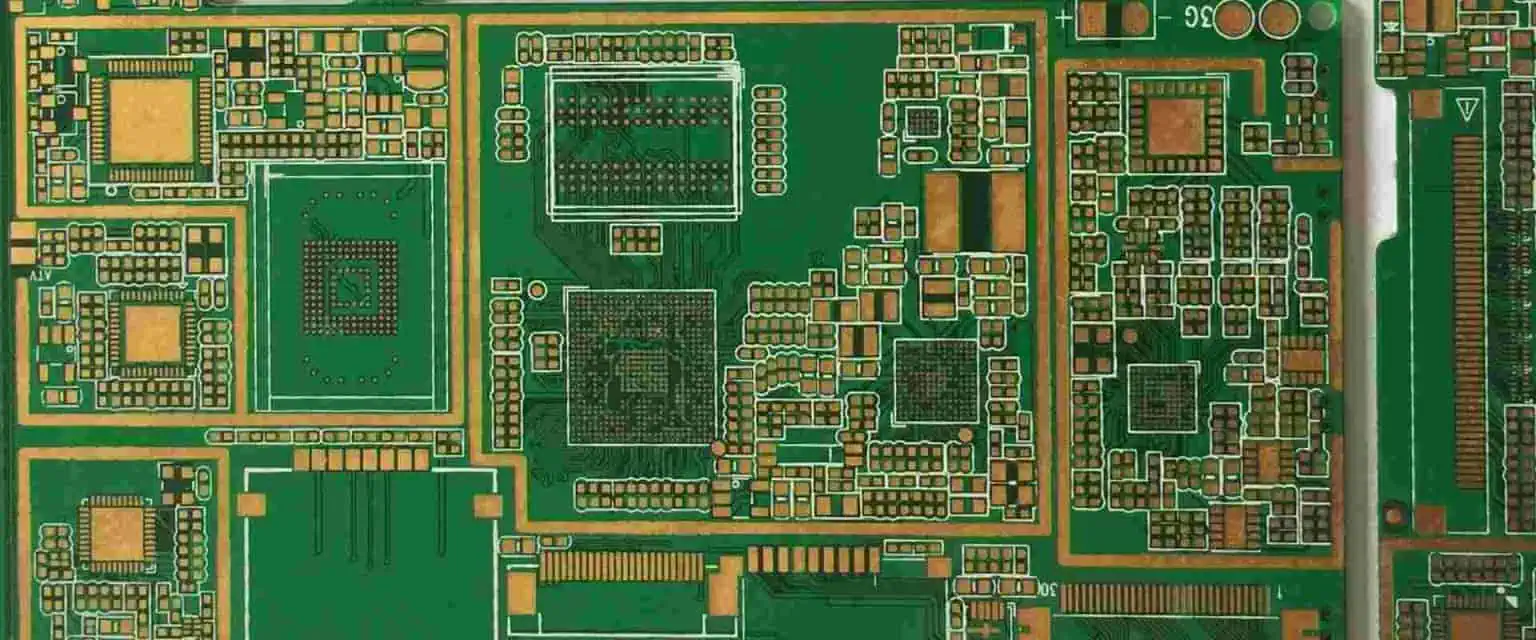

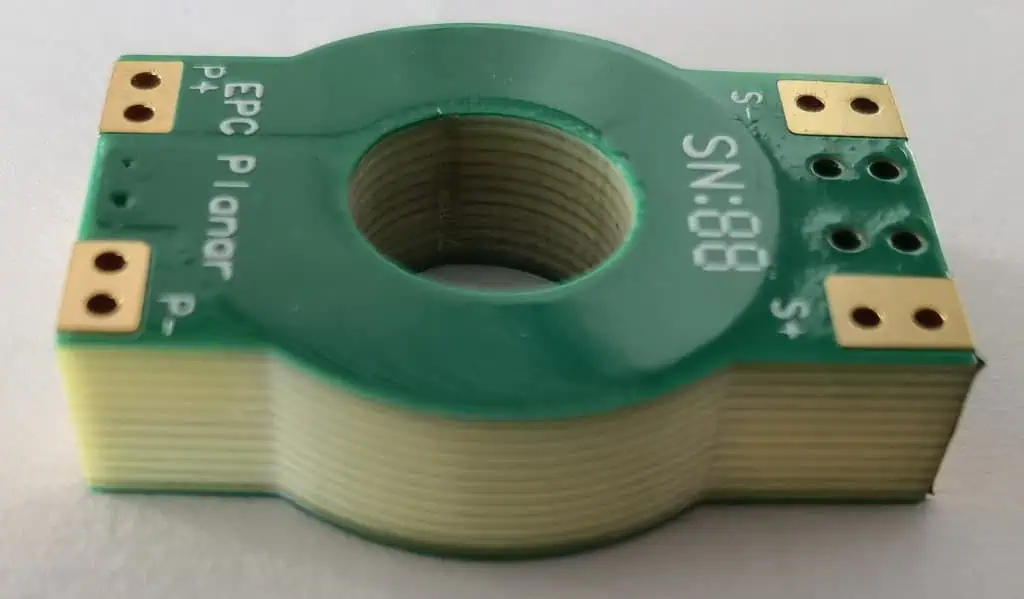

Multilayer PCB
HDI
High-frequency PCB
Flexible PCB

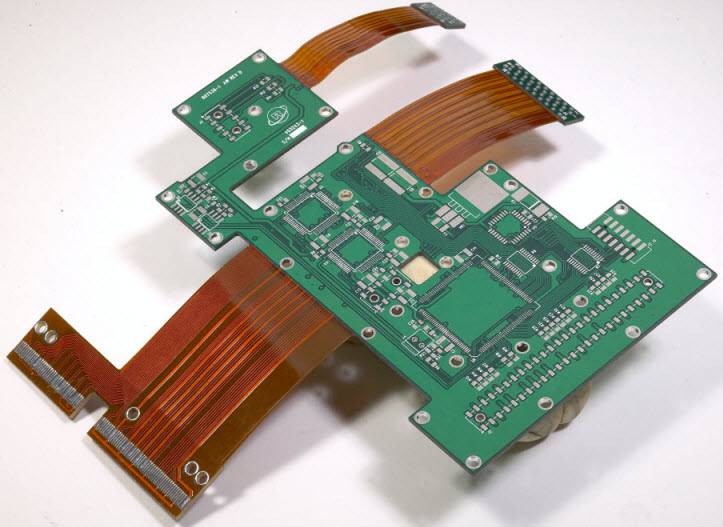

Rigid-flex PCB
Heavy copper
BGA
QFN
01005/0201
Controlled impedance

4. Evaluate Component Sourcing

For turnkey PCBA, component availability may become the biggest schedule risk.

A strong supplier should have an established component-sourcing network, inventory management, and methods for preventing counterfeit components.

Kingda states that it works with established component suppliers and major distributors and provides integrated component procurement as part of its turnkey PCB assembly service. (Kingda)

5. Check Inspection and Testing

Look for manufacturers offering:

SPI + AOI + X-Ray + ICT + FCT + FAI

Kingda publishes these inspection and testing capabilities for its PCB assembly operations. (Kingda)

6. Evaluate Quality Management

Kingda reports ISO 9001, ISO 13485, and IATF 16949 quality management certifications. It also describes an ERP-based traceability system covering the product manufacturing process. (Kingda)

Common Mistakes to Avoid With Quick Turn PCB

Skipping the DFM Check

Submitting a design directly to production without engineering review may cause manufacturing problems.

A few hours spent on DFM can prevent much longer production delays.

Choosing Uncommon Materials Without Checking Availability

A highly specialized laminate may be technically appropriate but can extend production time significantly if it must be sourced.

Ignoring Component Availability

Always validate the BOM before starting production.

For turnkey assembly, the manufacturer should identify:

Out-of-stock components
Long-lead parts
Obsolete parts
Alternative components

Underestimating Testing Requirements

Fast production does not mean testing should be removed.

The appropriate testing strategy should be established before production begins.

Choosing Price Over Reliability

The cheapest quote is not necessarily the lowest total cost.

A manufacturer with weak quality control may create:

Defects → Rework → Delays → Additional Shipping → Lost Development Time

A slightly higher manufacturing price can be more economical when it produces consistent and reliable boards.

How to Optimize Your Design for Quick Turn Production

Use Standard Materials

FR-4 is often a good choice when specialized electrical or thermal performance is not required.

Reduce Unnecessary Complexity

Avoid unnecessary:

Layer transitions
Blind/buried vias
Extremely narrow traces
Special surface finishes
Unusual board dimensions

Prepare Complete Manufacturing Files

Your production package should include:

Gerber + Drill Files + Stackup + BOM + Pick-and-Place + Assembly Drawing

Prepare Alternative Components

Identify approved alternates for critical parts before production.

Use Panelization

Panelization can improve automated SMT efficiency and reduce handling time for small PCBs.

Kingda Quick Turn PCB Advantages

Kingda’s current published capabilities make it suitable for projects requiring rapid PCB and PCBA manufacturing.

Rapid Prototyping

Kingda offers rapid PCB prototyping and supports prototype-to-production manufacturing. Its prototype service specifies no MOQ and 4–7 day quick-turn rapid prototyping, with faster expedited options under specific conditions. (Kingda)

Fast PCB Assembly

Kingda’s published PCB assembly information states that rapid SMT assembly can support 8–48 hour delivery when components are ready, while other services provide standard turnaround according to project complexity and material availability. (Kingda)

Advanced SMT Capability

Published capabilities include:

01005 + 0201 + BGA + QFN + Fine Pitch

The rapid prototype service lists a minimum BGA pitch of 0.25 mm and IC assembly precision of approximately ±0.03 mm under its stated capability conditions. (Kingda)

Automated Manufacturing

Kingda’s rapid prototype page lists 8 fully automatic production lines, while its SMT service describes automated SMT production, 3D SPI, AOI, X-ray, and controlled reflow soldering. (Kingda)

Integrated Testing

Kingda supports:

AOI + X-Ray + SPI + ICT + FCT + FAI

This enables inspection from solder-paste printing through final functional testing. (Kingda)

One-Stop Manufacturing

Kingda’s services cover:

PCB Design → PCB Fabrication → Component Procurement → SMT → THT/DIP → Testing → Box Build

This integrated model reduces coordination between multiple suppliers. (Kingda)

Prototype-to-Production Capability

Kingda supports rapid prototyping, low-volume production, and high-volume production, allowing customers to continue with the same supplier as their product moves through different manufacturing stages. (Kingda)

Final Thoughts: Quick Turn PCB as a Catalyst for Innovation

Quick Turn PCB manufacturing is much more than a faster way to fabricate a circuit board. It is an important part of modern hardware development.

By reducing manufacturing lead times, engineers can:

Design Faster → Build Faster → Test Faster → Improve Faster

The real value of quick-turn manufacturing comes from combining speed with reliable engineering, component sourcing, automated production, inspection, and testing.

For prototype and urgent-production requirements, an integrated manufacturer such as Kingda can provide a complete path from PCB fabrication and component procurement to SMT/THT assembly and final testing. Kingda’s current published capabilities include rapid prototyping, no-MOQ prototype assembly, advanced SMT packages, automated inspection, functional testing, and scalable production services. (Kingda)
