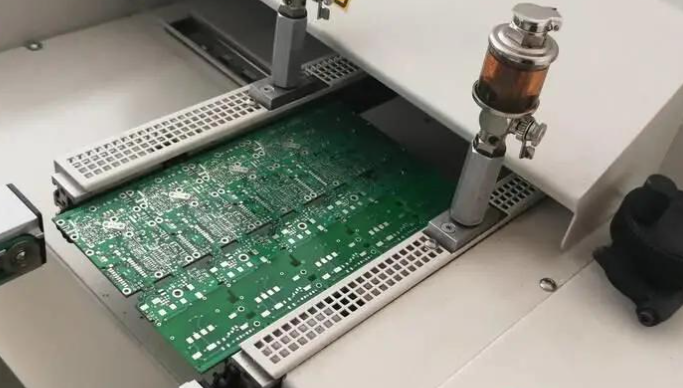

In PCB mass production, surface finishing is one of the critical process areas affecting solderability, appearance, electrical performance, and long-term reliability. Common defects such as pad oxidation, poor solderability, uneven coating thickness, gold layer peeling, discoloration, and corrosion are often related not only to individual process failures but also to inconsistent surface finishing specifications and unstable process control.

When multiple finishing processes are used without clearly defined standards, differences in chemical conditions, equipment settings, inspection criteria, and operator procedures can introduce variation between production batches. Therefore, establishing a standardized PCB manufacturing process and a consistent surface finishing control system can help reduce process variation, improve production consistency, and lower rework and scrap costs.

For manufacturers such as Kingda, standardized surface finishing should be treated as part of an integrated quality-management system rather than as an isolated manufacturing step.

1. How Inconsistent Surface Finishing Causes Systematic Yield Loss

Using multiple finishing processes without clearly defined application rules can create systematic quality risks throughout PCB mass production.

Process Parameters Can Become Difficult to Control

Different surface finishing technologies have different chemical reaction characteristics, temperature requirements, processing times, deposition mechanisms, and post-treatment conditions. For example, ENIG, OSP, immersion silver, and HASL require different process controls and have different effects on solderability, appearance, and subsequent assembly.

If production frequently switches between processes without adequate equipment qualification and parameter management, operators may use inappropriate settings. Changes in chemical concentration, bath temperature, immersion time, agitation, spray conditions, or curing parameters can contribute to coating variation, contamination, poor adhesion, or inconsistent solderability.

The problem is not simply that different processes exist. The greater risk comes from using them without clearly separated process specifications, equipment recipes, inspection criteria, and material controls.

Inconsistent SOPs Increase Operator-Related Defects

Standard operating procedures are particularly important when several finishing technologies are produced on the same manufacturing line.

Operators may need to manage different chemical preparation methods, immersion times, cleaning procedures, masking requirements, drying conditions, and inspection criteria. Without clearly controlled work instructions, errors can occur during chemical treatment, rinsing, drying, curing, or handling.

A robust surface finishing standard should therefore define critical operating parameters, acceptable process windows, equipment settings, chemical management requirements, and inspection methods for each approved finishing process.

Different Inspection Criteria Can Create Misjudgment

Different surface finishes also have different visual characteristics and performance requirements. A condition that is acceptable for one finish may require investigation for another.

If inspection personnel do not have clearly defined acceptance criteria, defects such as discoloration, surface roughness, coating variation, exposed copper, adhesion problems, or solderability issues may be incorrectly accepted or rejected.

A standardized PCB quality control system should connect process specifications with measurable inspection criteria. This allows quality personnel to determine whether a defect originates from materials, surface treatment, equipment, handling, or assembly conditions.

Inconsistent Processes Make Root-Cause Analysis More Difficult

When a soldering or surface defect occurs, engineers need to determine whether the root cause is related to PCB design, material selection, surface treatment, manufacturing parameters, storage, or assembly.

If the manufacturing process is highly variable, there are too many potential variables to investigate. This increases troubleshooting time and makes it difficult to establish reliable corrective actions.

For this reason, process standardization is also a foundation for effective PCB process optimization. A stable process produces comparable data, making it easier to identify abnormal trends and correlate defects with specific process parameters.

2. The Logic Behind Standardized Surface Finishing

Standardization does not mean that every PCB must use the same surface finish. Instead, it means that each approved surface finish should have a clearly defined application range, process specification, and quality-control procedure.

Stabilize Critical Process Parameters

A standardized process should establish controlled ranges for parameters such as:

• Chemical concentration and bath condition
• Processing temperature
• Treatment or immersion time
• Agitation or circulation
• Rinsing conditions
• Drying or curing conditions
• Coating or deposition thickness
• Surface cleanliness
• Equipment maintenance status

These parameters should be monitored through documented process-control procedures rather than relying solely on operator experience.

Statistical process control can also be used to monitor trends. Instead of waiting until coating thickness or solderability falls outside the specification, manufacturers can identify gradual parameter drift and take corrective action earlier.

Standardize SOPs and Operator Training

A consistent SOP reduces variation caused by differences between operators or shifts.

Work instructions should specify not only what operators need to do but also the critical points that require confirmation. For example, chemical replenishment, bath replacement, equipment cleaning, drying temperature, and product handling should have clearly defined procedures.

Regular training and competency verification are also important, particularly when a new surface finish or process chemistry is introduced.

Establish Consistent Inspection Standards

Effective PCB quality control should cover both appearance and functional performance.

Depending on the selected finish and application, inspection may include:

• Surface appearance
• Coating thickness
• Solderability
• Adhesion
• Surface cleanliness
• Corrosion resistance
• Dimensional consistency
• Electrical continuity
• Cross-sectional analysis when necessary

The inspection method should be matched to the actual failure mechanism. Visual inspection alone cannot verify all coating or interface defects.

3. Full-Process Yield Control for PCB Surface Finishing

A standardized process becomes more effective when it is integrated into the entire manufacturing workflow.

Control Incoming Materials and Chemicals

Incoming materials should be controlled according to defined specifications. This may include laminate, copper foil, chemical solutions, auxiliary materials, solder mask materials, and packaging materials.

Chemical suppliers and material grades should be managed through approved specifications. Changes in chemical formulation or material source should undergo appropriate qualification before being introduced into production.

This reduces the possibility that material variation will be mistaken for a process problem.

Control Equipment and Process Conditions

Equipment capability directly affects process stability. Production lines should establish preventive maintenance, calibration, cleaning, and inspection schedules.

Important parameters should be monitored at appropriate intervals. Depending on the process, these may include chemical concentration, pH, temperature, solution contamination, current density, line speed, spray pressure, or curing conditions.

The objective is not to maximize the number of measurements but to identify the parameters that have the strongest relationship with product quality.

Use First-Article Approval Before Mass Production

First-article verification is an important step in PCB mass production.

Before releasing a production batch, the first panel or representative sample should be inspected against the approved process specification. Depending on the surface finish, verification may include coating thickness, appearance, solderability, adhesion, dimensional characteristics, and other application-specific tests.

Only after the first-article results meet the defined requirements should full-scale production proceed.

Apply In-Process Sampling and Trend Monitoring

Continuous production should include periodic sampling rather than relying only on final inspection.

Sampling results can be used to monitor coating thickness, surface appearance, solderability, and other key characteristics. Trend charts can help identify gradual process drift before it develops into a large-scale defect.

This approach changes quality control from reactive inspection to preventive PCB process optimization.

4. Surface Finish Selection Should Match the PCB Application

Process standardization should not be confused with using one surface finish for every product.

Different applications may require different characteristics.

ENIG can provide a relatively flat surface and is commonly considered for fine-pitch components and applications requiring good surface planarity. However, nickel-phosphorus composition, gold thickness, plating uniformity, soldering conditions, and chemical control must be properly managed.

HASL can be suitable for applications where cost and conventional solderability are important, but surface flatness and thermal exposure should be considered for fine-pitch components.

OSP provides a thin organic protective layer and can be useful where a flat copper surface is required. However, storage conditions, handling, surface contamination, and the number of thermal cycles need to be considered.

Immersion silver can offer a relatively flat surface and good solderability, but tarnish and storage protection require appropriate control.

Therefore, the correct strategy is not simply to eliminate process diversity. It is to define an approved surface finishing standard for each product category and ensure that every selected process has a qualified manufacturing window.

5. Build a Closed-Loop Defect Analysis System

Standardized production provides a reliable foundation for systematic defect analysis.

When defects such as oxidation, poor solderability, coating variation, peeling, discoloration, or corrosion are detected, manufacturers should classify them according to defect type, location, production batch, surface finish, equipment, material lot, and process conditions.

Engineers can then compare defect data with historical process records.

A typical closed-loop analysis can include:

1. Defect identification — accurately define the failure mode.
2. Data collection — collect material, equipment, chemical, operator, and production-batch information.
3. Root-cause analysis — determine the relationship between process variables and defects.
4. Corrective action — modify process parameters, materials, equipment, or operating procedures.
5. Verification — confirm that the corrective action actually reduces the defect rate.
6. Standard update — revise the SOP, inspection criteria, or DFM requirements when necessary.
7. Continuous monitoring — verify that the problem does not return in subsequent batches.

This closed-loop approach turns individual defects into manufacturing knowledge and supports continuous PCB process optimization.

6. Connect Surface Finishing With DFM and PCB Design

Surface finishing problems are not always created during the finishing process itself. PCB design can also influence manufacturing difficulty and final reliability.

During DFM review, engineers should consider:

• Pad geometry and component pitch
• Copper distribution
• Surface-finish requirements
• Solder mask registration
• Via and pad structures
• Fine-pitch BGA areas
• Edge and tooling requirements
• High-current copper areas
• Areas requiring special surface treatment

For example, a surface finish selected for fine-pitch assembly may require tighter control of pad flatness and coating uniformity than a conventional through-hole design.

Therefore, PCB design and surface finishing should be reviewed together rather than treated as completely independent stages.

7. Key Measures for Stable Mass Production

A practical standardized surface-finishing management system can be built around several core principles:

This framework provides a more reliable basis for PCB quality control than relying only on final inspection.

Conclusion

A standardized surface finishing standard is more than a document describing chemical treatment parameters. It is a manufacturing framework that connects material control, equipment management, process parameters, operator procedures, inspection standards, DFM review, and defect analysis.

For PCB mass production, the goal should not be to assume that one surface finish is suitable for every application. Instead, manufacturers should establish qualified process options, clearly define their application boundaries, and maintain stable process windows for each approved finish.

With standardized procedures and closed-loop data management, manufacturers can improve process consistency, identify abnormal trends earlier, reduce rework and scrap, and establish a more predictable PCB manufacturing process.

Kingda can integrate surface-finish selection, DFM review, process control, inspection, and production traceability into a structured PCB manufacturing workflow, helping customers manage surface-treatment requirements from prototype verification through mass production.
