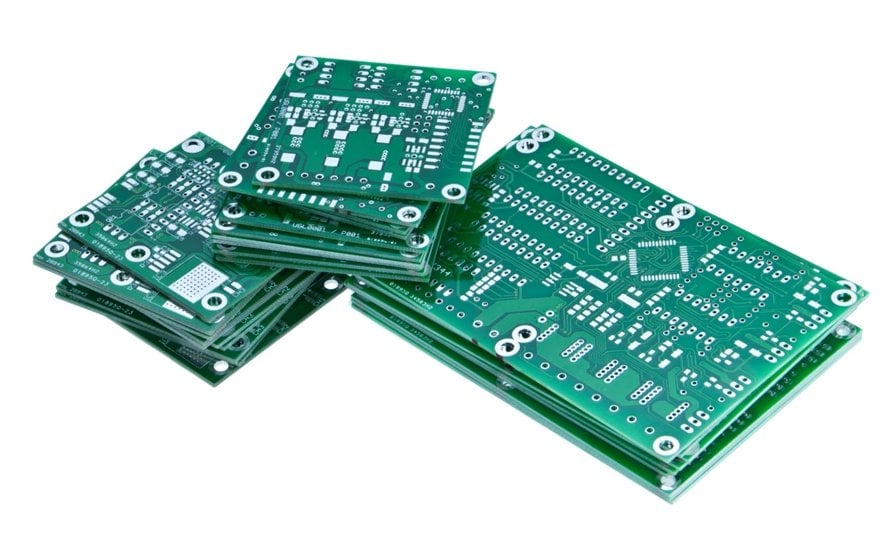

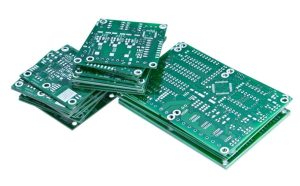

What Is a Double-Sided PCB?

With the rapid development of electronic technology, the demand for printed circuit boards continues to grow. As electronic products become smaller, smarter, and more powerful, PCB technology must provide greater circuit density, improved electrical performance, and reliable manufacturing.

Among the different types of PCBs, the Double-Sided PCB is one of the most widely used solutions between single-sided and multilayer circuit boards.

A double-sided PCB contains two conductive copper layers, one on the top side and one on the bottom side of the substrate. These two copper layers are interconnected through plated through-holes (PTHs) and vias, allowing electrical signals to travel between the two sides of the board.

The basic construction typically consists of a dielectric substrate, two copper layers, solder mask, surface finish, and silkscreen. FR-4 is one of the most common substrate materials for rigid double-sided PCBs, although other materials can be selected according to electrical, thermal, mechanical, and environmental requirements.

Compared with a single-sided PCB, a Double-Layer PCB provides significantly more routing space and allows components and copper traces to be distributed across both sides of the board. Compared with multilayer PCBs, however, it generally offers a simpler structure, lower manufacturing cost, and easier production.

As a result, double-sided PCBs are widely used in power electronics, industrial controls, automotive electronics, consumer products, communication equipment, and many other applications.

Double-Sided PCB Structure

Understanding the PCB Structure is essential for designing and manufacturing a reliable double-sided circuit board.

Unlike a single-sided PCB, a double-sided PCB has conductive copper on both sides of the substrate. These conductive layers can be connected through plated holes, creating electrical paths between the top and bottom circuits.

Copper Layers

A double-sided PCB contains copper on both the top and bottom surfaces.

These copper layers form the electrical paths used to connect components. Engineers can route traces on either side of the board, significantly increasing the available routing area compared with a single-sided design.

Copper thickness should be selected according to the electrical requirements of the application. Standard copper thickness is suitable for many general-purpose circuits, while thicker copper may be required for higher-current applications.

Traces

PCB traces are conductive paths that connect electronic components, pads, vias, and other circuit features.

Because a Double-Sided PCB allows routing on both sides, designers have greater flexibility when dealing with complex connections. However, trace width, spacing, impedance, current capacity, and thermal requirements must still be considered during layout.

For high-speed applications, trace geometry and the surrounding reference structure can have a significant impact on signal integrity.

Pads

Pads are conductive areas designed for soldering electronic components.

Their size, shape, spacing, and location must correspond to the component package and assembly process. Proper pad design helps ensure reliable solder joints and reduces the risk of soldering defects.

For surface-mount components, pad geometry is especially important because it directly affects solder paste deposition and component placement.

Vias and Plated Through-Holes

Vias and plated through-holes provide electrical connections between the top and bottom copper layers.

A plated through-hole is formed by drilling a hole through the board and depositing conductive copper onto the hole wall. This creates an electrical path between the two copper layers.

Depending on the design, different hole structures may be used, including:

• Plated through-holes
• Non-plated through-holes
• Vias
• Component mounting holes

Via placement should be carefully considered because excessive or poorly positioned vias can affect routing efficiency, thermal performance, mechanical reliability, and high-speed signal behavior.

Solder Mask

The solder mask is a protective insulating layer applied over the copper surfaces on both sides of the board.

It protects exposed circuitry from oxidation, contamination, moisture, and accidental solder bridging. The solder mask also helps control solder flow during assembly.

Green is the most commonly used solder mask color, but other colors can be selected depending on manufacturing requirements.

Silkscreen

The silkscreen provides identification and assembly information on the PCB.

It can include:

• Component reference designators
• Polarity markings
• Part numbers
• Logos
• Test-point labels
• Assembly instructions
• Board identification information

Clear silkscreen markings can make PCB assembly, inspection, troubleshooting, and maintenance more efficient.

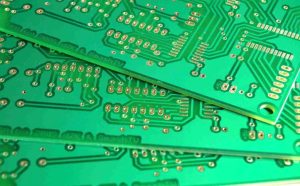

Surface Finish

A PCB Surface Finish is applied to exposed copper pads to protect them from oxidation and maintain good solderability.

Common surface finishes include:

• HASL
• Lead-Free HASL
• ENIG
• OSP
• Immersion Tin
• Immersion Silver

The appropriate finish should be selected according to component requirements, assembly technology, storage conditions, reliability requirements, and cost.

Advantages of Double-Sided PCBs

A Double-Layer PCB provides a practical balance between circuit density, manufacturing complexity, and cost.

More Routing Space

The most obvious advantage is the availability of two copper layers.

Instead of routing the entire circuit on one side, designers can distribute traces between the top and bottom layers. This provides more routing space and allows a more compact board design.

Greater Design Flexibility

Components can be mounted on one or both sides of the PCB, depending on the assembly process and mechanical requirements.

Designers can also use vias to transfer connections between the top and bottom layers, providing greater flexibility when routing complex circuits.

Higher Circuit Density

Compared with a single-sided PCB, a double-sided design can accommodate more connections within a similar board area.

This makes double-sided construction suitable for electronic products that require moderate circuit density but do not justify the cost or complexity of a multilayer board.

Cost-Effective Alternative to Multilayer PCBs

A double-sided PCB is generally more economical than a multilayer PCB when the application can be completed using only two conductive layers.

For cost-sensitive products with moderate circuit complexity, it can provide a good compromise between performance and manufacturing cost.

Better Component Utilization

Components can be distributed across both sides of the board, which can help reduce board size and improve component placement flexibility.

This is particularly useful when the product has mechanical space limitations.

Limitations of Double-Sided PCBs

Although double-sided PCBs are versatile, they are not suitable for every application.

Limited Routing Capacity

A double-sided PCB has only two conductive layers. When a circuit contains a large number of connections, multiple power domains, or complex signal networks, routing may become difficult.

In such cases, a multilayer PCB can provide additional signal, power, and ground layers.

More Complex Than Single-Sided PCBs

Compared with single-sided boards, double-sided PCBs require additional design and manufacturing considerations.

Designers must manage top-layer and bottom-layer routing, via placement, layer transitions, and potential signal interactions.

High-Speed Design Challenges

Although double-sided PCBs can be used for some high-speed circuits, they may not provide the controlled stackup and dedicated reference planes required by demanding high-speed or RF designs.

For sensitive high-frequency applications, multilayer stackups can provide better control of impedance, return paths, crosstalk, and electromagnetic interference.

High-Current Applications May Require Additional Design

A standard double-sided PCB may not be sufficient for applications involving very high current.

Designers may need to increase copper thickness, widen traces, enlarge copper areas, use thermal management structures, or consider heavy-copper and metal-core PCB technologies.

Double-Sided PCB Applications

Double-sided PCBs are used in a wide variety of electronic products because they provide a good balance between cost and circuit density.

Power Electronics

Double-sided PCBs are commonly used in:

• Switching power supplies
• LED driver circuits
• Battery chargers
• Power adapters
• DC-DC converters
• Motor control circuits

The two copper layers provide additional routing space for power and control circuitry.

Automotive Electronics

Automotive electronics often require compact and reliable circuit boards.

Double-sided PCBs can be used in applications such as:

• Engine control systems
• Battery management systems
• Lighting control
• Instrument panels
• Body control systems
• Automotive sensors

Material selection and reliability requirements should be carefully evaluated for automotive applications because PCBs may be exposed to temperature changes, vibration, humidity, and other environmental stresses.

Industrial Equipment

Double-sided circuit boards are widely used in industrial control systems and equipment.

Typical applications include:

• PLC-related control circuits
• Motor controllers
• Industrial sensors
• Automation equipment
• Control panels
• Power management systems

Their relatively simple structure and good cost-performance ratio make them suitable for many industrial products.

Communication Equipment

Double-sided PCBs can also be used in communication and networking products where circuit complexity is moderate.

Examples include:

• Routers
• Communication controllers
• Interface boards
• Signal conversion modules
• Network control circuits

For high-speed communication systems with strict impedance and signal-integrity requirements, multilayer PCB technology may be more appropriate.

Consumer Electronics

Many consumer products use double-sided PCBs where circuit density and functionality fall within the capabilities of two copper layers.

Examples include:

• Household appliances
• Printers
• Remote controls
• Electronic instruments
• Audio equipment
• Small control systems

Double-Sided PCB Manufacturing Process

The PCB Manufacturing Process for double-sided boards consists of several controlled stages. The exact sequence can vary according to the PCB material, production technology, surface finish, and product specifications.

1. PCB Design and Layout

The manufacturing process begins with circuit design.

Engineers create the schematic using EDA or CAD software and then convert the electrical design into a physical PCB layout.

For a double-sided board, traces can be routed on both the top and bottom copper layers. Designers must carefully consider component placement, trace width, spacing, vias, thermal management, signal integrity, and manufacturability.

Before production, manufacturing data such as Gerber files, drill files, and other required fabrication data are generated and reviewed.

DFM analysis is also recommended to identify potential manufacturing issues before fabrication begins.

2. Substrate and Copper-Clad Laminate Preparation

FR-4 is widely used as the dielectric material for rigid double-sided PCBs.

The substrate is laminated with copper foil on both sides. The copper thickness and laminate characteristics are selected according to the electrical and mechanical requirements of the finished board.

Other materials may be used when the application requires special thermal, flexible, high-frequency, or mechanical properties.

3. Circuit Pattern Imaging

A photoresist is applied to the copper surface.

The designed circuit pattern is transferred onto the board using an imaging process. Areas that need to remain conductive are protected, while unwanted copper will be removed during subsequent etching.

Accurate imaging is essential for maintaining trace width, spacing, pad dimensions, and overall circuit geometry.

4. Copper Etching

The exposed copper is removed using a controlled chemical etching process.

After etching, the required copper traces and pads remain on both sides of the PCB.

Process parameters must be carefully controlled. Excessive etching can reduce trace width, while insufficient etching may leave unwanted copper between adjacent circuits.

5. Drilling

Drilling is performed to create component holes, vias, mounting holes, and other required openings.

For double-sided PCBs, plated through-holes are especially important because they establish electrical connections between the top and bottom copper layers.

Depending on the design, mechanical drilling or laser drilling technologies may be used.

6. Through-Hole Plating

After drilling, the hole walls are prepared and coated with conductive material.

Copper plating is then used to create conductive connections through the drilled holes.

This process is critical because the plated hole provides the electrical path between the two copper layers.

The thickness and uniformity of the plated copper must be carefully controlled to ensure long-term reliability.

7. Solder Mask Application

Solder mask is applied to both sides of the PCB.

The coating is selectively developed so that solder pads and other designated areas remain exposed.

After curing, the solder mask protects the copper circuitry from environmental contamination and helps prevent solder bridges during component assembly.

8. Silkscreen Printing

The required component identification and markings are printed onto the PCB.

Silkscreen information can include component references, polarity indicators, product numbers, logos, and other assembly-related information.

9. Surface Finishing

A suitable PCB Surface Finish is applied to exposed copper pads.

The finish protects the copper from oxidation and improves solderability during PCB assembly.

HASL is commonly selected for cost-sensitive applications, while ENIG provides a relatively flat surface and good solderability for applications with more demanding assembly requirements.

OSP, immersion tin, and immersion silver may also be selected according to the specific application.

10. Electrical Testing and Inspection

After fabrication, the completed PCB undergoes inspection and testing.

Typical quality-control methods include:

• Automated Optical Inspection (AOI)
• Electrical continuity testing
• Open and short circuit testing
• Flying probe testing
• In-Circuit Testing (ICT)
• Visual inspection
• Solderability testing
• Dimensional inspection

The testing strategy depends on production volume, board complexity, customer requirements, and reliability standards.

Design Considerations for Double-Sided PCBs

A reliable double-sided PCB requires more than simply routing traces on two sides. Several design factors should be considered during the development stage.

Trace Width and Spacing

Trace width should be selected according to current requirements, copper thickness, allowable temperature rise, and manufacturing capability.

Clearance between conductive features must also meet the manufacturer’s minimum spacing requirements.

Via Placement

Vias provide important connections between the two copper layers, but excessive via usage can make routing less efficient.

Vias should therefore be strategically placed to achieve reliable electrical connections while maintaining adequate spacing from pads and other conductive features.

Return Current Paths

For sensitive or relatively high-speed circuits, designers should consider how return currents flow between the two sides of the board.

Poorly designed return paths can increase loop area and contribute to electromagnetic interference and signal-integrity problems.

Thermal Management

Power components and other heat-generating devices require appropriate thermal design.

Designers may use larger copper areas, thermal vias, heatsinks, thicker copper, or other thermal management techniques according to the application.

DFM Requirements

The PCB design should be compatible with the actual capabilities of the selected manufacturer.

Important parameters include:

• Minimum trace width
• Minimum spacing
• Hole diameter
• Copper thickness
• Board thickness
• Solder mask clearance
• Annular ring
• Surface finish
• Dimensional tolerance

Early DFM review can help reduce manufacturing risks, improve yield, and shorten production cycles.

Double-Sided PCB vs. Single-Sided and Multilayer PCB

The three PCB structures are designed for different levels of circuit complexity.

Feature	Single-Sided PCB	Double-Sided PCB	Multilayer PCB
Copper Layers	1	2	4 or more
Routing Space	Limited	Moderate	High
Circuit Complexity	Low	Moderate	High
Manufacturing Complexity	Low	Moderate	High
Cost	Lowest	Moderate	Higher
Design Flexibility	Limited	Good	Excellent
Typical Applications	Simple circuits	General electronic systems	High-density electronics

A Double-Sided PCB is often the preferred solution when a single-sided board does not provide sufficient routing space, but a multilayer PCB would introduce unnecessary cost or complexity.

The final choice should be based on circuit density, electrical performance, mechanical constraints, manufacturing requirements, production volume, and cost.

Why Choose Kingda for Double-Sided PCB Manufacturing?

Selecting an experienced PCB supplier is important for achieving consistent quality and reliable production.

Kingda provides professional PCB Manufacturing services for a wide range of applications and production requirements. Our manufacturing processes focus on material control, process stability, precision fabrication, electrical testing, and quality inspection.

Key advantages include:

High and Consistent Quality

Kingda follows controlled manufacturing procedures and inspection processes to maintain consistent PCB quality throughout production.

Competitive Manufacturing Cost

The relatively simple structure of a double-sided PCB allows manufacturers to optimize material usage and production processes. Kingda works to provide competitive pricing while maintaining required quality standards.

Flexible Production Capability

Different production quantities and PCB specifications can be supported according to customer requirements, making double-sided PCB technology suitable for prototypes, small batches, and volume production.

Efficient Production and Delivery

Automated manufacturing equipment and standardized production procedures help improve manufacturing efficiency and maintain stable delivery schedules.

Professional Engineering Support

Kingda’s engineering team can assist with PCB design review, DFM analysis, material selection, manufacturing requirements, and production-related technical issues.

One-Stop PCB Services

Kingda can provide integrated PCB manufacturing solutions, helping customers simplify supplier management and improve communication throughout the production process.

Conclusion

A Double-Sided PCB provides an effective balance between circuit density, manufacturing complexity, performance, and cost.

With conductive copper layers on both sides of the substrate and electrical connections provided through plated through-holes and vias, double-sided boards offer considerably more routing flexibility than single-sided PCBs while remaining simpler and more economical than many multilayer designs.

They are widely used in power electronics, automotive systems, industrial equipment, communication products, consumer electronics, and other applications.

When selecting a double-sided PCB solution, designers should consider circuit complexity, trace requirements, via design, thermal management, material selection, surface finish, manufacturing tolerances, and testing requirements. By combining an appropriate design with a reliable PCB Manufacturing Process and experienced manufacturing partner such as Kingda, customers can achieve stable quality, efficient production, and dependable PCB performance.
