Why Material Selection Matters in Aerospace PCB Design

Aerospace electronics operate in environments where temperature, vibration, pressure, radiation, mechanical stress, and electrical performance can all become critical design factors. Whether a PCB is used in an aircraft control system, satellite payload, radar, communications module, or spaceborne electronics platform, the material system must be selected according to the actual operating environment and reliability requirements.

The substrate is more than an insulating foundation. It affects dielectric performance, thermal expansion, mechanical stability, moisture behavior, signal loss, and the reliability of plated interconnections.

This makes Aerospace PCB Materials an important part of the overall engineering process. Choosing a material solely because it has a high glass-transition temperature or a low dielectric constant is not enough. Engineers need to evaluate the complete combination of electrical, thermal, mechanical, environmental, manufacturing, and qualification requirements.

For demanding aerospace projects, material selection should also be considered together with PCB construction and fabrication processes. GOPCBA provides Aerospace PCB Manufacturing solutions for applications where reliability, controlled fabrication, and engineering requirements must work together.

H2: Key Requirements for Aerospace PCB Materials

The correct material depends heavily on where and how the PCB will operate. An avionics board inside a pressurized aircraft cabin may have very different requirements from a PCB mounted near a high-temperature engine system or installed on a satellite.

Several factors should therefore be evaluated during material selection.

H3: Temperature Performance

Temperature stability is one of the most important considerations.

A PCB material may experience repeated temperature changes during operation, transportation, storage, launch, or flight. The material system should maintain appropriate mechanical and electrical properties throughout the specified operating range.

Important parameters include:

• Glass transition temperature (Tg)
• Decomposition temperature (Td)
• Coefficient of thermal expansion (CTE)
• Thermal conductivity
• Dimensional stability
• Thermal cycling behavior

Tg is useful, but it should not be used as the sole indicator of high-temperature capability. CTE, Td, moisture behavior, copper adhesion, and the complete PCB construction also affect long-term reliability.

H3: Radiation and Space Environment

Spaceborne electronics can be exposed to ionizing radiation and other environmental effects that are not normally encountered in conventional terrestrial electronics.

However, radiation requirements vary significantly according to orbit, mission duration, shielding, component location, and system architecture.

Therefore, it is more accurate to evaluate radiation tolerance based on the actual mission environment rather than assuming that one PCB material is universally suitable for all space applications.

For qualified aerospace programs, material selection may need to be supported by application-specific radiation data and testing.

H3: Mechanical Stability

Launch and flight environments can expose electronics to vibration, shock, acceleration, and mechanical stress.

The PCB material system needs to maintain dimensional stability and mechanical integrity while supporting reliable copper interconnections and component attachment.

The complete PCB construction matters here. Board thickness, copper distribution, layer count, via structures, mounting points, and component placement can all influence mechanical behavior.

H2: Common Specialized PCB Material Categories

There is no single material that represents the best solution for every aerospace PCB. Different material families offer different combinations of thermal, electrical, mechanical, and manufacturing characteristics.

H3: Polyimide-Based Materials

Polyimide is widely associated with demanding electronics because of its useful thermal and mechanical characteristics.

Polyimide-based PCB systems can be considered when the application requires:

• Broad temperature capability
• Good dimensional stability
• Mechanical flexibility in certain constructions
• Strong thermal resistance
• Reliable performance under demanding environmental conditions

Polyimide is also widely used in flexible and rigid-flex PCB structures where flexibility and thermal performance are important.

However, material selection should still be based on the specific laminate construction, fabrication process, qualification requirements, and application environment rather than the polymer family alone.

H3: High-Performance Low-Loss Materials

Aerospace communication, radar, antenna, and high-speed data systems may require materials with carefully controlled dielectric properties and low signal loss.

For these applications, engineers may evaluate:

• Dielectric constant
• Dissipation factor
• Dk stability over frequency
• Dk variation across the laminate
• Thickness tolerance
• Moisture absorption
• Thermal expansion

The objective is to maintain predictable electrical behavior across the intended frequency range.

GOPCBA also supports demanding high-speed PCB requirements through its High-Speed PCB Manufacturing capabilities, where material selection, stack-up design, impedance control, and fabrication tolerances must be considered together.

H3: Ceramic-Based Substrates

Ceramic substrates such as alumina and aluminum nitride can provide excellent thermal conductivity and temperature performance.

They may be considered for specialized applications involving:

• High power density
• High-temperature electronics
• Microwave systems
• RF modules
• Thermal-management challenges

However, ceramic materials behave differently from conventional organic PCB laminates. Brittleness, machining requirements, coefficient-of-thermal-expansion considerations, and cost can limit their use.

They should therefore be selected when their specific thermal or electrical advantages justify the additional manufacturing complexity.

H3: Cyanate Ester and Other High-Performance Systems

Cyanate ester and other advanced resin systems may be considered for applications requiring a combination of low moisture absorption, stable electrical properties, thermal performance, and dimensional stability.

These materials can be useful in certain high-frequency, aerospace, and high-reliability applications, but their suitability depends on the complete laminate system and qualification requirements.

Rather than selecting a material solely from a general category, engineers should compare actual manufacturer datasheets and qualification data for the intended application.

H2: How to Select the Right Aerospace PCB Material

A structured selection process helps prevent both under-specification and unnecessary material costs.

H3: Step 1 — Define the Operating Environment

Start by establishing the actual environmental conditions.

Consider:

• Minimum and maximum operating temperature
• Temperature cycling
• Vibration and mechanical shock
• Atmospheric pressure
• Humidity and moisture exposure
• Radiation environment
• Chemical exposure
• Expected service life

For space applications, additional environmental factors may include vacuum, radiation dose, atomic oxygen for certain low-Earth-orbit conditions, and launch loads.

The material should be selected based on these real conditions rather than simply choosing the highest-rated material available.

H3: Step 2 — Define Electrical Requirements

Next, determine the electrical performance requirements.

These may include:

• Operating frequency
• Signal rise time
• Controlled impedance
• Insertion loss
• Crosstalk requirements
• Dielectric constant
• Dissipation factor
• Power distribution requirements
• High-voltage insulation requirements

For high-speed or RF systems, dielectric stability can become just as important as thermal performance.

A material with excellent temperature resistance may not necessarily be the best choice for a high-frequency transmission path.

H3: Step 3 — Evaluate Thermal Expansion

CTE is particularly important for multilayer PCB reliability.

Different materials expand at different rates as temperature changes. Excessive expansion in the Z-axis can increase stress on plated through-holes and other interconnections during thermal cycling.

Engineers should therefore evaluate:

• X-Y CTE
• Z-axis CTE
• Tg
• Copper expansion
• Layer construction
• Hole aspect ratio
• Thermal cycling requirements

Material selection and via design should be considered together to improve long-term interconnect reliability.

H3: Step 4 — Consider Weight and Mechanical Constraints

Weight can be an important factor in aerospace systems, but reducing PCB weight should not compromise structural reliability.

The final design may need to balance:

• Board thickness
• Layer count
• Copper weight
• Material density
• Mechanical strength
• Thermal performance
• Mounting requirements

The lightest material is not necessarily the best solution. The objective is to achieve the required system performance with an appropriate structural design.

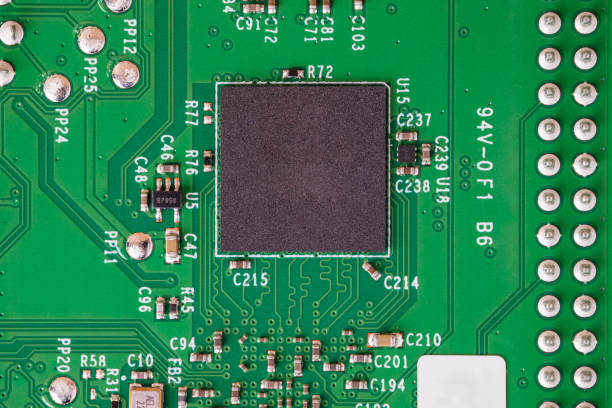

H2: Material Selection Must Match the PCB Construction

Selecting the laminate is only one part of aerospace PCB engineering.

The complete stack-up determines how the material behaves electrically and mechanically.

A high-layer-count aerospace board may require careful control of:

• Dielectric thickness
• Prepreg resin content
• Copper thickness
• Layer registration
• Via structures
• Reference planes
• Impedance
• Thermal expansion
• Copper distribution

For high-density designs, the relationship between material properties and PCB construction becomes even more important.

A material with a stable dielectric constant can still produce inconsistent impedance if the fabricated dielectric thickness varies beyond the design tolerance.

Likewise, a high-temperature laminate cannot compensate for poor lamination, drilling, plating, or registration control.

This is why Aerospace PCB Manufacturing should be treated as an integrated engineering and fabrication process rather than simply a material-selection exercise.

H2: Reliability and Qualification Considerations

Aerospace electronics generally require a documented qualification strategy appropriate to the application.

The exact requirements vary according to aircraft, spacecraft, subsystem, customer, and applicable industry or program standards.

Potential evaluation areas include:

H3: Thermal Testing

Testing may evaluate the PCB under defined temperature ranges and thermal cycling conditions.

The goal is to identify potential problems such as:

• Delamination
• Cracking
• Dimensional instability
• Interconnect fatigue
• Material degradation
• Electrical-performance changes

H3: Mechanical Testing

Mechanical qualification can evaluate performance under defined vibration and shock conditions.

The PCB construction, mounting configuration, component mass, and enclosure all influence the final mechanical response.

Therefore, PCB-level testing should be coordinated with the system-level qualification strategy.

H3: Electrical and Signal Integrity Testing

For high-speed and RF applications, testing may include impedance verification, insertion-loss evaluation, dielectric characterization, or other application-specific measurements.

These tests help verify that the fabricated PCB matches the electrical assumptions used during design.

H2: Compliance and Documentation

Compliance is an important part of aerospace PCB material selection.

However, there is no single universal certification or material standard that automatically applies to every aerospace PCB.

The applicable requirements depend on the project, customer, aircraft or spacecraft program, manufacturing class, and intended application.

Engineers should identify the applicable specifications before selecting materials and confirm that the selected laminate, copper system, surface finish, and manufacturing process can satisfy those requirements.

Documentation may include:

• Material datasheets
• Certificates of conformance
• Material traceability
• Qualification records
• Test reports
• Lot information
• Process documentation
• Customer-specific compliance records

For aerospace programs, traceability is particularly valuable because it provides evidence of what materials and processes were used during production.

H2: Common Mistakes When Selecting Aerospace PCB Materials

H3: Choosing the Highest-Performance Material by Default

A material with the highest temperature or radiation rating is not automatically the best choice.

Over-specifying the material can increase cost, manufacturing complexity, and procurement risk without providing a meaningful benefit for the actual application.

The better approach is to define the required performance envelope first and then select the material that provides sufficient margin.

H3: Focusing Only on Tg

Tg is an important parameter, but it does not describe the complete thermal or reliability behavior of a PCB.

Engineers should also consider:

• Td
• CTE
• Dk
• Df
• Thermal conductivity
• Moisture absorption
• Dimensional stability
• Interconnect reliability

H3: Ignoring Manufacturing Compatibility

A theoretically excellent material may not be suitable if the manufacturing process cannot reliably laminate, drill, plate, or finish the selected construction.

Material selection should therefore involve the PCB manufacturer early in the design process.

Manufacturing capability can influence:

• Minimum feature size
• Layer count
• Lamination structure
• Hole geometry
• Via technology
• Copper thickness
• Surface finish
• Final board tolerances

H2: Supply Chain Stability and Material Availability

Long aerospace programs can extend over many years, making material availability an important engineering consideration.

A material should not only meet the initial specification but also have a realistic supply strategy.

Procurement teams should evaluate:

• Manufacturer availability
• Approved material sources
• Lead times
• Minimum order quantities
• Product lifecycle
• Alternate materials
• Qualification requirements for material changes

A material substitution should never be treated as an automatic one-to-one replacement. Even materials with similar datasheet values can behave differently during lamination, drilling, plating, and thermal cycling.

Any significant material change should therefore be evaluated according to the project’s change-control and qualification requirements.

H2: A Practical Aerospace PCB Material Selection Checklist

Before approving a material system, engineering teams can review the following checklist:

Evaluation Area	Key Questions
Temperature	Does the material meet the complete operating and cycling range?
Thermal expansion	Is the CTE compatible with the PCB construction and interconnects?
Electrical	Are Dk, Df, impedance, and loss characteristics appropriate?
Mechanical	Can the construction withstand specified vibration and shock?
Radiation	Does the material have sufficient data for the intended radiation environment?
Weight	Does the construction satisfy system-level mass constraints?
Moisture	Is moisture absorption compatible with the application and process?
Manufacturing	Can the selected stack-up be fabricated consistently?
Qualification	Can the material be qualified against the applicable requirements?
Supply chain	Is long-term material availability realistic?
Traceability	Can material lots and production records be documented?

This approach helps engineering teams evaluate the material from both design and manufacturing perspectives.

H2: Choosing a PCB Manufacturer for Aerospace Applications

The PCB manufacturer plays an important role in converting material specifications into a repeatable finished product.

When evaluating a supplier, consider its ability to manage:

• Advanced laminate systems
• Multilayer fabrication
• High-density interconnects
• Controlled impedance
• Precision drilling
• Copper plating
• Lamination control
• Surface finishing
• Electrical testing
• Dimensional inspection
• Material traceability
• Engineering and DFM review

The manufacturer should also understand that material selection, stack-up, fabrication tolerances, and reliability are interconnected.

GOPCBA’s Aerospace PCB Design & Manufacturing capabilities can support projects requiring coordinated PCB design, fabrication, assembly, and reliability considerations.

H2: Conclusion

Selecting Specialized PCB Materials for aerospace electronics requires a systematic evaluation of the actual operating environment rather than simply choosing the most expensive or highest-rated laminate.

Temperature, thermal expansion, dielectric behavior, mechanical stress, radiation exposure, weight, manufacturing compatibility, qualification requirements, and supply-chain stability all need to be considered.

Polyimide, high-performance low-loss materials, ceramic substrates, cyanate ester systems, and other advanced material technologies each have specific advantages and limitations. The best choice depends on the application and the required performance envelope.

Most importantly, material selection should be integrated with PCB stack-up design and manufacturing process control. A high-performance material cannot compensate for poor registration, inadequate plating, uncontrolled lamination, or inappropriate via construction.

By evaluating material properties together with the complete PCB design and manufacturing process, aerospace engineering teams can develop a more reliable and predictable hardware platform for demanding aircraft and space applications.
