In modern defense systems, electronic reliability is not a “bonus” — it is a fundamental prerequisite. Whether in radar systems, encrypted communication equipment, guidance and fire control units, or intelligence and surveillance platforms, the core of every mission-critical system depends on high-reliability PCB manufacturing capabilities.

Unlike commercial electronics, defense system PCB manufacturing must contend with extreme environments, extended service lifespans, and zero-tolerance for failure. This article provides an engineering-focused guide to transitioning military-grade PCB fabrication from prototype validation to stable, long-term mass production.

defense system PCB manufacturing

Table of Contents

  1. Defense System PCB Manufacturing Overview
  2. Why Defense Systems Require Dedicated PCB Manufacturing Capabilities
  3. Key Application Areas of PCBs in Defense Systems
  4. Critical Design Considerations in the Defense PCB Prototype Phase
  5. Defense System PCB Prototype Manufacturing
  6. Certification, Compliance, and Documentation Management for Defense PCBs
  7. Key Transition Phase: From Prototype to Mass Production
  8. Scaled Production of Defense System PCBs
  9. Quality Control and Testing for Defense PCBs
  10. Cost Considerations in Defense System PCB Manufacturing
  11. How to Choose the Right Defense PCB Manufacturer
  12. Trends in Defense PCB Manufacturing
  13. Conclusion: Building a Reliable Defense PCB Ecosystem from Prototype to Production
  14. Frequently Asked Questions (FAQ)

1. Defense System PCB Manufacturing Overview

Defense electronic equipment typically operates in environments characterized by high vibration, strong mechanical shock, extreme temperature fluctuations, high humidity, and intense electromagnetic interference. These conditions impose far greater demands on PCB materials, structural design, and fabrication processes than industrial or consumer electronics.

A mature defense PCB manufacturing process must integrate the following core elements:

  • Controlled and traceable raw materials
  • Stable, repeatable fabrication processes
  • Rigorous inspection and validation mechanisms
  • Comprehensive documentation and quality records

Only through these measures can a PCB maintain stable performance throughout its entire service life.

2. Why Defense Systems Require Dedicated PCB Manufacturing Capabilities

Defense systems exhibit distinct characteristics at both the design and manufacturing levels, primarily reflected in:

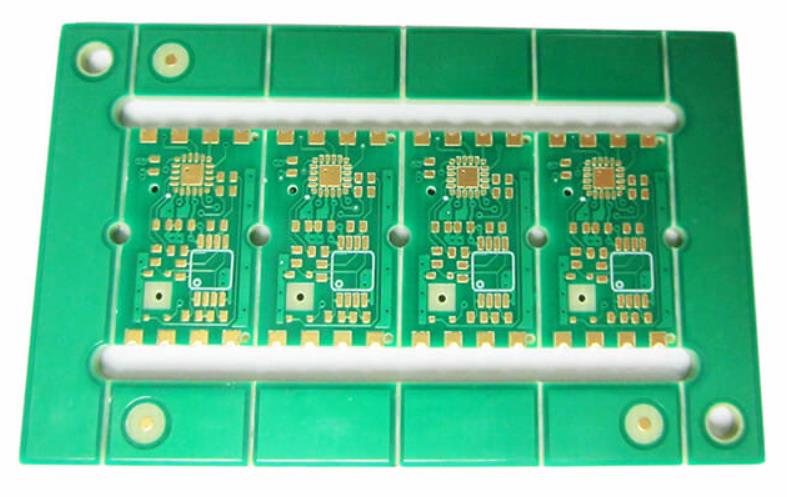

military-grade PCB fabrication

  • Service life extending 10–30 years
  • Zero-tolerance for failure at the mission level
  • Long-term assurance of material and process consistency
  • Strict adherence to IPC and military standards

Therefore, high-reliability PCB manufacturing is not merely a set of process requirements — it is a systematic engineering discipline that spans design, fabrication, testing, and supply chain management.

3. Key Application Areas of PCBs in Defense Systems

Communication and Radar Systems

Radar and military communication systems extensively use RF and high-frequency PCBs, demanding precise impedance control, dielectric stability, and low-loss materials. These represent some of the most challenging applications in defense PCB manufacturing.

Weapon Control and Guidance Systems

Guidance and fire-control electronics typically employ multilayer or HDI PCBs, emphasizing signal integrity, power delivery stability, and interference immunity. Failure in these systems directly impacts mission success.

Avionics and Surveillance Equipment

Avionics and ISR (Intelligence, Surveillance, Reconnaissance) equipment require lightweight, highly integrated designs with exceptional vibration and temperature resistance. These impose stringent demands on military-grade PCB fabrication processes.

4. Critical Design Considerations in the Defense PCB Prototype Phase

Material Selection for Military-Grade PCBs

Common materials include high-Tg FR-4, polyimide, and various high-frequency substrates. Material selection directly influences the PCB’s thermal stability, electrical performance, and long-term reliability.

Signal Integrity and Impedance Control

High-speed and RF signals require precise stackup design, trace width and spacing control, and tight manufacturing tolerances. This is a core competency of high-reliability PCB manufacturing.

Thermal and Power Management Design

Through heavy copper design, thermal vias, and well-planned power planes, thermal issues arising from high power density can be effectively addressed.

5. Defense System PCB Prototype Manufacturing

Rapid Prototype PCB Sampling

Defense PCB prototypes are typically fabricated using the same materials and processes as production units to ensure test results are engineering-relevant.

Design Validation and Functional Testing

During the prototype phase, electrical testing, functional validation, and preliminary environmental stress testing are performed to identify potential risks early.

Design for Manufacturability (DFM) Review

Engaging a manufacturer with military experience at this stage is particularly critical. A professional partner like gopcb can provide DFM recommendations during the prototype phase, significantly reducing risks in subsequent mass production. For prototyping needs, explore prototype PCB assembly services.

6. Certification, Compliance, and Documentation Management for Defense PCBs

IPC Class 3 Standard

The vast majority of defense PCBs are manufactured to IPC Class 3 standards, the highest reliability level in the electronics industry.

Military Standards and Quality Specifications

Certain programs require compliance with MIL-PRF and other military specifications, demanding deeper inspection and tighter process control.

Traceability and Data Security

Complete batch traceability, material records, and data security management are indispensable components of military-grade PCB fabrication.

7. Key Transition Phase: From Prototype to Mass Production

Challenges of Ramping to Production

These include yield stability, process consistency, and long-term supplier reliability.

Process Control and Yield Optimization

Through statistical process control (SPC) and standardized workflows, consistent performance across PCB batches is ensured.

Supply Chain Stability Management

Defense programs demand continuity of supply, requiring proactive mitigation of material obsolescence and geopolitical risks.

8. Scaled Production of Defense System PCBs

High-Mix Low-Volume and Sustained Production

Most defense programs are high-mix, low-volume, though some also require steady medium-volume production.

Automation and Consistency Control

Introducing automation in key processes enhances consistency and meets the stringent demands of high-reliability PCB manufacturing. For high-volume needs, explore high-volume PCB assembly solutions.

Long-Term Reliability Verification

Ongoing reliability sampling during production ensures performance does not degrade over time.

9. Quality Control and Testing for Defense PCBs

Electrical Testing and AOI

Typically, 100% electrical testing and automated optical inspection are performed to eliminate potential defects.

Environmental and Stress Testing

Thermal cycling, vibration, and humidity testing simulate real-world operating environments.

Failure Analysis and Continuous Improvement

When anomalies occur, systematic failure analysis is conducted to feed improvements back into design and fabrication processes.

10. Cost Considerations in Defense System PCB Manufacturing

Cost Differences Between Prototype and Production

Prototypes are more expensive per unit due to engineering setup and small quantities, while mass production significantly reduces unit cost through process optimization.

Key Factors Influencing Defense PCB Costs

These include layer count, material type, board thickness, impedance control, testing requirements, and documentation demands.

Defense PCB Price Reference Ranges

Below are typical price ranges for defense PCB manufacturing:

  • 2–6 layer defense PCB prototype: approximately USD 300–1,200 per batch
  • HDI or high-frequency PCB prototype: approximately USD 800–2,500 per batch
  • Low-volume production (50–200 pieces): approximately USD 40–180 per board
  • Medium-volume production (500–2,000 pieces): approximately USD 15–80 per board

Exact pricing depends on technical specifications and compliance requirements.

11. How to Choose the Right Defense PCB Manufacturer

An ideal partner should possess:

  • Proven experience in military-grade PCB fabrication
  • IPC Class 3 production capability
  • A comprehensive traceability and quality system
  • Robust protection of technical data

gopcb offers end-to-end defense PCB manufacturing services from prototype to mass production, supported by an engineering-driven quality system designed for long-term military programs. Explore our turnkey PCB assembly and SMT PCB assembly capabilities.

12. Trends in Defense PCB Manufacturing

Future trends include higher layer counts, greater integration density through HDI technology, advanced material applications, and deeper synergy between PCB fabrication and electronic assembly — all of which impose greater demands on high-reliability PCB manufacturing.

13. Conclusion: Building a Reliable Defense PCB Ecosystem from Prototype to Production

Successful defense system PCB manufacturing relies on rigorous engineering design, controlled fabrication processes, and a trustworthy manufacturing partner. Through a systematic approach, defense electronics can maintain stable, reliable performance throughout their entire lifecycle. For low-volume needs, explore our low-volume PCB assembly services.

14. Frequently Asked Questions (FAQ)

1. How do defense PCBs differ from standard industrial PCBs?
Defense PCBs place greater emphasis on long-term reliability, strict standards, and full traceability.

2. Are defense PCBs always required to meet IPC Class 3?
In most cases, yes — some programs also impose additional military specifications.

3. What is the typical lead time for defense PCB prototyping?
Usually 5–15 working days, depending on complexity.

4. Can the same manufacturer handle both prototyping and mass production?
Yes, this reduces transition risks. Manufacturers like gopcb offer comprehensive support across both phases.

5. How can costs be reduced without compromising reliability?
Through early DFM engagement, material optimization, and well-structured production planning.
