In high-speed PCB design, engineers often focus on differential impedance, trace width, via structures, and stackup configuration when troubleshooting signal-integrity problems. However, one issue that is sometimes overlooked is the continuity of the reference plane beneath the differential pair.
A slot, copper void, thermal-relief opening, or other discontinuity underneath a high-speed differential pair can significantly alter the return-current path. Even when the DC ground connection remains electrically continuous elsewhere on the board, the local high-frequency return path may become substantially longer and more inductive.
The result can include increased common-mode conversion, impedance variation, additional insertion loss, crosstalk, and deterioration of the receiver eye diagram.
Why a Broken Reference Plane Affects High-Speed Signals
At high frequencies, return current does not distribute uniformly across the entire ground plane. Instead, it tends to concentrate in the region close to the signal trace because this configuration generally minimizes loop inductance.
When a differential pair passes over a continuous reference plane, the return current can follow a relatively short and predictable path.
When a slot is introduced directly beneath the traces, however, the return current encounters a discontinuity. It must move around the edge of the opening or transfer to another reference structure through vias or other conductive paths.
This increases the effective return-path length and can increase loop inductance.
A simplified relationship is:
[V_L=L\frac{di}{dt}]
where (L) represents effective loop inductance and (di/dt) represents the rate of current change.
As signal edge rates become faster, even a relatively small increase in inductance can produce a measurable transient voltage. More importantly for differential signaling, an asymmetric return path can disturb the balance between the positive and negative traces.
That imbalance can increase differential-to-common-mode conversion and degrade signal integrity.
Differential Signaling Does Not Eliminate Reference-Plane Requirements
A common misconception is that differential signals do not require a continuous reference plane because the two traces form a self-contained current loop.
The differential pair does provide strong electromagnetic coupling between the two conductors, and some of the return current is associated with the field between the traces. However, the complete electromagnetic structure still depends on the PCB stackup, dielectric geometry, reference conductors, connector structures, vias, and common-mode current paths.
The situation becomes more sensitive when:
- The differential spacing is relatively large
- The pair is loosely coupled
- The traces are far from the reference plane
- The pair passes through a connector or via transition
- The structure contains significant common-mode energy
- The reference plane is asymmetrically interrupted
Therefore, a continuous reference plane should normally be treated as an important part of the transmission-line structure rather than an optional ground connection.
How a Reference-Plane Slot Changes the Return Path
Consider a differential pair routed on an outer layer with a solid ground plane directly underneath it.
Under normal conditions, the return current remains concentrated near the signal path.
If a slot is cut into the ground plane, several effects can occur.
1. Return-Path Extension
The current must travel around the slot instead of following the shortest path underneath the signal.
This increases the effective loop area and may increase inductance.
2. Current-Density Redistribution
The return current becomes concentrated near the edges of the discontinuity. Local current density can therefore become significantly different from that of a continuous plane.
3. Differential Imbalance
If the slot is positioned closer to one trace than the other, the two conductors experience different electromagnetic environments.
This creates asymmetry in the differential structure and can increase mode conversion.
4. Additional Resonance and Coupling
A large plane opening can interact with nearby copper structures, vias, cavities, and power planes. Depending on its dimensions and location, the resulting structure can support resonant behavior over particular frequency ranges.
The exact resonance frequency cannot be determined from slot width alone. Board dimensions, dielectric thickness, boundary conditions, plane geometry, and excitation all contribute to the result.
Why the Eye Diagram Becomes Worse
The eye diagram is a useful system-level indicator because it combines the effects of many signal-integrity mechanisms.
A reference plane discontinuity can contribute to eye degradation through several paths:
- Additional insertion loss
- Reflection caused by impedance discontinuity
- Increased jitter from waveform distortion
- Differential-to-common-mode conversion
- Additional crosstalk
- Resonant behavior
- Increased inter-symbol interference
- Power-distribution coupling
The resulting eye may show reduced eye height, reduced eye width, increased deterministic jitter, or increased total jitter.
However, it is not technically correct to state that every reference-plane slot will reduce eye opening by a fixed percentage. The magnitude depends strongly on data rate, rise/fall time, stackup, slot geometry, trace position, differential coupling, receiver characteristics, and channel length.
Edge Rate Matters More Than Nominal Data Rate
One of the most important factors in evaluating a plane discontinuity is signal edge rate.
A relatively low-data-rate signal with a very fast edge can contain substantial high-frequency spectral content. Consequently, a signal operating at a modest bit rate can still be sensitive to a small reference-plane discontinuity.
Conversely, a higher data-rate interface with slower edge shaping may have different sensitivity.
For practical high-speed PCB analysis, engineers should therefore consider:
- Rise and fall time
- Nyquist frequency
- Significant harmonic content
- Channel insertion loss
- Return-path geometry
- Differential impedance
- Common-mode conversion
The commonly used relationship between propagation velocity, frequency, and wavelength is:
[v=f\lambda]
For PCB transmission lines, the relevant propagation velocity depends on the effective dielectric environment rather than simply the speed of light in free space.
Therefore, wavelength-based design rules should be calculated from the actual stackup and effective dielectric constant rather than applying one fixed wavelength to every PCB.
Why Fixed Slot-Width Rules Can Be Misleading
It is tempting to define a universal rule such as “a slot wider than a certain value always causes eye-diagram failure.”
In practice, this is too simplistic.
The same slot width can have very different effects depending on the distance between the signal and reference plane.
For example, a 0.5 mm opening located very close to a trace can be much more disruptive than the same opening located several millimeters away.
A more useful geometric parameter is the relationship between:
- Slot width
- Slot length
- Trace-to-plane dielectric thickness
- Differential-pair spacing
- Distance from the slot to each trace
- Signal rise time
- Operating frequency
- Plane dimensions
A practical PCB design review should therefore evaluate the complete electromagnetic geometry rather than rely on a single width threshold.
Single-Point and Multi-Point Plane Bridging
When a differential pair cannot be rerouted around a plane opening, engineers may consider restoring the return path with stitching vias or copper bridges.
The correct implementation depends on the stackup and current-return structure.
A single connection point may not provide an adequately low-inductance path over a broad frequency range. Multiple closely spaced connections can provide a more continuous return-current path, but their spacing must be determined from the actual electrical wavelength and geometry.
Ground stitching vias can be particularly useful when a signal changes reference layers.
The objective is not simply to add more vias. The vias should create a low-inductance transition between the relevant reference structures while avoiding unnecessary resonant structures or coupling.
Differential Pair Asymmetry Is a Major Risk
A particularly dangerous configuration occurs when a plane opening is located under only one side of the differential pair.
In this case, the P and N conductors experience different reference environments.
One trace may retain a short return path while the other must route around the opening. This asymmetry changes the local field distribution and can produce differential impedance imbalance and common-mode conversion.
This is often more problematic than a symmetrically positioned opening because the differential pair no longer behaves as a balanced structure.
For this reason, differential pair routing should be reviewed together with the reference-plane geometry rather than evaluated only by trace width and spacing.

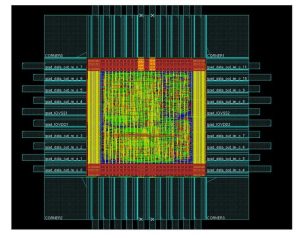

Reference Plane Discontinuities Around Connectors and Vias

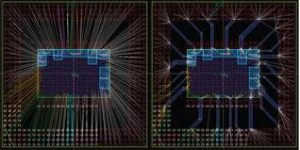

Plane discontinuities are particularly important around high-speed connectors, BGA breakouts, and layer transitions.
When a high-speed signal enters or exits a connector, the return current must also transition through the corresponding reference structure.
If the connector pad field contains large plane voids, missing ground vias, or an interrupted return path, the transition may produce a significant impedance discontinuity.
For high-speed layer transitions, ground stitching vias placed near the signal vias can help provide a controlled return path.
However, the exact via diameter, spacing, and placement should be optimized using the actual stackup and electromagnetic model rather than a universal dimensional rule.
Practical Simulation and Measurement Methods
When a signal integrity problem is suspected to originate from a broken reference plane, a combination of simulation and measurement is more reliable than using one test alone.
Field Solver Analysis
A 2D field solver can evaluate differential impedance and field distribution for a relatively uniform transmission-line cross-section.
However, a plane slot is a three-dimensional discontinuity. A simple 2D model may therefore fail to capture the complete electromagnetic behavior.
For critical interfaces, 3D electromagnetic simulation can be used to analyze:
- Plane openings
- Via transitions
- Connector launches
- Ground stitching
- Differential-to-common-mode conversion
- Local resonances
TDR/TDT Testing
Time-domain measurements can help identify the physical location of an impedance discontinuity.
If the discontinuity appears at the same physical location as the reference-plane slot, the correlation provides useful evidence for further investigation.
S-Parameter Measurement
For high-speed or RF channels, S-parameter measurements can quantify insertion loss, return loss, and mode conversion.
For differential interfaces, parameters such as SDD21 and SCD21 can provide additional information about differential transmission and common-mode conversion.
Eye-Diagram Testing
Finally, the eye diagram provides a system-level view of the accumulated channel degradation.
If the eye opening improves significantly after restoring the reference plane while other channel variables remain unchanged, the reference-plane discontinuity becomes a strong candidate for the root cause.
Recommended PCB Design Checklist
During PCB design reviews for high-speed differential interfaces, engineers should check:
- Maintain a continuous reference plane beneath critical differential pairs.
- Avoid routing high-speed pairs across plane splits or large copper voids.
- Check both sides of the differential pair for symmetrical reference conditions.
- Review plane openings around BGA, connector, and via-transition regions.
- Provide an appropriate return path when signals change reference layers.
- Use stitching vias where required by the stackup and current-return structure.
- Include major plane discontinuities in SI simulation.
- Correlate simulation with TDR and S-parameter measurements during validation.
- Review rise/fall time rather than relying only on nominal data rate.
- Include manufacturing tolerances in the final design review.
How Kingda Can Support High-Speed PCB Design
For demanding high-speed applications, maintaining signal integrity requires coordination between layout, stackup design, fabrication, and electrical validation.
Kingda can support high-speed PCB projects with controlled multilayer fabrication, impedance control, via and reference-plane management, and manufacturing verification. By reviewing the transmission structure from both the electrical and manufacturing perspectives, engineers can reduce the risk of reference-plane discontinuities and maintain more consistent high-speed performance from prototype to mass production.
Conclusion
A broken reference plane does not necessarily cause a problem simply because DC ground continuity is interrupted. The more important issue is that the discontinuity can force high-frequency return current away from its preferred path.
For a high-speed differential pair, this can increase loop inductance, disturb field symmetry, introduce impedance discontinuity, increase common-mode conversion, and ultimately degrade the eye diagram.
The most effective solution is usually to prevent the discontinuity during PCB design. When that is not possible, the return path should be deliberately engineered using appropriate reference structures, stitching vias, layer transitions, and electromagnetic verification.
For critical high-speed interfaces, reference-plane continuity should therefore be treated as an essential part of the signal path—not merely as a DC grounding consideration.
