Batch delivery does not mean that a halogen-free PCB project has been successfully implemented. Many hardware teams consider PCB arrival and basic electrical continuity testing to be the end of the project. However, without systematic documentation review, material verification, sampling inspection, and reliability validation, problems may only appear during large-scale assembly.

Potential issues can include soldering defects, delamination, excessive halogen content, moisture-related failures, and environmental test failures.

A successful halogen-free PCB project therefore requires more than selecting a compliant laminate. Engineers should establish a complete acceptance and validation process while balancing compliance, reliability, manufacturing capability, and total cost.

1. Review Delivery Documents Before Production

When a batch of PCBs arrives, document verification should be completed before the boards enter SMT production.

The first item is a Certificate of Conformity (COC) or equivalent material compliance documentation. The documentation should clearly identify the material system used for the core, prepreg, solder mask, and other applicable materials and confirm compliance with the customer’s specified halogen-free PCB requirements.

The second item is the original laminate manufacturer’s datasheet. Engineers should verify critical parameters such as:

• Tg
• Td
• Z-axis CTE
• Dk and Df
• Moisture absorption
• Flammability rating
• Recommended processing conditions

These values should correspond to the material grade approved during the engineering phase.

The third item is the batch inspection report. XRF and ion chromatography (IC) serve different purposes.

XRF is useful for rapid incoming-material screening because it can quickly identify certain elements. IC can provide quantitative analysis of specific halogen species and may be required when a customer specification or compliance program calls for laboratory-level verification.

A common mistake is to accept only an SGS or other compliance report for the copper-clad laminate. A laminate report may not cover every material used in the finished PCB. Prepreg, solder mask, and other materials may require separate declarations or test evidence depending on the customer’s compliance requirements.

Therefore, the purchase order or quality agreement should define the required documentation before production begins.

2. Sampling Inspection: Separate Basic Acceptance From Reliability Validation

A batch acceptance program should distinguish routine inspection from application-specific reliability testing.

Typical incoming inspection items include:

• Visual inspection
• Dimensions and tolerances
• Hole position and diameter
• Electrical continuity and insulation testing
• Surface finish inspection
• Controlled impedance, where specified
• Board thickness
• Solder mask and silkscreen condition

Sampling plans should be established according to the product’s quality requirements, production volume, customer specifications, and applicable IPC or internal quality procedures.

Reliability tests should not automatically be identical for every product.

For general consumer applications, reliability qualification may be completed during prototype or pilot production, followed by defined production monitoring.

For automotive, energy-storage, medical, industrial, or other high-reliability applications, additional validation may be required, such as:

• Microsection analysis
• Thermal shock or thermal cycling
• Solder float or solderability evaluation
• Pressure cooker testing (PCT)
• Moisture resistance testing
• CAF evaluation
• Insulation resistance testing
• CTI testing, where applicable

The exact temperature, duration, number of cycles, and acceptance criteria should be determined by the applicable product standard and customer specification rather than using one universal test condition.

3. Halogen Verification Should Use a Risk-Based Approach

Halogen verification is a key part of PCB quality control when the project has defined halogen limits.

XRF can be used as an incoming screening tool, particularly for rapid production checks. If a measurement approaches the internal control limit or the result is uncertain, additional laboratory analysis can be performed.

IC testing can provide more specific quantitative information for chloride, bromide, and other relevant ionic species, depending on the test method.

The most appropriate inspection method depends on:

• Customer compliance requirements
• Regulatory requirements
• Material declaration requirements
• Product risk level
• Supplier qualification status
• Internal quality-control procedures

For high-value or high-risk projects, periodic third-party verification can supplement supplier documentation.

The objective is not to test every board unnecessarily, but to establish a traceable verification system that provides sufficient confidence in material compliance.

4. Avoid Common Halogen-Free PCB Selection Mistakes

Mistake 1: Assuming Halogen-Free Materials Are Always Better

A halogen-free PCB is designed to meet specified halogen-content requirements. This does not automatically mean that it provides superior performance in every application.

Material selection should consider the actual requirements for:

• Thermal resistance
• Tg and Td
• Z-axis CTE
• Electrical insulation
• Moisture resistance
• Mechanical strength
• CAF resistance
• High-frequency performance
• Cost

If a product has no halogen restriction and does not require the additional material characteristics of a particular halogen-free laminate, selecting a more expensive material may not provide a meaningful system-level benefit.

Mistake 2: Treating Halogen-Free as Equivalent to High Tg

Halogen-free and high Tg describe different material characteristics.

Halogen-free refers primarily to the material’s chemical composition and compliance with specified halogen limits.

Tg, or glass-transition temperature, describes a laminate’s transition in mechanical and dimensional behavior with increasing temperature.

A laminate can therefore be halogen-free without being a high-Tg material.

For products exposed to repeated reflow, high operating temperatures, or demanding thermal cycling, engineers should evaluate Tg, Td, CTE, decomposition behavior, and other relevant parameters independently.

Mistake 3: Copying Standard FR-4 Assembly Conditions Without Validation

A halogen-free laminate should not automatically be assumed to require exactly the same assembly process as every conventional FR-4 material.

Material-specific characteristics can influence:

• Moisture sensitivity
• Thermal decomposition behavior
• Resin flow
• Drilling
• Desmear
• Reflow response
• Solderability

If the incoming PCB has exceeded its specified moisture exposure limits, the appropriate preconditioning or baking process should follow the laminate manufacturer’s recommendations and the applicable assembly standard.

A fixed baking condition such as 120–125°C for four hours should therefore not be treated as a universal requirement. Excessive or unnecessary baking can also affect some surface finishes or materials.

The correct procedure is to verify the material’s moisture-sensitivity requirements, storage history, packaging condition, and manufacturer’s processing recommendations before SMT.

5. Reliability Validation for High-Reliability Applications

For high-reliability products, compliance testing alone is not sufficient.

Microsection analysis can be used to inspect:

• Plated-hole copper thickness
• Hole-wall quality
• Interlayer bonding
• Resin distribution
• Voids
• Internal defects

Thermal cycling evaluates how the PCB structure responds to repeated temperature changes. The appropriate temperature range and cycle count depend on the product’s operating environment and qualification standard.

PCT or other moisture-related testing can help evaluate resistance to moisture and thermally induced delamination.

For electrical insulation, CTI testing may be relevant where the PCB operates under conditions requiring specific comparative tracking performance.

In addition, engineers should consider the relationship between PCB reliability and assembly reliability. A board that passes material qualification may still fail because of soldering profiles, component stress, board warpage, contamination, or mechanical loading.

Therefore, PCB validation should be considered as part of the complete product reliability system.

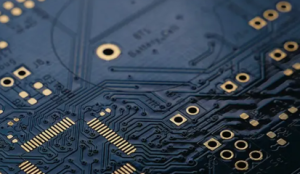

6. How to Control Halogen-Free PCB Costs

A PCB cost control strategy should balance compliance requirements with actual product needs.

One effective approach is specification-based material selection.

Instead of automatically choosing the highest-performance laminate, engineers can define the minimum required combination of:

• Halogen compliance
• Tg
• Td
• CTE
• Dk/Df
• Moisture resistance
• Electrical performance
• Reliability requirements

The selected material should meet these requirements with an appropriate engineering margin.

DFM optimization is another important cost-control method. Avoiding unnecessarily aggressive hole sizes, extreme aspect ratios, excessive layer transitions, and difficult copper structures can reduce manufacturing complexity.

Standardizing material grades across multiple projects can also improve purchasing efficiency and reduce the risk associated with frequent material substitutions.

However, the correct cost metric is not simply PCB unit price.

A more complete evaluation should consider:

Total Cost = PCB purchase cost + qualification cost + testing cost + manufacturing impact + potential failure cost

A slightly higher PCB material cost may be justified if it reduces field failures, production interruptions, warranty costs, or customer qualification risks.

7. Establish a Closed-Loop Quality System

After a batch project is completed, all important technical records should be archived.

A typical PCB quality control database can include:

• Approved laminate specifications
• Core and prepreg material grades
• COC documentation
• Halogen test reports
• XRF or IC results
• Microsection reports
• Reliability test results
• Supplier qualification records
• Production lot information
• Failure-analysis reports

This information can become an internal material and process database.

When a similar product is developed, engineers can reuse previously validated material systems instead of starting material selection from scratch.

For any failed sample, the analysis should distinguish among:

• Material-related failure
• PCB design-related failure
• Manufacturing-process failure
• SMT process failure
• Environmental or application-related failure

This closed-loop approach helps continuously improve material selection and production standards.

8. Recommended Acceptance Workflow for Batch Production

A practical halogen-free PCB acceptance workflow can be organized into six stages:

Stage 1 — Documentation Review
Verify material declarations, COC, datasheets, test reports, lot information, and customer compliance requirements.

Stage 2 — Incoming Inspection
Check appearance, dimensions, thickness, holes, electrical performance, and surface finish.

Stage 3 — Compliance Verification
Perform XRF screening and laboratory IC testing when required by the risk level or customer specification.

Stage 4 — Reliability Validation
Perform microsection, thermal cycling, moisture testing, PCT, CTI, or other applicable tests based on product requirements.

Stage 5 — SMT Process Verification
Confirm storage, moisture handling, baking or preconditioning requirements, reflow profile, solderability, and board warpage.

Stage 6 — Production Release
After the required acceptance criteria are met, release the approved material and process configuration for mass production and retain full traceability.

Conclusion

Successful implementation of a halogen-free PCB project requires much more than receiving a batch of boards and confirming electrical continuity.

A reliable acceptance system should combine documentation verification, incoming inspection, halogen-content verification, reliability testing, SMT-process validation, and traceable quality records.

At the same time, PCB cost control should focus on selecting materials according to actual application requirements rather than simply choosing the highest specification available.

By establishing clear acceptance criteria, validating critical materials, standardizing qualified suppliers and material systems, and continuously analyzing production data, companies can achieve a practical balance among compliance, reliability, manufacturing efficiency, and total cost.
