The success of PCB Assembly depends not only on the manufacturing process but also on decisions made during the initial PCBA Design stage. Product functionality, cost, component selection, manufacturing capability, and assembly sequence must all be considered before production begins.

As electronic products continue to become smaller and more highly integrated, double-sided surface mount technology (SMT) has become widely used. However, assembling components on both sides of a PCB introduces additional challenges, particularly during the second Reflow Soldering process.

This article explains the key factors that should be considered when designing a PCBA for double-sided SMT, including component placement, heavy components, BGA and LGA devices, temperature-sensitive components, PIH/PIP components, PCB warpage, and soldering process selection.

1. Product Function and PCBA Design

The first consideration in PCBA Design is the product’s functional requirements.

The design should satisfy the basic electrical requirements while also allowing for future product upgrades, additional functions, and potential integration with related products.

At the same time, the design should consider manufacturability and serviceability. A circuit design that performs well electrically may still create production difficulties if components are difficult to place, solder, inspect, or repair.

Important design considerations include:

• Product functionality
• Electrical performance
• Component selection
• Component availability
• Thermal requirements
• Mechanical constraints
• Manufacturing capability
• Assembly sequence
• Inspection and testing
• Maintenance and repair requirements

A well-designed PCBA should balance electrical performance with manufacturing efficiency and long-term reliability.



2. PCBA Cost and Return on Investment

Cost is another important factor in PCBA Design.

Different PCB manufacturers and assembly suppliers may provide different levels of manufacturing capability, quality, process control, and cost. Therefore, designers should not evaluate a PCBA only according to its initial component or manufacturing cost.

A better approach is to consider the overall cost throughout the product life cycle.

Factors affecting total PCBA cost include:

• PCB material
• Component cost
• Component package selection
• SMT assembly cost
• Number of assembly passes
• Reflow process requirements
• Through-hole processing
• Inspection requirements
• Rework requirements
• Manufacturing yield
• Product reliability

Reducing the number of unnecessary assembly operations can improve production efficiency and reduce manufacturing costs.

However, cost reduction should never compromise soldering quality, reliability, or product performance.

3. Selecting the Right PCBA Manufacturing Partner

A reliable PCB Assembly process requires close cooperation between the PCB designer, component supplier, PCB manufacturer, and assembly provider.

The design cannot be considered independently from the capabilities of the manufacturing facility.

When selecting a manufacturing partner, designers should consider:

• SMT placement capability
• Fine-pitch component capability
• BGA assembly experience
• Double-sided SMT capability
• Reflow process control
• Through-hole assembly capability
• AOI and X-ray inspection
• Process traceability
• Rework capability
• Quality management
• Production capacity

Kingda provides PCB manufacturing and assembly capabilities designed to support different PCB structures and assembly requirements. Early communication between the design and manufacturing teams can help identify potential DFM issues before mass production.

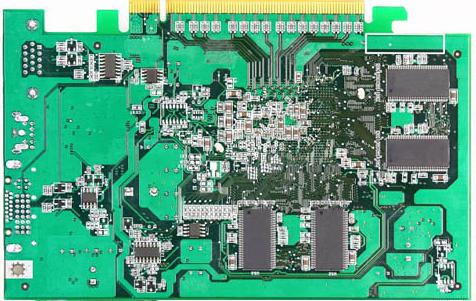

4. Introduction to Double-Sided SMT

The most common process used for SMT assembly is Reflow Soldering.

Depending on the product design, SMT assembly may be performed on one side or both sides of the PCB.

Single-sided assembly is relatively straightforward. However, double-sided SMT requires the PCB to pass through the reflow process twice, which introduces additional considerations for component placement and thermal exposure.

A typical double-sided SMT process can be summarized as:

First-Side Solder Paste Printing → Component Placement → First Reflow → PCB Inspection → Second-Side Solder Paste Printing → Component Placement → Second Reflow → Inspection

The exact process sequence depends on the PCB structure, component package types, assembly equipment, and solder paste process.

5. Why Do Small Components Usually Stay on the PCB During the Second Reflow?

One common question about double-sided SMT is why small components generally do not fall off the PCB during the second reflow, while heavier components may.

During the second reflow process, the PCB is usually transported with the previously assembled side facing downward. When the solder joints on that side are reheated above the solder’s melting range, the solder becomes partially or fully molten.

Gravity therefore acts on the components.

However, the surface tension of molten solder at the component pads provides a significant holding force. For small and lightweight SMD Components, this force is generally sufficient to keep the components attached to the PCB.

The balance can be simplified conceptually as:

Solder Surface Tension > Component Weight

For lightweight components, the solder’s surface tension is normally sufficient to prevent them from falling.

For large or heavy components, however, gravity may become significant enough to overcome the available solder-joint holding force. This is why component weight and package geometry must be considered carefully when planning double-sided assembly.

6. Which SMD Components Should Be Placed on the First Reflow Side?

Smaller and lighter SMD Components are generally more suitable for placement on the first-reflow side.

Typical examples include:

• Small resistors
• Small capacitors
• Small diodes
• Small transistors
• Lightweight passive components
• Other small SMT packages

These components usually have relatively low mass and therefore have a lower risk of falling during the second reflow process.

Component placement should also consider PCB flatness, solder-paste printing accuracy, component spacing, and inspection requirements.

7. Which Components Should Be Placed on the Second Reflow Side?

Component placement for the second reflow side requires more careful consideration.

Heavy or Large Components

Large or heavy components are generally better positioned on the second-reflow side when possible.

This arrangement reduces the risk that their weight will cause them to detach when the solder joints on the first side are remelted.

Examples may include:

• Large inductors
• Transformers
• Heavy connectors
• Large capacitors
• Heat sinks or mechanically heavy components

However, the actual decision should also consider the assembly equipment and the overall product structure.

BGA and LGA Components

BGA Components and LGA packages require special consideration.

Placing these components on the second-reflow side can reduce the risk associated with reheating their solder joints during a second pass.

However, this does not mean that every BGA should automatically be placed on the second side.

The designer must also consider:

• PCB warpage
• BGA package size
• Ball diameter
• Pad design
• Solder-paste volume
• Board thickness
• Thermal profile
• Placement accuracy
• X-ray inspection requirements

For fine-pitch BGA devices, board deformation during the second SMT pass can have a greater influence on soldering quality.

Therefore, placement decisions should be based on the complete assembly process rather than on component weight alone.

8. Why PCB Warpage Is Critical in Double-Sided SMT

PCB Warpage is one of the major challenges in double-sided assembly.

After the first reflow cycle, the PCB has already experienced a high-temperature thermal cycle. During the second solder-paste printing and component placement process, the board may exhibit some degree of bow or twist.

Even relatively small deformation can affect:

• Solder-paste printing
• Stencil-to-board contact
• Paste volume
• Component placement accuracy
• Fine-pitch component alignment
• BGA solder-joint formation

This is particularly important for 0201 components, fine-pitch components, and high-density BGA packages.

Therefore, the focus should not simply be on deciding which side receives a BGA. The more fundamental objective is to control PCB Warpage throughout the entire manufacturing process.

9. Avoiding 0201 and Fine-Pitch Components on the More Challenging Side

After the first reflow cycle, board flatness may become more difficult to control.

If the second-side solder-paste printing process is performed on a significantly warped PCB, stencil contact may become inconsistent.

This can cause:

• Insufficient solder paste
• Excessive solder paste
• Solder bridging
• Open solder joints
• Component misalignment
• Insufficient solder volume

For this reason, designers should carefully evaluate whether extremely small components such as 0201 devices and very fine-pitch components are appropriate for the second printing operation.

If such components are unavoidable, the assembly process should be validated carefully, including stencil design, printing parameters, board support, placement accuracy, and inspection.

10. Temperature-Sensitive Components

Some components cannot tolerate repeated high-temperature exposure.

Because double-sided SMT may require two reflow cycles, designers should verify the component manufacturer’s maximum allowable reflow conditions.

Temperature-sensitive components may include certain:

• Connectors
• LEDs
• Sensors
• Plastic components
• Specialized modules
• Components containing internal solder connections

The component’s temperature rating, number of permitted reflow cycles, peak temperature, and thermal exposure time should be confirmed before final placement.

If a component cannot safely withstand multiple reflow cycles, an alternative assembly method may be required.

11. PIH and PIP Components

PIH/PIP components also require special consideration in double-sided SMT.

PIH refers to Pin-in-Hole technology, while PIP generally refers to Pin-in-Paste assembly.

These processes combine through-hole component connections with solder-paste printing and reflow.

If component leads extend too far beyond the PCB surface, they may interfere with the stencil or support system during the second-side printing process.

Potential problems include:

• PCB instability
• Incomplete stencil contact
• Uneven solder-paste deposition
• Board support interference
• Mechanical collision
• Abnormal solder joints

Therefore, lead length and component orientation should be considered during PCBA Design.

12. Components Containing Internal Solder

Some components may contain internal solder or soldered internal connections.

For example, certain connectors or LED-related components may contain soldered structures inside the component body.

These components should be evaluated carefully for multiple reflow exposure.

If the component specification does not allow the required number of thermal cycles, the assembly sequence should be modified.

This is particularly important for components that are sensitive to:

• Peak reflow temperature
• Thermal shock
• Repeated reflow cycles
• Long time above liquidus
• Internal solder remelting

13. Choosing the Appropriate Soldering Process

Modern PCB Assembly may use different soldering methods depending on the PCB design and component structure.

The major categories include:

Full-Board Soldering

Full-board soldering processes include:

• Reflow Soldering
• Wave soldering

Reflow soldering is primarily used for SMT components, while wave soldering is commonly associated with through-hole components and suitable mixed-technology assemblies.

Selective or Local Soldering

Localized soldering processes may include:

• Selective soldering
• Laser soldering
• Carrier-based wave soldering
• Manual or localized rework processes

The appropriate process depends on component type, PCB structure, thermal requirements, production volume, and manufacturing capability.

14. How Assembly Process Decisions Affect PCB Design

The assembly process should be considered at the beginning of the PCB design stage.

Component placement directly affects:

• Soldering sequence
• Reflow exposure
• Stencil printing
• Component accessibility
• Inspection
• Rework
• Thermal management

PCB routing can also indirectly affect assembly quality. For example, copper distribution, thermal pads, large copper areas, and component placement can influence thermal behavior and solder-joint formation.

Therefore, PCBA Design should not treat electrical layout and assembly manufacturing as completely separate activities.

Electrical performance, mechanical constraints, thermal behavior, and manufacturing requirements should be evaluated together.

15. Practical Double-Sided SMT Design Checklist

Before releasing a board for production, designers should review the following:

• Identify the first- and second-reflow sides.
• Place heavy components appropriately.
• Check BGA and LGA placement.
• Evaluate 0201 and fine-pitch component placement.
• Check PCB thickness and stiffness.
• Evaluate PCB Warpage risk.
• Verify component reflow temperature limits.
• Confirm the allowable number of reflow cycles.
• Check PIH/PIP lead lengths.
• Verify connector and component mechanical clearances.
• Review stencil and solder-paste requirements.
• Confirm board support requirements.
• Review AOI and X-ray inspection accessibility.
• Confirm the assembly sequence with the manufacturer.

16. Kingda’s Approach to PCB Assembly

At Kingda, PCB manufacturing and assembly considerations can be evaluated together during the engineering stage.

For double-sided SMT products, the manufacturing team can assess component placement, reflow sequence, PCB thickness, warpage risk, BGA/LGA requirements, solder-paste printing, and inspection requirements.

This early-stage engineering review helps identify potential assembly problems before mass production and supports a more stable PCB Assembly process.

For complex PCBA products, the goal is not simply to make the board electrically functional. The design must also be manufacturable, inspectable, reliable, and suitable for efficient mass production.

Conclusion

Successful double-sided SMT requires careful coordination between PCBA Design, component selection, PCB construction, solder-paste printing, placement, and Reflow Soldering.

Small and lightweight components can generally remain attached during the second reflow because the surface tension of molten solder provides sufficient holding force. Heavy components require more careful placement because their weight increases the risk of detachment.

BGA, LGA, 0201, fine-pitch, temperature-sensitive, and PIH/PIP components require additional evaluation. At the same time, controlling PCB Warpage is critical because board deformation can directly affect solder-paste printing and component placement accuracy.

By considering the complete assembly sequence during the design stage and working closely with a capable manufacturing partner such as Kingda, designers can improve assembly yield, reduce rework, and achieve more reliable PCBA products.
