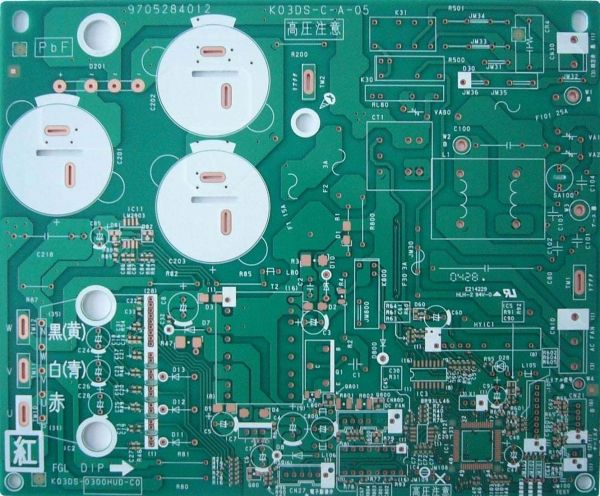

PCB Cleaning is an essential part of the PCB Manufacturing Process. During PCB fabrication, boards pass through multiple manufacturing stages that can leave behind dust, oxides, drilling residues, oil, fingerprints, metal particles, and other contaminants.
Proper cleaning is therefore critical for maintaining surface cleanliness, improving coating and plating adhesion, preventing electrical defects, and ensuring long-term PCB reliability.
Different manufacturing stages require different cleaning methods. Depending on the process, cleaning may involve water washing, chemical cleaning, brushing, high-pressure rinsing, micro-etching, or specialized surface treatment.
This article explains the major stages that require PCB Cleaning, their purposes, typical processes, and the key factors that manufacturers should control.
Why Is PCB Cleaning Important?
During PCB fabrication, contaminants can accumulate on the board surface and inside drilled holes. If these contaminants are not effectively removed, they may interfere with subsequent processes such as dry-film lamination, copper plating, solder mask application, surface finishing, and PCB assembly.
The main purposes of PCB Surface Cleaning include:
- Removing dust, oil, fingerprints, oxides, and machining residues.
- Improving copper surface cleanliness and uniformity.
- Increasing the bonding strength between copper and photoresist or solder mask.
- Improving plating adhesion and surface quality.
- Preventing open circuits, shorts, poor solderability, and coating defects.
- Reducing ionic contamination that could affect electrical reliability.
- Preparing the surface for subsequent PCB Surface Treatment processes.
For this reason, cleaning should be regarded as a controlled manufacturing process rather than simply a final washing operation.
PCB Cleaning Stages in the Manufacturing Process
A typical PCB manufacturing flow includes several stages where cleaning or surface preparation is required.
1. Panel Cutting
Large copper-clad laminates are cut into panels or production-size boards according to the required PCB dimensions.
After cutting, the panels may contain dust, particles, and residues from machining. These contaminants should be removed before subsequent processing.
2. Initial Board Surface Cleaning
The board surface is cleaned and dried to remove dust, particles, and other contaminants.
A clean surface is especially important before dry-film lamination because particles trapped between the copper surface and dry film can create defects in the circuit pattern.
3. Inner-Layer Dry-Film Processing
For multilayer PCB production, a layer of photoresist dry film is laminated onto the copper surface. The required circuit image is then transferred through exposure and development.
Before dry-film lamination, effective PCB Surface Cleaning helps ensure proper contact between the copper surface and dry film.
Insufficient cleaning may result in poor adhesion, incomplete imaging, or circuit defects after development and etching.
Chemical Cleaning of Copper Surfaces
Chemical cleaning is one of the most important forms of PCB Cleaning.
The main objectives are to remove oxides and contaminants from the copper surface while creating a suitable surface condition for subsequent processes.
A typical copper surface preparation sequence may include:
Degreasing → Water Rinsing → Micro-Etching → High-Pressure Rinsing → Water Rinsing → Water Removal → Air Drying → Hot-Air Drying
Main Functions of Chemical Cleaning
Chemical cleaning generally serves two purposes:
- Remove oxides, oil, particles, and other contaminants from the copper surface.
- Slightly roughen or activate the copper surface to improve adhesion with subsequent coatings or plating layers.
Micro-etching is particularly important because it can remove a controlled amount of copper and expose a fresh copper surface.
However, excessive micro-etching should be avoided because it may affect line dimensions and copper thickness.
Key Process-Control Factors
The effectiveness of chemical PCB Surface Cleaning depends on multiple parameters, including:
- Degreasing time and process speed
- Cleaner concentration
- Micro-etching temperature
- Acid concentration
- Cu²⁺ concentration
- Spray or water pressure
- Conveyor speed
- Rinsing efficiency
- Drying conditions
These parameters should be controlled according to the chemistry supplier’s specifications and the PCB manufacturer’s process requirements.
Common Cleaning-Related Defects
Poor cleaning can contribute to several PCB defects.
Open circuits:
Insufficient cleaning may reduce photoresist adhesion or cause contamination during imaging and etching, potentially resulting in incomplete or defective circuit patterns.
Short circuits:
Residual particles, unwanted copper residues, or process contamination may contribute to unwanted electrical connections between adjacent conductors.
Therefore, cleaning quality should be verified as part of overall process control rather than evaluated only by visual inspection.
Cleaning Before Through-Hole and Copper Plating
After drilling and circuit formation, PCB surfaces and hole walls require appropriate pretreatment before copper deposition and electroplating.
Cleaning and activation help remove:
- Oxides
- Organic contaminants
- Drilling residues
- Fine particles
- Surface contamination
A typical pretreatment sequence may include degreasing, water rinsing, micro-etching, acid cleaning, and other activation steps.
The exact process depends on the PCB construction, plating chemistry, and production requirements.
Degreasing
Degreasing removes oils, fingerprints, and organic contaminants from the copper surface.
A clean copper surface improves the consistency of subsequent plating and helps reduce adhesion-related defects.
Acid Cleaning
Acid cleaning removes oxides and other inorganic contaminants while activating the copper surface before plating.
Effective pretreatment is particularly important for achieving uniform copper deposition in both through-holes and surface circuit areas.
Cleaning Before PCB Surface Finishing
Different surface-finishing processes also require controlled cleaning and pretreatment.
PCB Gold Plating
Before gold plating or related nickel/gold finishing processes, the copper surface must be properly cleaned and activated.
The cleaning process removes oil, oxidation, and other contaminants so that the subsequent nickel and gold layers can form a reliable metallurgical interface.
Solder Mask Processing
Before applying solder mask, the copper surface needs suitable pretreatment.
The purpose is to:
- Remove surface oxides.
- Remove dust and organic contaminants.
- Improve surface activity.
- Provide an appropriate surface condition for solder mask adhesion.
Good PCB Surface Treatment is essential for preventing solder mask peeling, blistering, and other adhesion-related problems.
Hot Air Solder Leveling and Other Surface Finishes
For hot air solder leveling (HASL) and other solderable surface finishes, boards normally undergo cleaning and pretreatment before coating.
Cleaning removes surface contamination and improves the consistency of the finishing process.
Depending on the selected surface finish, additional steps such as micro-etching, activation, or acid treatment may be required.
Cleaning for ENIG and Other Surface Finishes
Electroless nickel immersion gold (ENIG) and other chemical surface finishes require a properly prepared copper surface.
Before nickel deposition, acidic degreasing and related pretreatment steps can remove light oil contamination and oxides while activating the copper.
The surface condition directly affects the uniformity and adhesion of the subsequent nickel and gold layers.
For this reason, Chemical Cleaning is an important part of the overall surface-finishing process.
Cleaning After Drilling
Drilling is another stage where thorough cleaning is particularly important.
Mechanical drilling can generate:
- Resin smear
- Glass-fiber particles
- Copper debris
- Dust
- Drilling residue
These contaminants can remain on the board surface and inside the drilled holes.
Before subsequent desmear and copper deposition processes, the holes and surrounding surfaces must be properly prepared.
Mechanical brushing, high-pressure water cleaning, chemical desmear, and other suitable processes may be used depending on the PCB structure and manufacturing technology.
The objective is to remove drilling residues and expose a clean, active surface for subsequent metallization.
Copper Surface Treatment Sequence
A typical Copper Surface Treatment schedule may occur at multiple points throughout PCB production.
Important stages can include:
- Before dry-film lamination.
- Before inner-layer oxidation or bonding treatment.
- After drilling and desmear.
- Before electroless copper deposition.
- Before electroplated copper.
- Before solder mask application.
- Before HASL or other surface finishes.
- Before nickel plating for gold-finger processing.
Each stage has a different process objective, but the fundamental requirement is the same: maintain a clean, stable, and properly conditioned copper surface.
Secondary Copper Pretreatment
For outer-layer copper plating, a representative pretreatment sequence may be:
Degreasing → Water Rinsing → Micro-Etching → Water Rinsing → Acid Cleaning → Copper Plating → Water Rinsing
The purpose is to remove contaminants introduced during previous outer-layer processing, including:
- Copper oxides
- Fingerprints
- Dust
- Organic residues
- Fine particles
At the same time, the copper surface is activated to promote good adhesion and uniformity during the subsequent copper-plating process.
Process parameters such as cleaner concentration, micro-etch rate, temperature, acid concentration, spray pressure, and conveyor speed should be carefully controlled.
Final Cleaning Before PCB Shipment
Cleaning should not end when PCB fabrication is completed.
Before shipment, manufacturers should perform appropriate final cleaning and inspection to remove remaining particles and reduce ionic contamination.
Ionic residues can be particularly important because they may contribute to electrochemical migration, leakage current, or insulation-resistance problems under certain temperature and humidity conditions.
Depending on the PCB application and customer requirements, manufacturers may use ionic contamination testing or other cleanliness verification methods.
How Kingda Controls PCB Cleaning
At Kingda, cleaning is treated as an integrated part of the PCB Manufacturing Process rather than an isolated production step.
For different PCB structures and manufacturing technologies, the cleaning and surface-preparation process can be adjusted according to:
- PCB material
- Copper thickness
- Circuit density
- Hole structure
- Surface finish
- Solder mask requirements
- Plating process
- Product reliability requirements
Process parameters such as chemical concentration, temperature, spray pressure, conveyor speed, rinsing quality, and drying conditions require continuous control.
Combining PCB Cleaning, Copper Surface Treatment, plating preparation, and final cleanliness inspection helps maintain consistent PCB quality throughout production.
Conclusion
PCB Cleaning is required at multiple stages of PCB fabrication, including panel preparation, dry-film processing, drilling, copper plating, solder mask application, surface finishing, and final inspection.
Effective cleaning removes contaminants, improves copper surface condition, enhances coating and plating adhesion, and helps prevent electrical and reliability defects.
A reliable PCB Cleaning Process should therefore be designed according to the specific PCB structure and manufacturing requirements. Proper chemical control, rinsing, drying, surface activation, and cleanliness verification are all important parts of professional PCB Surface Treatment.
For complex multilayer, high-density, HDI, and other advanced PCB products, close coordination between PCB design, manufacturing processes, chemical treatment, and quality control is essential to achieve stable production and reliable finished boards.
