Gerber File Checklist: 10 Common Errors and How to Fix Them

A Gerber File is one of the most important data formats used to communicate PCB fabrication information from the design stage to the manufacturer.

Although modern PCB production workflows may also use formats such as ODB++ or IPC-2581, Gerber remains widely used for transferring individual PCB image layers, while separate drill and manufacturing information may accompany the fabrication package.

An error in the manufacturing data can result in anything from an engineering clarification to a completely unusable circuit board.

Common problems include missing layers, incorrect drill locations, incomplete board outlines, incorrect solder-mask openings, unreadable silkscreen, and insufficient manufacturing information.

Performing a thorough Gerber File Check before submitting files to a PCB manufacturer can help reduce:

Engineering clarification cycles
Manufacturing delays
Additional fabrication costs
Incorrect board dimensions
Assembly problems
PCB redesigns
Production scrap

Below are 10 common issues worth checking before releasing your PCB files for fabrication.

1. Missing or Unclear Gerber Layers

Common Problem

A PCB fabrication package may be missing important data, or the files may have unclear names that make it difficult for the manufacturer to identify their functions.

Typical fabrication data may include:

Top copper
Bottom copper
Inner copper layers for multilayer boards
Top solder mask
Bottom solder mask
Top silkscreen
Bottom silkscreen
Board outline
Drill data
Additional fabrication drawings when required

For example, names such as LayerA, Top1, or File01 may create unnecessary ambiguity.

How to Fix It

Before submitting the files:

Confirm that every required layer is included.
Use clear and consistent file names.
Make sure the layer sequence is unambiguous.
Include a fabrication drawing or stack-up documentation when necessary.
Confirm that the number of copper layers matches the PCB specification.

A clear naming convention makes engineering review much easier and reduces the possibility of manufacturing the wrong layer configuration.

2. Drill Data Does Not Align With Copper Layers

Common Problem

Drill locations must correspond correctly with pads, vias, mounting holes, and other features on the PCB.

Misalignment can result from incorrect coordinate data, changes made during PCB layout, or incorrect export settings.

Potential consequences include:

Drill holes missing their pads
Vias not connecting correctly
Mounting holes in the wrong locations
Problems during component assembly

How to Fix It

Open the Gerber and drill files in a reliable viewer and overlay the drill data with the copper layers.

Pay particular attention to:

Via locations
Through-hole component pads
Mounting holes
NPTH locations
Slot locations
Mechanical holes

Also verify that the units and coordinate settings are consistent.

A mismatch between metric and imperial units can produce significant positioning errors, so the exported data should always be checked before release.

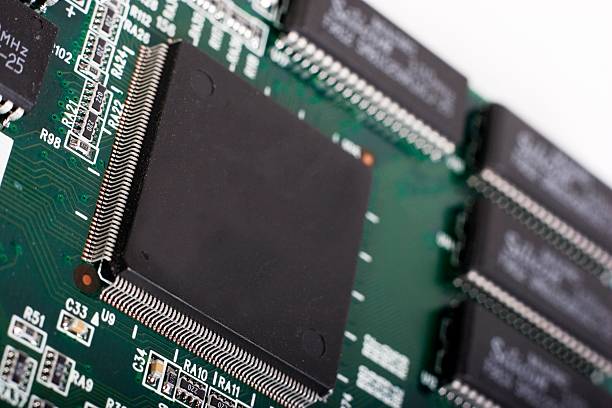

3. Silkscreen Overlaps or Extends Beyond the Board Edge

Common Problem

Silkscreen identifies components, polarity, test points, connectors, and other useful information.

However, poorly positioned silkscreen can overlap pads or other important features, or extend beyond the board outline and be clipped during fabrication.

Typical examples include:

Reference designators overlapping component pads
Text placed over fine-pitch components
Logos extending beyond the board edge
Polarity markings becoming difficult to read

How to Fix It

Review the silkscreen layer together with the board outline and copper layers.

Move or resize text where necessary and make sure critical markings remain readable.

Rather than relying on a universal clearance number, follow the PCB manufacturer’s minimum silkscreen feature and clearance requirements, because acceptable dimensions vary with manufacturing capability.

For dense PCB designs, it is often better to prioritize essential reference designators and polarity indicators over decorative text.

4. Solder Mask Openings Do Not Match the Pads

Common Problem

The solder mask layer determines which copper areas are exposed for soldering.

If the solder mask opening is incorrectly sized or positioned, it may affect solderability and assembly quality.

Potential issues include:

Part of a required pad being covered
Excessive solder-mask clearance
Unintended exposed copper
Missing openings on required pads
Incorrect openings around vias

How to Fix It

Overlay the solder mask and copper layers in a Gerber viewer.

Check:

Pad-to-opening alignment
Solder-mask expansion
Via tenting requirements
Fine-pitch component pads
Exposed thermal pads

Importantly, solder-mask expansion is not a universal 0.1–0.2 mm value. The appropriate expansion depends on the PCB manufacturer’s process capability, pad geometry, material, and design requirements.

If the project has tight-pitch components, confirm the manufacturer’s solder-mask design rules before finalizing the files.

5. The Board Outline Is Incomplete or Incorrect

Common Problem

The board outline defines the physical shape of the PCB.

An incomplete or ambiguous outline can cause problems during routing, CNC machining, V-scoring, or other board separation processes.

Common problems include:

Open outline segments
Duplicate lines
Multiple overlapping outlines
Incorrect dimensions
Incorrect slots or cutouts
Conflicting mechanical drawings

How to Fix It

Review the board outline independently and verify that the intended finished-board profile is clearly defined.

For routed boards:

Make sure the contour is properly defined.
Check for unintended duplicate geometry.
Confirm internal cutouts and slots.
Verify critical dimensions.

For V-scored panels, the manufacturing drawing should clearly communicate the intended scoring lines and panelization requirements.

The exact data requirements depend on the fabrication method used by the manufacturer.

6. Gerber Format or Export Settings Are Incorrect

Common Problem

Gerber files can be generated using different formats and export configurations.

Older workflows may use RS-274-D, while modern Gerber workflows commonly use RS-274X or newer Gerber X2 features.

Problems can occur when:

Aperture information is missing
Units are incorrect
Coordinate formats are inconsistent
Layer attributes are missing
Export settings are incompatible with the manufacturing workflow

How to Fix It

When possible, use a current Gerber export format supported by your PCB manufacturer.

After exporting:

Open the files in an independent Gerber viewer.
Confirm the correct dimensions.
Check every layer.
Verify the coordinate origin.
Confirm units.
Compare the output with the original PCB layout.

Do not assume that successful file export means the manufacturing data is correct. Independent visual verification is an important final step.

7. Unwanted Copper Geometry Remains in the Design

Common Problem

Unintended copper objects can sometimes remain in exported PCB data.

Examples include:

Duplicate tracks
Unconnected copper
Unwanted copper islands
Accidental graphic objects
Old routing segments
Incorrect copper pours

These objects may create electrical or manufacturing problems if they are not intentional.

How to Fix It

Review every copper layer and compare the exported Gerber with the original PCB layout.

Look for:

Unexpected isolated copper
Incorrect trace connections
Unwanted copper near high-voltage areas
Copper features that do not appear in the schematic or layout
Unintended changes after the final design revision

Do not automatically remove every isolated copper area. Some isolated copper may be intentionally included for thermal, mechanical, shielding, or other design reasons.

The goal is to identify unintentional geometry rather than simply eliminate every isolated feature.

8. Drill Information Is Incomplete or Ambiguous

Common Problem

Drill data and drill drawings should clearly communicate the required hole types and sizes.

Confusion can occur when the drill table, drill files, and fabrication drawings use inconsistent definitions.

This is particularly important for designs containing:

Plated through holes
Non-plated through holes
Slots
Mounting holes
Different finished hole sizes

How to Fix It

Compare the drill files with the drill table and PCB design.

Confirm:

Hole diameter
Hole quantity
Plated or non-plated status
Slot dimensions
Finished-hole requirements
Hole locations

Do not rely solely on symbols such as circles or squares to communicate hole types. Use clear drill tables and fabrication notes where necessary.

For complex boards, providing a separate fabrication drawing can make the requirements much easier for the manufacturer to interpret.

9. Bottom Silkscreen Is Mirrored Incorrectly

Common Problem

Bottom-side silkscreen often requires mirrored artwork because it is viewed from the opposite side of the board.

Incorrect mirroring can cause:

Reversed reference designators
Incorrect polarity markings
Unreadable labels
Confusion during assembly or inspection

How to Fix It

Review the bottom silkscreen from the perspective of the actual bottom side of the finished PCB.

Check:

Component reference designators
Polarity markings
Connector labels
Pin-1 indicators
Logos and other important markings

The correct treatment depends on the PCB CAD export workflow and the manufacturer’s data interpretation. Therefore, do not simply apply mirroring twice or assume that every bottom layer should be manually mirrored before export.

The safest approach is to verify the final Gerber output in a viewer and compare it with the intended physical board orientation.

10. Important Manufacturing Information Is Missing

Common Problem

Gerber files primarily describe graphical PCB fabrication data. They do not necessarily contain every manufacturing requirement.

Important information may be missing if the customer provides only the Gerber layers and no fabrication drawing or manufacturing specification.

Depending on the project, manufacturers may also need information such as:

Number of layers
Board thickness
Material
Copper thickness
Surface finish
Solder mask color
Silkscreen color
Controlled impedance requirements
Finished dimensions and tolerances
Special via requirements
Edge plating
Castellated holes
Electrical testing requirements
Panelization instructions

How to Fix It

Prepare a complete fabrication package rather than relying on Gerber files alone.

A typical package may contain:

Gerber Files + NC Drill Files + Fabrication Drawing + Stack-Up Information + Special Requirements

For complex PCB projects, a detailed manufacturing drawing can significantly reduce engineering clarification and help ensure that the finished board matches the design intent.

A Practical Gerber File Check Before PCB Fabrication

Before submitting your files for PCB Fabrication, use the following checklist:

Item	What to Check
Copper layers	Correct number, layer order, and connectivity
Solder mask	Correct openings and clearances
Silkscreen	Readability and board-edge clearance
Drill data	Hole sizes, locations, and plating requirements
Board outline	Correct shape, dimensions, slots, and cutouts
Units	Metric or imperial settings are consistent
Layer naming	Clear and unambiguous
Surface finish	Correct specification in manufacturing documentation
Stack-up	Matches the required layer structure
Impedance	Requirements clearly documented where applicable
Special features	HDI, blind/buried vias, edge plating, etc.
Revision	All files belong to the same design revision

How to Perform a Better Gerber File Check

A good Gerber File Check should not consist of simply opening one file and confirming that the board “looks right.”

A more reliable workflow is:

Step 1: Confirm the Design Revision

Make sure the Gerber files, drill files, drawings, and BOM-related documentation all correspond to the same PCB revision.

Step 2: Verify the Layer Count

Compare the exported copper layers with the intended PCB stack-up.

Step 3: Inspect Each Layer

Review copper, solder mask, silkscreen, and board outline separately.

Step 4: Overlay Related Layers

Check relationships between:

Copper and drill
Copper and solder mask
Silkscreen and board outline
Mechanical drawings and board outline

Step 5: Verify Critical Dimensions

Check overall board dimensions, hole locations, slots, connector positions, and other mechanically important features.

Step 6: Review Manufacturing Requirements

Make sure material, thickness, copper weight, surface finish, impedance requirements, and special processes are clearly documented.

Step 7: Submit the Complete Manufacturing Package

Before production, provide the manufacturer with the final verified files and clearly identify the current revision.

Why Gerber Verification Should Be Part of PCB Design

A PCB design is not finished simply because the schematic and layout pass electrical checks.

The manufacturing output must also accurately represent the intended design.

For this reason, PCB Design and manufacturing preparation should be treated as connected stages of the same engineering process.

Design teams can reduce manufacturing problems by considering manufacturability from the beginning, including:

Appropriate trace width and spacing
Suitable via sizes
Realistic manufacturing tolerances
Correct component footprints
Proper board-edge clearances
Appropriate solder-mask design
Suitable copper distribution
Manufacturing-compatible stack-up

Professional PCB Design Layout practices can help identify potential production issues before Gerber generation.

From Gerber Review to PCB Manufacturing

Once the design data has been verified, the next step is fabrication.

A capable manufacturer should review the submitted data and identify potential issues before production begins.

This engineering review can be particularly valuable for:

Multilayer PCBs
High-density designs
Controlled-impedance boards
High-current applications
Fine-pitch components
Flexible and rigid-flex designs
Complex mechanical structures

Gopcba provides PCB Manufacturing services designed to support different PCB specifications and application requirements.

For customers who also need assembly, PCB fabrication can be coordinated with Prototype PCB Assembly or low-volume production, helping reduce communication gaps between board fabrication and assembly.

Conclusion

A well-prepared Gerber File can make the transition from PCB design to manufacturing much smoother.

Before releasing a PCB project, engineers should check at least these 10 areas:

Missing or unclear layers
Drill-to-copper alignment
Silkscreen positioning
Solder-mask openings
Board outline
Gerber format and export settings
Unintended copper geometry
Drill information
Bottom-side silkscreen orientation
Missing manufacturing specifications

A complete Gerber File Check does more than identify obvious visual errors. It also verifies that the manufacturing data, mechanical requirements, electrical specifications, and production documentation are consistent with the intended PCB design.

By carefully validating the files before fabrication and communicating special requirements clearly, electronics companies can reduce manufacturing risks, avoid unnecessary revisions, and improve overall project efficiency.

For international electronics manufacturers, combining careful PCB design preparation with a reliable PCB Manufacturing partner provides a stronger foundation for moving from engineering validation to production.
