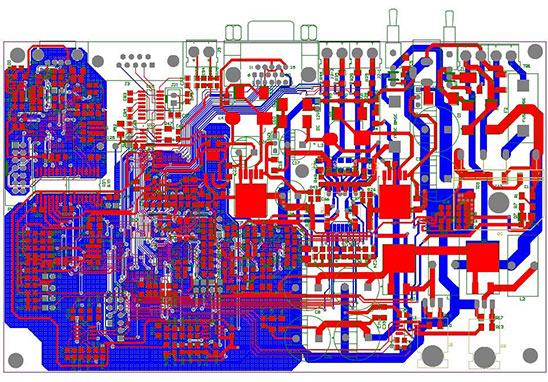

In modern PCB Design, signal integrity becomes increasingly important as interfaces operate at higher data rates and devices use faster signal edges. When a PCB trace behaves as a transmission line, impedance discontinuities can cause reflections, ringing, overshoot, undershoot, and timing uncertainty.
One of the techniques used to control these effects is PCB Impedance Matching.
Impedance matching is not simply a matter of adding a resistor to a PCB. The appropriate termination method depends on the signal source, transmission-line impedance, receiver characteristics, topology, signal edge rate, trace length, and timing requirements.
This article introduces the basic principles of PCB Impedance Matching, explains series and parallel termination, and discusses practical applications of the Zero-Ohm Resistor in PCB design and debugging.
What Is PCB Impedance Matching?
PCB Impedance Matching refers to controlling the impedance relationship between a signal source, transmission line, and load to reduce unwanted reflections and maintain reliable signal transmission.
When a signal travels along a PCB trace that behaves as a transmission line, any significant impedance discontinuity can cause part of the signal energy to be reflected.
The basic reflection coefficient at a load can be expressed as:
Γ = (ZL − Z0) / (ZL + Z0)
where:
- Γ is the voltage reflection coefficient;
- ZL is the load impedance;
- Z0 is the characteristic impedance of the transmission line.
When the load impedance is equal to the transmission-line impedance, the idealized reflection coefficient approaches zero.
However, practical PCB systems are more complicated. The impedance of a PCB trace is affected by:
- Trace width
- Copper thickness
- Dielectric thickness
- Dielectric constant
- Reference-plane configuration
- Solder mask
- Via structures
- Connectors
- Package parasitics
- PCB stackup
Therefore, impedance control begins with the PCB stackup and routing structure rather than the termination resistor alone.
When Does PCB Impedance Matching Matter?
Not every PCB trace requires explicit termination.
The need for termination depends largely on the relationship between signal rise/fall time and the electrical length of the interconnect.
A signal with a very fast edge can behave as a high-speed transmission-line signal even when its nominal clock frequency is relatively low.
As a practical engineering approach, designers should evaluate:
- Signal rise and fall time
- Trace length
- Propagation delay
- Characteristic impedance
- Driver output impedance
- Receiver input impedance
- Routing topology
- Timing margin
- Crosstalk
- Power integrity
Therefore, a fixed rule such as “signals above a certain frequency always require a matching resistor” is too simplistic.
Series Termination
Series Termination is one of the most common methods for controlling reflections on digital PCB traces.
A series resistor is placed close to the signal source, typically between the driver and the PCB transmission line.
The effective source impedance becomes approximately:
Zsource + Rseries ≈ Z0
when the design is appropriately optimized.
The objective is to make the source-side impedance closer to the characteristic impedance of the transmission line.
How Series Termination Works
When a driver launches a signal into a transmission line, a source impedance that is significantly lower than the line impedance can create a mismatch.
Adding a properly selected series resistor increases the effective source impedance.
When the signal reaches the receiving end, the receiver may present a relatively high impedance. The signal therefore experiences a reflection at the load, but the source-side termination can absorb the returning energy when it reaches the source.
This can significantly reduce repeated reflections and ringing.
Advantages of Series Termination
Properly implemented Series Termination can:
- Reduce ringing
- Reduce overshoot and undershoot
- Improve waveform quality
- Reduce unnecessary high-frequency energy
- Reduce EMI in some designs
- Improve signal integrity
- Provide a relatively simple termination solution
Another important effect is that the resistor and the input capacitance of the receiver form a low-pass characteristic. This can slow the signal edge to some extent.
That can be beneficial when the original edge is unnecessarily fast, but excessive resistance can also increase propagation-related timing delay and reduce timing margin.
Therefore, resistor selection must balance signal quality and timing requirements.
How to Select a Series Termination Resistor
There is no universal resistor value that works for every PCB.
Common resistor values may range from a few ohms to several tens of ohms, but the correct value depends on the actual system.
A simplified starting point can be obtained from:
Rseries ≈ Z0 − Zdriver
where:
- Z0 is the PCB transmission-line impedance;
- Zdriver is the driver’s effective output impedance.
The final value should be verified using the actual driver model, receiver model, PCB stackup, trace geometry, and signal timing.
For critical High-Speed PCB Design, simulation and oscilloscope measurements can provide much better results than selecting a resistor solely from a generic rule.
Parallel Termination
Parallel Termination places a resistor, or resistor network, at or near the receiving end of a transmission line.
The resistor provides a defined load impedance for the signal.
For example, if a transmission line has a characteristic impedance of approximately 50 Ω, a properly selected 50 Ω parallel termination can provide a close impedance match at the receiving end.
For differential interfaces, the termination value is determined by the differential impedance and interface specification. A common example is a 100 Ω differential termination for a 100 Ω differential transmission line, but the exact requirement should always follow the relevant interface specification.
Advantages of Parallel Termination
Parallel Termination can provide strong reflection control because the receiving end presents a defined impedance to the transmission line.
It is commonly considered in:
- High-speed interfaces
- Long PCB traces
- Backplane connections
- Cable interfaces
- Transmission-line networks
- Some clock distribution structures
However, a major disadvantage is DC power consumption.
If a termination resistor continuously connects the signal to a supply rail or ground, current may flow whenever the signal is at a corresponding logic level.
Therefore, parallel termination may consume substantially more power than series termination.
Series vs. Parallel Termination
The choice between Series Termination and Parallel Termination depends on the electrical architecture.
| Feature | Series Termination | Parallel Termination |
|---|---|---|
| Typical location | Near signal source | Near receiver/load |
| Main purpose | Control source-side reflections | Match the load |
| DC power consumption | Usually low | Can be significant |
| Effect on edge rate | Can slow the edge | Usually less source-edge shaping |
| Common application | Point-to-point digital signals | High-speed transmission lines and buses |
| Component placement | Close to driver | Close to receiver |
| Design priority | Source impedance | Load impedance |
Neither method is universally better.
The correct termination depends on topology, driver/receiver characteristics, timing, power constraints, and interface requirements.
PCB Trace Length and Transmission-Line Effects
A PCB trace does not need to be extremely long before transmission-line behavior becomes relevant.
The critical factor is the relationship between propagation delay and signal edge time.
For example, assume a signal has a rise time of 100 ps. If the PCB trace introduces a substantial fraction of that time as propagation delay, the trace should be analyzed as a transmission line.
This means that a signal with a relatively low repetition frequency can still require careful Controlled Impedance and termination if its edges are sufficiently fast.
This is why modern High-Speed PCB Design focuses on edge rate and electrical length rather than frequency alone.
Controlled Impedance and PCB Stackup
Termination cannot compensate for every problem caused by poor PCB geometry.
Before selecting a termination resistor, the designer should establish the intended transmission-line impedance.
For example, a controlled-impedance PCB may use:
- Microstrip structures
- Stripline structures
- Differential microstrip
- Differential stripline
The resulting impedance depends on the complete stackup.
Important parameters include:
- Trace width
- Trace spacing
- Dielectric thickness
- Copper thickness
- Dielectric constant
- Reference-plane location
- Solder-mask effects
- Manufacturing tolerances
Therefore, Controlled Impedance should be treated as a combination of electrical design and manufacturing control.
Zero-Ohm Resistor in PCB Design
The Zero-Ohm Resistor is one of the simplest and most useful components in practical PCB development.
Although its nominal resistance is approximately zero, a real zero-ohm resistor still has finite parasitic resistance, inductance, and capacitance.
Its primary purpose is not to provide a meaningful resistance value, but to offer a configurable connection point.
1. Zero-Ohm Resistor as a Jumper
The most common application is to use a Zero-Ohm Resistor as a PCB jumper.
Compared with manually soldering a wire across two pads, a zero-ohm resistor provides:
- Better assembly consistency
- Cleaner PCB appearance
- Easier automated assembly
- Easier replacement
- More controlled manufacturing
This is especially useful when a PCB needs optional connections.
2. Configuration Options
A zero-ohm resistor can be used to configure different circuit options.
For example, a PCB may support two operating modes:
- Configuration A
- Configuration B
The designer can place a zero-ohm resistor at a designated location and populate or remove it according to the required configuration.
This approach is often more practical than redesigning the PCB.
3. Debugging and Parameter Evaluation
During prototype development, engineers may not yet know the optimal value of a component.
A zero-ohm resistor can temporarily bridge a circuit path while leaving an accessible location for future modification.
During debugging, the resistor can later be replaced with:
- A specific resistor value
- A ferrite bead
- An inductor
- Another filtering component
This makes the PCB more flexible during development.
4. Current Measurement
A zero-ohm resistor can also provide a convenient current-measurement location.
During debugging, the component can be removed and replaced temporarily with an ammeter or another measurement method.
However, engineers should consider the measurement instrument’s burden voltage and the circuit’s normal operating conditions.
For precision current measurement, a properly specified shunt resistor is generally preferable.
5. PCB Routing and Layout Flexibility
Sometimes a PCB layout requires an alternative routing path or configurable connection.
A zero-ohm resistor can act as a physical bridge between two nodes without requiring a complicated PCB modification.
This is particularly useful for prototypes and configurable products.
6. High-Frequency Applications
A Zero-Ohm Resistor is not an ideal zero-impedance component at high frequency.
Its package and structure introduce parasitic inductance and capacitance.
Therefore, at sufficiently high frequencies, a zero-ohm resistor can exhibit measurable impedance.
However, it should not automatically be described as a deliberate inductor or capacitor.
If an RF circuit requires a specific inductance or capacitance, a properly characterized RF component should be selected instead.
7. Ground Configuration
Zero-ohm resistors are sometimes used to connect different ground or power domains at a controlled location.
For example, a development board may provide a configurable connection between two circuit sections.
However, the statement that analog ground and digital ground must always be connected at exactly one point is not universally correct.
The appropriate grounding strategy depends on:
- Current return paths
- Signal frequency
- Circuit architecture
- ADC/DAC interfaces
- Power distribution
- EMI requirements
- PCB stackup
The goal is to control return-current paths and prevent unwanted coupling, rather than simply dividing or connecting grounds according to a universal rule.
Zero-Ohm Resistor vs. Ferrite Bead
A Zero-Ohm Resistor and a ferrite bead may look similar on a PCB, but their electrical functions are different.
A zero-ohm resistor is primarily used as a low-resistance configurable connection.
A ferrite bead is designed to provide frequency-dependent impedance and is commonly used for noise suppression.
The impedance of a ferrite bead varies with frequency and operating conditions.
Therefore:
Zero-ohm resistor → configurable connection
Ferrite bead → frequency-dependent noise suppression
A ferrite bead should not simply be regarded as a “better zero-ohm resistor.”
Its effectiveness depends on the source impedance, load impedance, noise spectrum, DC current, bead characteristics, and PCB placement.
Zero-Ohm Resistor vs. Inductor
At high frequencies, a real zero-ohm resistor can exhibit parasitic inductance.
However, this does not mean that it is equivalent to an intentional inductor.
An inductor is designed and characterized for a specific inductance and frequency range, while the parasitic inductance of a zero-ohm resistor is an unwanted side effect of its package and construction.
For PCB Design, this distinction is important because high-frequency circuits require predictable component behavior.
Common Mistakes in PCB Impedance Matching
Several common assumptions can lead to poor design decisions.
Mistake 1: Adding a resistor to every high-speed signal
Not every fast signal requires external termination.
The requirement should be evaluated according to electrical length, edge rate, topology, driver characteristics, and timing margin.
Mistake 2: Using a fixed resistor value everywhere
A resistor value such as 22 Ω, 33 Ω, or 50 Ω may be appropriate in one design but unsuitable in another.
The actual value should be determined from the system characteristics and verified through simulation or measurement.
Mistake 3: Ignoring PCB stackup
Termination cannot fix a fundamentally unsuitable transmission-line structure.
The PCB stackup must first provide the intended impedance and stable reference plane.
Mistake 4: Routing critical signals across reference-plane gaps
A signal crossing a split or void in its reference plane may experience an altered return-current path and significant impedance discontinuity.
This can increase EMI and degrade Signal Integrity.
Mistake 5: Placing termination components too far from the source or load
Termination effectiveness depends strongly on placement.
A series resistor is generally placed close to the driver, while a parallel termination is generally placed close to the receiving end.
The exact placement should follow the topology and simulation results.
PCB Impedance Matching Design Workflow
A systematic design process can make impedance matching much more effective.
Step 1: Identify Critical Interfaces
Determine which interfaces are sensitive to reflections, ringing, timing skew, or signal-integrity problems.
Step 2: Determine the Electrical Length
Evaluate trace length relative to signal rise/fall time.
Step 3: Define the PCB Stackup
Establish the required transmission-line structure and target impedance.
Step 4: Select a Termination Topology
Consider:
- Series termination
- Parallel termination
- AC termination
- Thevenin termination
- Differential termination
- Source termination
The appropriate topology depends on the interface.
Step 5: Simulate the Signal
For demanding High-Speed PCB Design, pre-layout and post-layout simulation can help evaluate:
- Overshoot
- Undershoot
- Ringing
- Settling time
- Eye opening
- Timing margin
- Crosstalk
Step 6: Verify the Prototype
Use an oscilloscope and appropriate probing techniques to compare the actual waveform with the simulated result.
Step 7: Optimize the PCB Layout
If necessary, adjust:
- Trace geometry
- Termination value
- Component placement
- Via structure
- Reference-plane configuration
- Routing topology
This iterative process is more reliable than applying generic resistor values.
PCB Impedance Matching and EMI
Correct PCB Impedance Matching can also contribute to better electromagnetic compatibility.
Reflections and ringing can increase high-frequency current components and create unwanted electromagnetic energy.
By controlling impedance discontinuities and reducing excessive ringing, the designer may reduce unnecessary high-frequency radiation.
However, impedance matching is only one part of an overall EMI strategy.
Effective EMI control also requires attention to:
- Return-current paths
- Grounding
- Power integrity
- Decoupling
- Layer stackup
- Signal spacing
- Shielding
- Cable interfaces
- Common-mode currents
Therefore, impedance matching should be integrated into the overall PCB Design process rather than treated as an isolated technique.
Kingda’s Approach to PCB Impedance Control
Reliable high-speed PCB performance requires coordination between circuit design, PCB layout, stackup engineering, and manufacturing.
Kingda can support projects involving PCB Impedance Matching, Controlled Impedance, high-speed routing, and prototype-to-production development.
By considering PCB materials, stackup configuration, trace geometry, manufacturing tolerances, and assembly requirements together, engineers can create a more predictable electrical environment for high-speed interfaces.
Conclusion
PCB Impedance Matching is an important technique for maintaining reliable signal transmission when PCB traces behave as transmission lines.
Series Termination is commonly used to control source-side reflections with relatively low DC power consumption, while Parallel Termination provides a defined load impedance but may introduce additional power consumption.
At the same time, the Zero-Ohm Resistor is a valuable PCB development component for configurable connections, jumpers, debugging, and design flexibility. Its high-frequency parasitic behavior should be recognized, but it should not be treated as a substitute for a dedicated inductor or ferrite bead.
The most effective approach is to evaluate signal edge rate, electrical length, transmission-line impedance, topology, timing requirements, and manufacturing capability together.
In professional High-Speed PCB Design, impedance matching is not simply about choosing a resistor. It is about designing the complete signal path so that the PCB, components, and interconnects work together to maintain Signal Integrity.
