When learning High-Speed PCB Design, one of the most important concepts engineers need to understand is the Transmission Line. In low-speed circuits, PCB traces can often be treated as simple conductive paths. However, as digital signals become faster and their edge rates become shorter, the electrical behavior of the PCB trace becomes increasingly important.

A high-speed signal does not travel through a PCB trace instantaneously. During signal propagation, the trace, dielectric material, reference plane, and return-current path together form an electromagnetic transmission structure. If the impedance of this structure is not properly controlled, signal reflections and distortion may occur.

When the impedance of a PCB trace does not match the impedance of the source, transmission line, or receiving device, part of the signal energy is reflected toward the source. These reflections can result in ringing, overshoot, undershoot, waveform distortion, timing errors, and increased electromagnetic interference.

Therefore, understanding Transmission Line behavior is a fundamental part of achieving reliable High-Speed PCB Design and maintaining good Signal Integrity.

What Is a Transmission Line?

A Transmission Line is a structure that provides both a signal path and a return-current path. In practical PCB applications, the signal trace and its associated reference plane work together to form the transmission-line structure.

Unlike an ideal wire, a transmission line has distributed resistance, inductance, capacitance, and conductance along its length. These distributed parameters determine how a signal propagates through the PCB.

In a typical multilayer PCB, a transmission line may consist of a copper trace located above, below, or between one or more reference planes. The reference plane provides a low-impedance return path for high-frequency current.

Several important characteristics should be considered when analyzing a transmission line:

• Characteristic Impedance
• Propagation Delay
• Signal attenuation
• Reflection behavior
• Return-current path
• Coupling and crosstalk

Among these parameters, Characteristic Impedance and Propagation Delay are particularly important for high-speed digital interfaces.

Why PCB Traces Become Transmission Lines

Whether a PCB trace needs to be treated as a transmission line depends more on the signal’s edge rate and electrical length than simply on its clock frequency.

A signal with a very fast rise time contains significant high-frequency components. Even if its fundamental clock frequency is relatively low, the fast transition can cause transmission-line effects on sufficiently long PCB traces.

For example, a clock signal, memory interface, USB signal, PCIe signal, or other high-speed digital interface may experience reflections if the PCB trace length becomes electrically significant compared with the signal transition time.

This means that engineers should not evaluate a PCB only according to its nominal operating frequency. The rise time, fall time, trace length, dielectric properties, and impedance discontinuities should also be considered.

Transmission Line Impedance

Characteristic Impedance is one of the most important parameters in High-Speed PCB Design.

It represents the impedance experienced by a traveling wave along a uniform transmission line. When the physical structure of the transmission line remains consistent, its characteristic impedance remains relatively stable.

The characteristic impedance of a PCB trace is influenced by several factors:

• Trace width
• Copper thickness
• Dielectric thickness
• Dielectric constant
• Distance to the reference plane
• Solder mask
• PCB stack-up
• Microstrip or stripline structure

For this reason, impedance control cannot be achieved simply by selecting a standard trace width. The complete PCB stack-up and material parameters must be considered.

For controlled-impedance applications, PCB manufacturers such as Kingda need to coordinate the required impedance value with the actual material construction and manufacturing tolerances.

Impedance Matching and Signal Reflection

When a signal travels from one transmission-line section to another with a different impedance, part of the signal energy may be reflected.

This can happen at various locations, including:

• Connector interfaces
• Via transitions
• Trace-width changes
• Layer transitions
• Branches and stubs
• Improper terminations
• Component pads
• Changes in dielectric structure

These impedance discontinuities can significantly affect Signal Integrity, particularly in systems with very fast edge rates.

Proper impedance matching and careful routing can reduce the amplitude of reflections and help maintain a cleaner signal waveform at the receiver.

Propagation Delay in PCB Transmission Lines

Propagation Delay is the time required for a signal to travel from one point to another through a transmission medium.

In a PCB, propagation delay depends primarily on the physical length of the trace and the electromagnetic properties of the surrounding dielectric material.

Although the delay of an individual PCB trace may appear very small, it becomes important when multiple signals must arrive at a receiver within a specific timing window.

This is particularly relevant to:

• High-speed memory interfaces
• Differential interfaces
• Clock distribution
• Parallel data buses
• High-speed converters
• FPGA and processor interfaces

When traces carrying related signals have significantly different lengths, their propagation delays can also differ. This may create skew and reduce the timing margin of the system.

Therefore, trace-length matching and timing analysis are often necessary in advanced High-Speed PCB Design.

PCB Transmission Line Structures

A typical PCB transmission line consists of a copper conductor and a reference plane separated by dielectric material.

The most common controlled-impedance structures used in multilayer PCB design are Microstrip and Stripline.

Microstrip

A Microstrip is generally formed by routing a signal trace on an outer PCB layer above a reference plane.

The electromagnetic field of the signal is distributed partly through the dielectric material and partly through the surrounding environment. Therefore, the solder mask and external PCB environment can also influence its electrical characteristics.

Microstrip structures are widely used because they are relatively easy to manufacture, inspect, and route.

However, because the signal is located on the outer layer, microstrip traces may be more exposed to external electromagnetic interference and may have greater coupling with neighboring structures.

For controlled-impedance microstrip routing, engineers should carefully define:

• Trace width
• Copper thickness
• Dielectric thickness
• Reference-plane distance
• Dielectric constant
• Solder-mask thickness

These parameters collectively determine the final impedance.

Stripline

A Stripline is an inner-layer transmission line positioned between two reference planes.

Because the signal trace is surrounded by dielectric material and reference planes, the electromagnetic field is more confined than in a typical microstrip structure.

This makes stripline attractive for applications requiring strong Signal Integrity, controlled impedance, and improved electromagnetic isolation.

Stripline can also provide a relatively predictable propagation environment because the signal is positioned between reference planes. However, it may require more careful PCB stack-up planning and manufacturing control.

Microstrip vs. Stripline

The choice between Microstrip and Stripline should be based on the requirements of the application rather than simply choosing one structure universally.

Microstrip is often preferred when:

• Easy routing is important
• External-layer access is required
• PCB manufacturing needs to remain relatively simple
• The design has moderate high-speed requirements

Stripline may be more suitable when:

• Strong EMI control is required
• Signal integrity is critical
• The design requires stable impedance
• High-speed signals need better electromagnetic isolation
• The PCB uses a multilayer stack-up with dedicated reference planes

In complex designs, both structures may be used within the same PCB.

The Importance of the Return Path

A transmission line is not only the signal trace. The return-current path is equally important.

At high frequencies, return current tends to follow the path of lowest impedance and generally remains close to the signal trace through the reference plane. If the reference plane is interrupted by a split, gap, or large void, the return current may be forced to take a longer path.

This increases the effective loop area and can lead to higher electromagnetic radiation, greater crosstalk, and degraded Signal Integrity.

Therefore, high-speed signal routing should maintain a continuous reference plane whenever possible.

When a high-speed signal changes layers through a via, designers should also consider how the return current transitions between reference planes. In some cases, strategically placed ground vias can provide a shorter and more controlled return path.

Impedance Control During PCB Stack-Up Design

Impedance control should begin before PCB routing.

During stack-up planning, engineers need to determine the relationship between the signal layer and its reference plane. The dielectric thickness, copper thickness, trace width, and dielectric constant must be coordinated to achieve the target impedance.

For example, a design may specify 50-ohm single-ended traces or 90-ohm or 100-ohm differential structures depending on the interface requirements.

The actual target impedance should always be determined by the electrical interface specification rather than applying a single value to every PCB.

In addition, the PCB manufacturer’s manufacturing capability should be considered. Material thickness variation, copper etching, dielectric tolerance, and trace-width variation can all affect the final impedance.

Impedance Discontinuities Caused by Vias

Vias are frequently used in multilayer PCB designs to connect signals between different layers. However, a via is not electrically invisible.

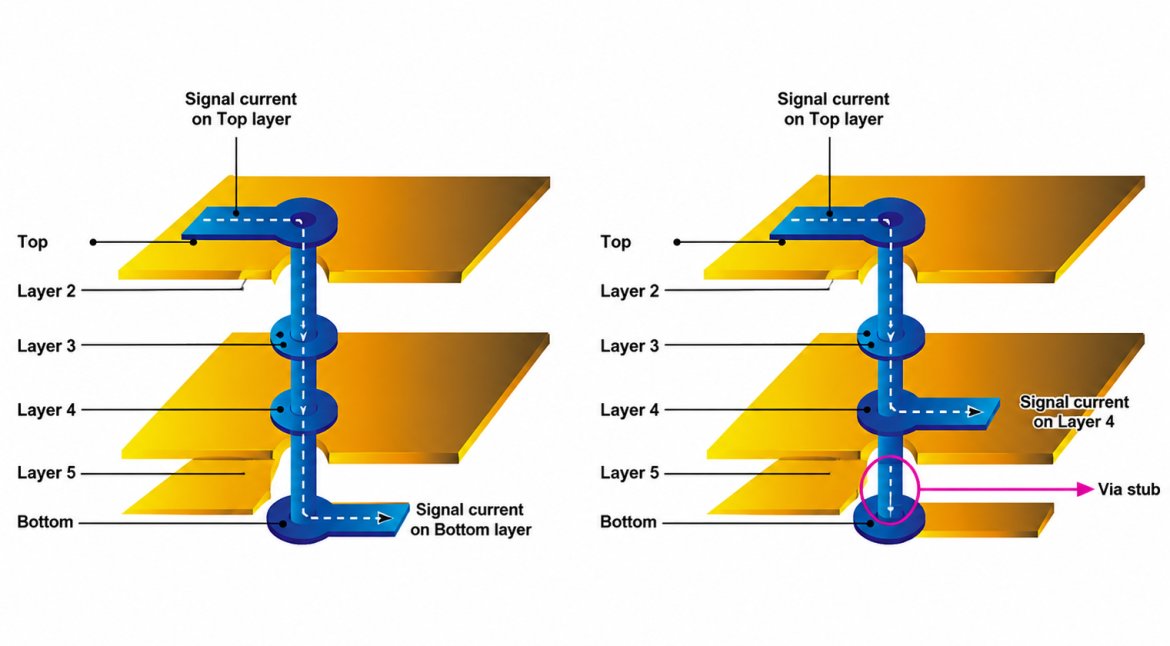

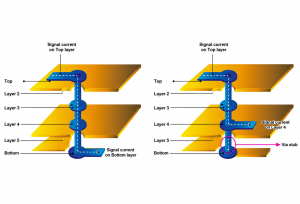

A high-speed via can introduce parasitic capacitance and inductance. Its unused barrel section, commonly referred to as a via stub, can also create an impedance discontinuity.

For very high-speed signals, designers may need to consider:

• Via diameter
• Pad size
• Anti-pad size
• Via stub length
• Back-drilling
• Reference-plane transitions
• Ground-via placement

Optimizing these parameters can reduce discontinuities and improve overall Signal Integrity.

Transmission Line Effects in High-Speed Interfaces

Modern electronic products increasingly use high-speed interfaces to transfer large amounts of data. Examples include USB, PCI Express, Ethernet, DDR memory, high-speed ADC/DAC interfaces, and various SerDes architectures.

As data rates increase, the available timing margin becomes smaller. A PCB design that works correctly at a lower data rate may experience significant signal-quality problems after the interface speed is increased.

Typical symptoms include:

• Eye diagram closure
• Increased jitter
• Overshoot and undershoot
• Ringing
• Data errors
• Timing violations
• Increased EMI

These problems demonstrate why transmission-line analysis should be incorporated into the PCB design process at an early stage.

Simulation and Verification

For complex High-Speed PCB Design, simulation can be used to evaluate transmission-line behavior before physical prototypes are manufactured.

Engineers can analyze:

• Impedance
• Reflection
• Insertion loss
• Return loss
• Crosstalk
• Propagation delay
• Eye diagrams
• Timing margins

Simulation results can then be used to optimize the PCB stack-up and routing constraints.

After routing, the design should also undergo design-rule checking and, when required, post-layout signal-integrity analysis. This approach helps identify potential problems before PCB fabrication and reduces costly redesigns.

Kingda’s Approach to High-Speed PCB Manufacturing

For high-speed PCB projects, Kingda recommends considering electrical design and manufacturing capability together.

Controlled impedance is not determined by PCB layout alone. It depends on the relationship between PCB materials, stack-up construction, copper thickness, trace geometry, dielectric thickness, etching capability, and manufacturing tolerances.

By evaluating these parameters during the early design stage, Kingda can help customers establish practical impedance requirements and improve manufacturing consistency.

For demanding applications, the PCB design should also consider the component package, connector structure, via design, differential-pair routing, reference-plane continuity, and assembly requirements.

Conclusion

Understanding the Transmission Line is fundamental to modern High-Speed PCB Design. As signal edge rates continue to increase, PCB traces can no longer be treated simply as ideal wires.

Characteristic Impedance, Propagation Delay, return-current paths, PCB stack-up, via structures, and transmission-line geometry all have a direct influence on Signal Integrity.

By selecting appropriate Microstrip or Stripline structures, maintaining continuous reference planes, controlling impedance, minimizing discontinuities, and performing simulation and verification when necessary, engineers can significantly improve the reliability of high-speed electronic systems.

For PCB manufacturers, high-speed performance also depends on manufacturing consistency. Close coordination between PCB design requirements and actual production capabilities is therefore essential for achieving stable impedance, predictable electrical performance, and reliable mass production.

As electronic products continue to become faster, smaller, and more integrated, transmission-line analysis and impedance-controlled PCB manufacturing will play an increasingly important role in developing reliable next-generation electronic systems.
