Even after PCB design optimization and process control are completed, high-volume ENIG PCB production still requires systematic inspection and validation to prevent nonconforming boards from entering assembly. Gold thickness uniformity is particularly important because many thickness variations cannot be identified through visual inspection alone.

A PCB may have an acceptable appearance while still showing significant gold-thickness variation between the board edge, center, BGA regions, isolated pads, and large copper areas. If incoming inspection measures only one or two locations, localized deviations may remain undetected until SMT assembly produces wetting problems, abnormal solder joints, or reliability concerns.

For high-volume production, effective ENIG process control should therefore extend beyond plating parameters. A complete quality system should connect PCB design, surface-finish processing, measurement, reliability validation, incoming inspection, failure analysis, and supplier management.

1. Main Gold Thickness Inspection Methods for Different Applications

Different inspection methods provide different levels of information. XRF is suitable for fast production measurement, while metallographic cross-section analysis provides deeper information about the plating structure.

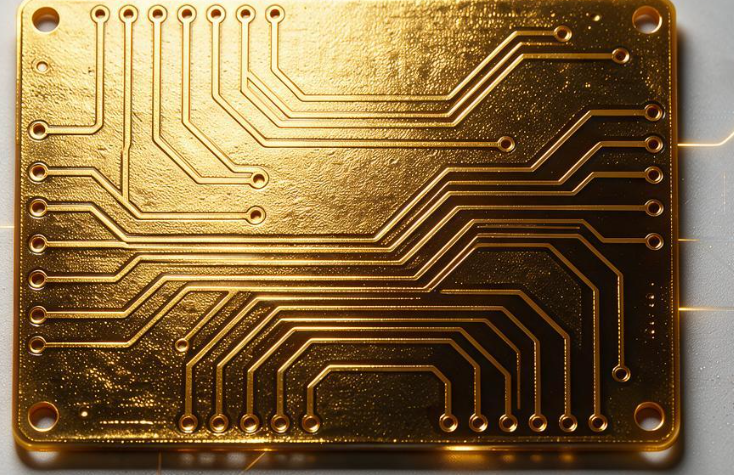

XRF Thickness Measurement for High-Volume Production

X-ray fluorescence (XRF) is one of the most widely used non-destructive methods for measuring the thickness and composition of PCB surface finishes. It is particularly suitable for production inspection because measurements can be performed rapidly without damaging the PCB.

For gold thickness measurement, however, a single XRF reading should not be treated as representative of the entire board. Measurement locations should be selected according to the PCB layout and plating-risk distribution.

Recommended measurement locations may include:

• Board edges and areas close to the panel boundary
• Board-center regions
• BGA pads and fine-pitch component areas
• Isolated small pads
• Large pads or large copper features
• Areas with significant differences in copper distribution
• Representative locations from different panel positions

The objective is not simply to obtain an average thickness value. The inspection data should also be used to evaluate the minimum and maximum values, distribution characteristics, and variation between locations.

For high-volume incoming inspection, the sampling plan should be defined according to product risk, supplier capability, customer requirements, and applicable specifications. Higher-risk products may require more measurement locations or increased sampling frequency.

If a significant difference is found between measurement points on the same PCB, the inspection scope should be expanded to determine whether the issue is localized or representative of the production batch.

Metallographic Cross-Section and SEM Analysis

XRF provides rapid dimensional measurement, but it does not fully reveal the microstructure or interface condition of the plated layers. Metallographic cross-section analysis can provide a more detailed view of the copper, nickel, and gold structure.

Cross-sectional analysis can help evaluate:

• Actual nickel and gold layer thickness
• Continuity of the gold layer
• Local plating defects
• Surface or interface discontinuities
• Nickel-layer corrosion
• Abnormal interface morphology
• Potential evidence associated with black-pad-type defects

Scanning electron microscopy (SEM) can further improve the resolution of microstructural observations. Energy-dispersive X-ray spectroscopy (EDS) can be used when elemental analysis is needed to help distinguish different materials or contamination sources.

Because cross-section analysis is destructive, it is generally more appropriate for prototype validation, pilot production, reliability studies, periodic audits, and ENIG failure analysis rather than 100% inspection.

When XRF data show abnormal variation or SMT assembly reveals unexpected wetting or solder-joint behavior, cross-section analysis combined with SEM/EDS can help determine whether the problem is simply a thickness deviation or whether a deeper nickel/gold interface problem is involved.

Visual Inspection as a Supporting Method

Visual inspection remains useful for identifying obvious surface defects, but it should not be used as the primary method for determining gold thickness.

Gold color can vary because of lighting conditions, surface morphology, nickel characteristics, imaging conditions, and the formulation and processing of the surface finish. Boards with similar measured thickness can therefore have noticeably different visual appearances.

Visual inspection should focus on issues such as:

• Missing plating
• Exposed copper
• Stains and contamination
• Scratches
• Surface discoloration
• Uneven or damaged pads
• Obvious plating defects

Actual gold thickness measurement should rely on calibrated instrumentation rather than visual color judgment.

2. Reliability Validation for High-Volume ENIG Production

Meeting a specified gold-thickness value does not automatically mean that the complete surface-finish system has passed reliability requirements. Thickness is only one characteristic of the nickel/gold structure.

A comprehensive validation program should consider solderability, thermal exposure, environmental conditions, solder-joint behavior, and interface reliability.

Solderability Testing

Solderability testing can be performed according to the applicable industry or customer specification, such as J-STD-002 where appropriate.

The purpose is to evaluate whether representative PCB pads can achieve acceptable solder wetting under defined test conditions. Multiple locations should be considered when the objective is to evaluate the effect of spatial variation.

The test method, solder alloy, flux, preconditioning, thermal profile, and acceptance criteria should be specified for the actual application rather than assumed to be identical for every product.

Environmental and Accelerated Aging Tests

Environmental testing can help determine whether the surface finish maintains acceptable performance during storage and service exposure.

Depending on the product application, relevant tests may include:

• Temperature and humidity exposure
• Accelerated aging
• Sulfur-related environmental testing
• Moisture preconditioning
• Thermal exposure
• Other application-specific environmental tests

These tests can reveal whether areas with relatively low plating thickness or poor surface protection are more susceptible to discoloration, oxidation, contamination, or solderability degradation.

Solder-Joint Strength Testing

After SMT reflow, solder-joint mechanical testing can be used to evaluate whether variations in the surface finish are associated with changes in joint strength.

For suitable components, testing may include solder-joint pull or shear testing. Results should be analyzed together with component type, pad geometry, solder alloy, reflow profile, and failure mode.

The purpose is not simply to compare numerical strength values but to determine whether there is a meaningful relationship between gold thickness uniformity and solder-joint behavior.

Thermal Cycling and Interface Analysis

For products exposed to repeated temperature changes, thermal cycling can be included in the reliability program.

After thermal cycling, selected samples can be cross-sectioned to inspect the nickel/gold interface and solder-joint structure. This can help identify interface degradation that may not be visible during initial inspection.

A key principle is to validate the complete surface-finish system rather than relying only on the initial XRF thickness result.

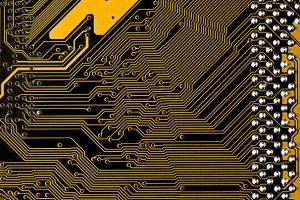

3. Failure Analysis Process for Gold Thickness Variation

When production data indicate excessive variation, a standardized ENIG failure analysis process can help identify the root cause more efficiently.

Step 1: Analyze XRF Measurement Data

First, organize XRF results according to board position, panel position, production time, and batch.

The objective is to determine whether the variation is:

• Systematic within one PCB
• Related to board-edge versus center locations
• Related to panel position
• Different from board to board
• Associated with a particular production period
• Random and localized

For example, if edge locations consistently show higher measurements while center locations are lower, the investigation should consider current distribution, fluid flow, agitation, panelization, copper distribution, and fixture configuration.

If thickness gradually decreases throughout a production period, chemical consumption, replenishment, bath condition, process timing, and production records should be reviewed.

If abnormal values occur randomly on isolated pads, the investigation should focus on copper surface preparation, activation, local contamination, masking, fixture contact, and other localized process factors.

Step 2: Perform Cross-Section Analysis

When thickness variation is significant or assembly failures occur, cross-section analysis can determine whether the issue is limited to gold thickness or accompanied by a deeper interface defect.

The analysis should examine the copper/nickel/gold structure and, when necessary, use SEM and EDS to investigate localized abnormalities.

If nickel corrosion or an abnormal interface is identified, simply extending or shortening the immersion-gold process may not solve the problem. The nickel-plating process, bath chemistry, immersion-gold chemistry, process timing, contamination, and maintenance records should be reviewed together.

Step 3: Review PCB Design and Panelization

PCB DFM review is an important part of root-cause analysis because plating uniformity can be influenced by the physical arrangement of copper features and panelized boards.

The investigation should consider:

• Copper distribution
• Large copper areas
• Isolated pads
• BGA regions
• Panel arrangement
• Tooling and fixture locations
• Dummy copper where appropriate
• Edge effects
• Board-to-board spacing
• Plating-area distribution

A manufacturing process may be stable while a particular panel design amplifies local plating variation. Therefore, design-related factors should not be excluded simply because the production equipment is operating within its normal process window.

Step 4: Review Production and Chemical Records

The final stage is to correlate measurement results with manufacturing records.

Relevant information may include:

• Nickel-plating records
• Immersion-gold bath analysis
• Chemical replenishment records
• Metal turnover or MTO records
• Bath maintenance records
• Equipment maintenance history
• Process temperature and timing
• Agitation or circulation conditions
• Fixture condition
• Previous abnormality records

This correlation can help determine whether the problem is related to process drift, equipment condition, chemical management, or PCB design.

4. Supplier Controls and Incoming Inspection Requirements

For high-volume ENIG PCB projects, relying solely on a supplier’s verbal assurance creates unnecessary quality risk. Critical surface-finish requirements should be documented in the PCB fabrication specification, quality agreement, or purchase documentation.

Define Measurable Plating Requirements

The specification should clearly identify the applicable:

• Nickel thickness requirement
• Gold thickness requirement
• Permitted thickness variation
• Measurement method
• Measurement locations or sampling approach
• Applicable standards
• Acceptance criteria
• Reliability requirements where applicable

Instead of specifying only an average value, customers should consider defining how spatial variation is evaluated.

Require Multi-Point Inspection Reports

Supplier inspection reports should provide sufficient measurement information to demonstrate process consistency.

A useful report may include:

• Production batch information
• PCB identification
• Measurement equipment
• Calibration status
• Measurement locations
• Individual measurement results
• Minimum and maximum values
• Statistical analysis where required

An average thickness alone may hide local abnormalities. Multi-point data provide a more useful picture of gold thickness uniformity.

Establish Clear Nonconformance Procedures

The purchasing and quality agreement should define what happens when plating requirements are not met.

Depending on the product and contractual requirements, actions may include:

1. Hold the affected lot.
2. Expand incoming inspection.
3. Request supplier root-cause analysis.
4. Perform additional cross-section or reliability testing.
5. Determine whether rework, sorting, deviation approval, or rejection is appropriate.
6. Implement corrective and preventive actions.

The disposition should be based on documented acceptance criteria rather than an informal decision made after the problem occurs.

Conduct Periodic Supplier Process Audits

For critical or high-volume products, periodic supplier audits can provide additional confidence in process capability.

The audit may review:

• Chemical management
• Equipment maintenance
• Measurement-system control
• Calibration
• SPC implementation
• Process-record traceability
• Bath analysis frequency
• Preventive maintenance
• Operator training
• Nonconformance management

The objective is to verify that the supplier has a controlled process rather than simply relying on final inspection to detect defects.

5. Practical Incoming Inspection Workflow

A structured incoming inspection process can be organized into four stages.

Stage 1: Documentation Review

Verify the supplier’s batch information, inspection report, material identification, surface-finish specification, and relevant certificates.

Stage 2: Multi-Point XRF Inspection

Use calibrated XRF equipment to measure representative locations across the PCB, including board edges, centers, BGA areas, isolated pads, and other risk-based locations.

Stage 3: Expanded Sampling When Abnormalities Are Found

If measurements exceed the specified limits or show unusual spatial variation, increase the sampling scope according to the quality-control plan and determine whether the issue is isolated or batch-wide.

Stage 4: Destructive Verification for Critical Lots

For prototypes, pilot runs, major process changes, high-risk products, or abnormal production lots, perform cross-section analysis and selected reliability testing where required.

This approach balances inspection efficiency with risk control and prevents the incoming inspection process from becoming dependent on a single measurement point.

6. Building a Closed-Loop Gold Thickness Control System

A reliable ENIG process control system should connect five major stages:

PCB DFM optimization → pilot-production validation → mass-production SPC → incoming multi-point inspection → failure analysis and continuous improvement

Each stage has a different function.

• PCB DFM reduces design-related plating risks before manufacturing.
• Pilot production verifies the actual process capability and measurement distribution.
• Mass-production SPC monitors process stability and detects drift.
• Incoming inspection provides an independent verification layer.
• ENIG failure analysis identifies root causes when abnormalities occur and feeds corrective actions back into design and manufacturing.

This closed-loop model is more effective than simply increasing final inspection frequency. The goal is to prevent variation, detect process drift early, and establish traceable corrective actions.

7. Key Factors for Maintaining Gold Thickness Uniformity in Mass Production

For large-volume projects, gold thickness uniformity should be treated as a system-level manufacturing requirement rather than an isolated plating parameter.

The major control points include:

1. PCB design and panelization — optimize copper distribution and plating-area balance.
2. Chemical management — maintain stable nickel and immersion-gold bath conditions.
3. Equipment control — maintain reliable circulation, agitation, fixtures, temperature control, and process timing.
4. Measurement capability — use calibrated XRF systems and risk-based multi-point sampling.
5. Cross-sectional verification — periodically verify the actual plating structure.
6. Reliability testing — evaluate solderability and environmental or thermal performance according to application requirements.
7. SPC monitoring — identify process drift before it becomes a batch-level problem.
8. Supplier management — establish documented specifications, inspection requirements, traceability, and corrective-action procedures.

Conclusion

Consistent gold thickness uniformity in high-volume ENIG production cannot be guaranteed by visual inspection or a single XRF measurement. The actual quality of the surface finish depends on the interaction between PCB design, panelization, plating chemistry, equipment, measurement methods, reliability validation, and supply-chain management.

A robust ENIG PCB quality system should therefore combine multi-point XRF inspection with cross-sectional analysis, application-specific reliability testing, statistical process control, incoming inspection, and standardized ENIG failure analysis.

By integrating these controls into a closed-loop manufacturing system, manufacturers and purchasers can detect plating variation earlier, reduce SMT-related risks, improve traceability, and establish more stable quality performance for high-volume production.
